Multihead Weigher

Clean Cup Scale

Clean Cup Scale enhances production capacity and reduces raw material waste. Its unique level-off shutters enable effective weighing for difficult-to-handle sticky products.

contact-us

Ideal for highly sticky product

For Weighing Sticky Foods

Level off-type cups and shutters are made of special plastic. Suited to highly sticky wet products.

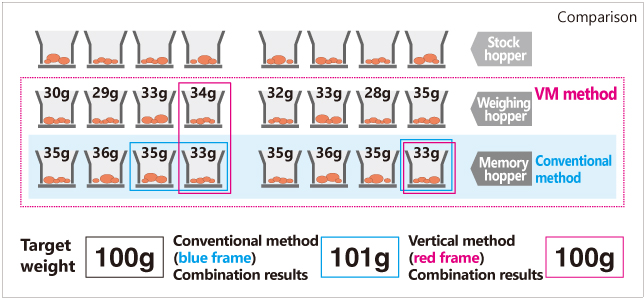

VM weighing method improves yield

VM method combining weighing hoppers and memory hoppers increases the number of combinations close to the target weight, contributing to yield improvement.

Easy Cleaning

The parts contacting with food are all removable without any tool.

Introducing the automatic feeder option

With the Clean Cup Scale alone, operators were required to supply raw materials placed on the working table into each feeder (according to the number of channels) manually.
By integrating the automatic feeder into the upstream of the Clean Cup Scale, operations needed to complete by human labor can be automated, resulting in further reduce the need for human operator.

Mechanism of the Automatic Feeder

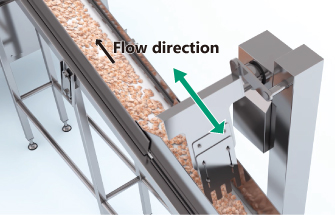

Products are carried on the inclined conveyor while leveling it evenly.
Product can be supplied by regular conveyor as well as Z-conveyor and bucket conveyor.

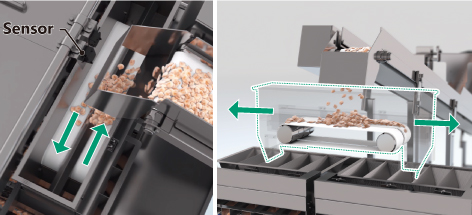

Two inversion belts in the shuttle part divide the product left and right, distribute and supply products to all cups.
Feeding amount is monitored by the sensor and automatically adjusted by intermittent operation.

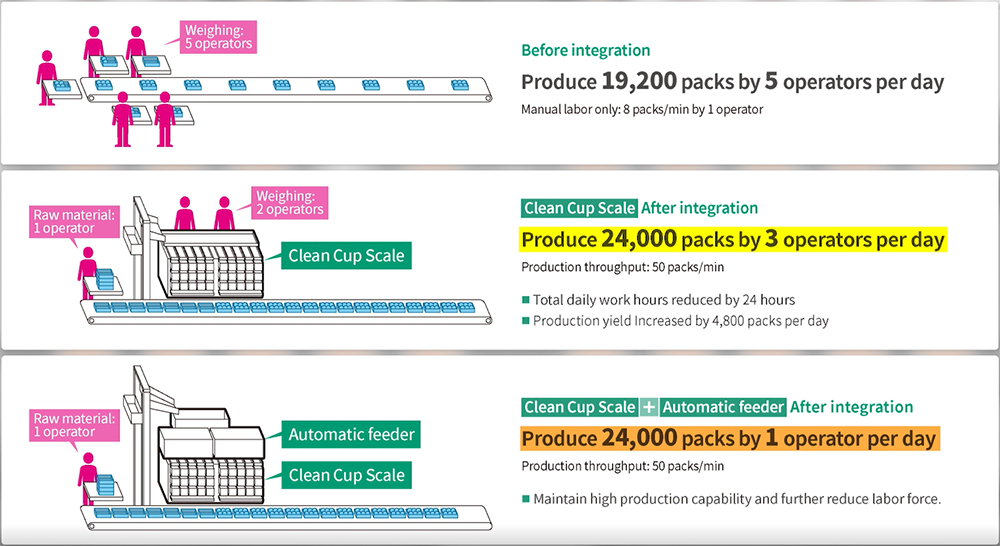

Benefits of having the Clean Cup Scale introduced into your factory.

With the Clean Cup Scale alone, it requires 3 operators to produce 24,000 packs/day.
When installing the automatic feeder with the Clean Cup Scale, it requires 1 operator to produce 24,000 packs/day.

Overview
Library

$name

Features
Description

Level off-type cups and shutters are made of special plastic. Suited to highly sticky wet products.

Weighing range: 5 to 500 g / 5 to 1000 g
Accuracy: 0.5 to 3 g
Maximum speed: 80 packs/min, 45 + 45 packs/min (Twin)

Library

Brochure

Brochure	Release Date
Automatic Feeder Option	1/04/2022
Automatic Combination Weigher Clean Cup Scale Brochure	1/06/2023

IMAGES

VIDEOS

Clean Cup Scale with Automatic Feeding System
By integrating the Automatic Feeding System into the Clean Cup Scale (Multihead Weigher), you can save a lot of workload and labor costs.

Clean Cup Scale Introduction
Introduction of Anritsu Clean Cup Scale. It's a perfect weighing solution for wet and sticky products, while saving labor and increase productivity in your production.
