Dynamic weighing solution for ultra-fast packaging line
Checkweigher AW9 Series Ultra-Fast Type
When Ultra-Fast Packaging Meets High-Precision Weighing
Against the backdrop of soaring raw material costs, a declining workforce, and intensifying competition, food and pharmaceutical manufacturers are required to further improve productivity. Under these circumstances, there is a growing demand for packaging speeds exceeding 600 packs/min.
Anritsu's latest checkweigher, AW9 Series Ultra-Fast Type has achieved a world-leading checkweighing speed of maximum 1,000 products/min. It can now be introduced into high-speed packaging lines, which was previously difficult to handle, contributing to improved productivity.

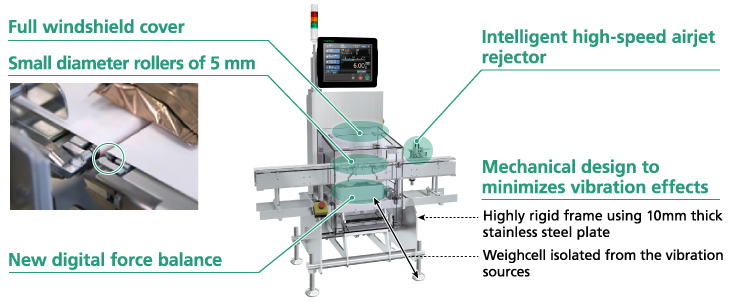

Advantages of Checkweigher AW9 Series Ultra-Fast Type
New Digital Force Balance
The new force balance load cell with improved performance and digital vibration control achieve the highest weighing accuracy of ±0.006g even on high-speed lines where vibration effects occur.
Small Diameter Rollers
Small diameter rollers with a diameter of 5 mm allow for stable conveyance of even small products.

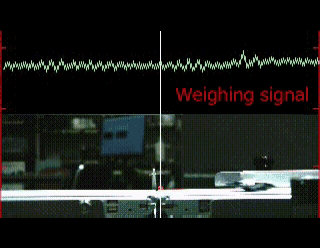

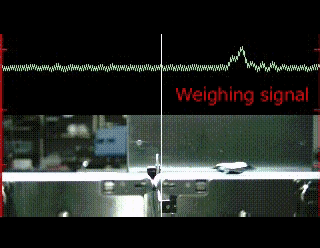

Conventional model
AW9 Ultra-Fast
Automated Reject Timing Setting
Equipped as standard with a high-speed air jet rejector that offers accurate rejection even at 1000 products/minute.
The optimal rejection timing is automatically set by simply inputting the product length and belt speed.
In addition, even in cases where conveyance is disrupted during transfer between conveyors, the "Reject Timing Correction Function" detects the position of the product once it is on the rejection conveyor and corrects the timing to ensure accurate rejection.
Here, you can watch how the function works in the video below.
Installation examples on high-speed packaging lines
You can watch a demonstration video showing the checkweigher is integrated in high-speed packaging lines.
Related Products
AW9 Series Ultra-Fast Type
Anritsu's flagship checkweigher compatible with ultra-high-speed packaging lines.
