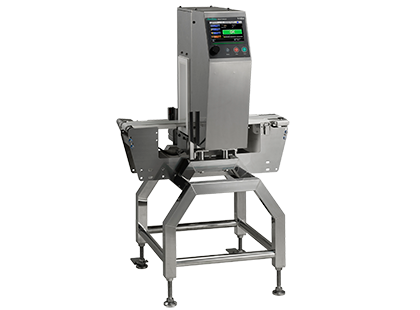

Metal Detector

Vertical model

M6-h Series Vertical Type is suitable for tall products in containers, such as beverages and seasonings in glass and plastic bottles.

contact-us

Overview
Detection Areas

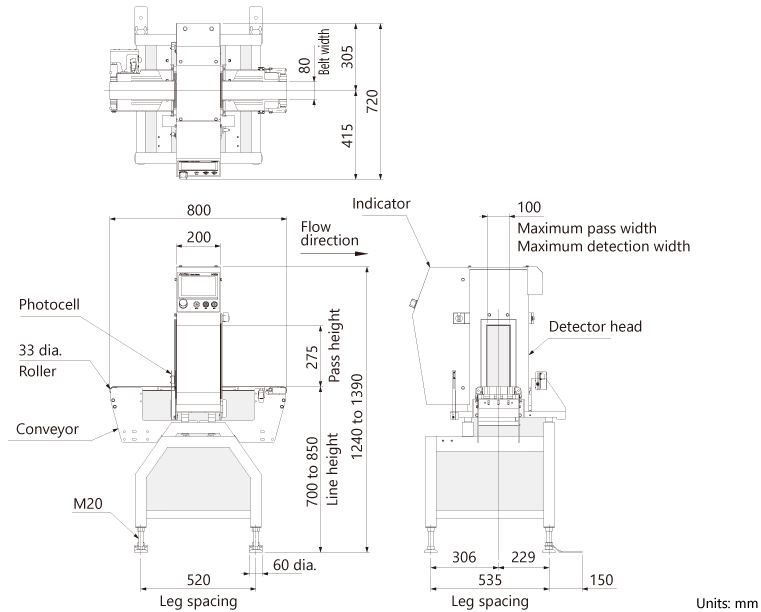

External Dimensions
Specifications
Library

Overview

Features
Description

For tall products in containers such as beverages and seasonings in glass and plastic bottles.

Dual-frequency system
Maximum pass width: 70 to 140 mm
Protection class: IP66 / IP30

Detection Areas

Each series features a variety of detection areas to suit a wide range of products. For details of specifications, please submit an online inquiry form.

		Pass height (mm)
Non-waterproof type Waterproof type		190 185	280 275	430 425
Pass width (mm)	70	◎	◎	◎
	100	◎	◎	-
	120	◎	◎	◎
	140	-	◎	-
	150	-	-	◎
	170	-	◎	◎
	200	-	◎	◎

Related Links

Specifications

Model		KDS3008ABWT
Pass height		275 mm
Maximum pass width		100 mm
Belt width		80 mm
Display		7-inch color TFT LCD
Operation method		Touch panel (Start, Stop, and Home are direct push buttons)
Preset memory		Maximum 200
Product packaging		Both general and aluminum-evaporated film packaged products
Detection method		Simultaneous 2-frequency magnetization detection method
Belt speed		5 to 90 m/min (variable speed depending on Product No.)
Maximum product weight ¹		5kg [ABWT (waterproof) types can support up to 15 kg. However, the belt speed is 5 to 49 m/min]
Metal detection		Rejection signal output and beep, or belt stop and beep
Power supply		100 Vac to 240 Vac +10% –15%, single phase, 50/60 Hz
Power consumption		200 VA, rush current 50 A (typ.) (20 ms or less)
Mass		104 kg
Environmental conditions		0°C to 40°C, relative humidity 30% to 85%, non-condensing
Protection class		IP66 compliance
Exterior		stainless steel (SUS304)
Data output		USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)

1: Sum total of product weight on the conveyor.
Note: The shape and size (length, width and height) of products to can be inspected depend on the rejector type.
Note: The noise level of the metal detectors does not exceed 70 dB (A).
