Metal Detector

Entry model [M5 series]

M5 Series Metal Detector is simple, easy to use and is suitable for those who introduce metal detector for the first time in their production lines.

contact-us

Simplified operation. Equipped with the stabilizing technology, HRDSP.

Intuitive touch screen operation

Simple One-Step Operation
Easily navigated one-touch operation for the frequently used functions.

Minimize False Rejects
Built-in troubleshooting screens determine the cause of false rejects and provide suggestions to ensure repeatable, stable system performance.

Improved Troubleshooting and Help Screens
Accurate illustrated Help messages minimize production line downtime by reducing the need for outside service support.

High Reliable Digital Signal Processing

Increased temperature stability
Reduced false rejects caused by exterior sources
Improved self-diagnostic abilities

Hygienic Design

The top of detection head has a flat surface, preventing the accumulation of dirt or dust.

The top of detection head has a flat surface

Open-frame construction prevents product build up and facilitate fast and easy clean-up and sanitation.

Open-frame construction

High sensitivity and High stability

Anritsu's proprietary dual-frequency design determines the optimal settings to maximize sensitivity for both ferrous and non-ferrous metals.
For details ＞

Overview
Detection Areas

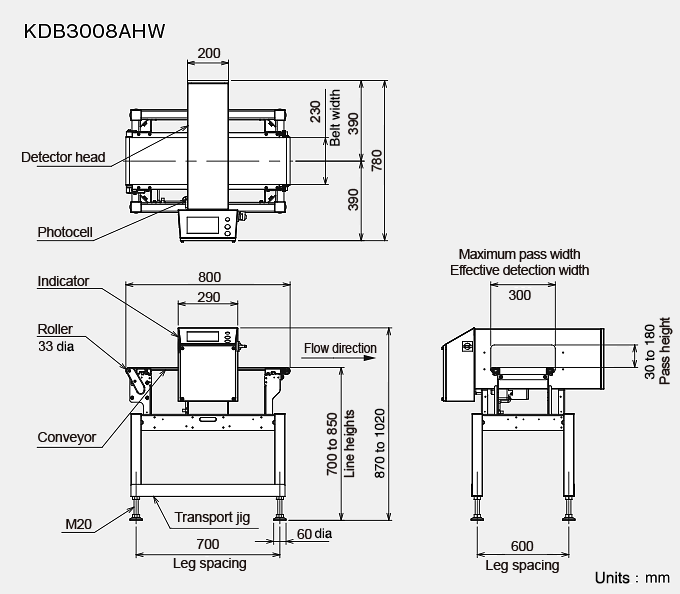

External Dimensions
Specifications
Library

Overview

Features
Description

Simplified operation. Equipped with the stabilizing technology, HRDSP.

Dual-frequncy system
Detection sensitivity: Fe sphere 0.3 mm dia. / SUS sphere 0.6 mm dia.
Protection class: IP66 / IP30

Detection Areas

Each series features a variety of detection areas to suit a wide range of products. For details of specifications, please submit an online inquiry form.

		Pass height (mm)
		50	80	100	120	130	150	180
Pass width (mm)	300	◎	◎	-	◎	-	◎	◎
Pass width (mm)	450	◎	-	◎	-	◎	◎	◎

Related Links

Specifications

Model		KDB3008AHW
Pass height		80 mm
Maximum pass width		300 mm
Detection sensitivity¹	Fe sphere	0.4 mm dia
	SUS304 sphere	0.7 mm dia
Belt width		230 mm
Display		7-inch color TFT LCD
Operation method		Touch panel (Start, Stop, and Home are direct push buttons)
Preset memory		Maximum 200
Belt speed		25 m/min (50 Hz), 30 m/min (60 Hz)
Maximum product weight²		3 kg (Can support up to 10 kg as an option)
Power requirements^{3, 4}		100 Vac, single phase 50/60 Hz ; 110/115/120 Vac, single phase 60 Hz ; 200 Vac, single phase 50/60 Hz ; 220/230 Vac, single phase 50/60 Hz ; or 240 Vac, single phase 50 Hz. 160 VA, rush current 50 A (typ.) (20 ms or less)
Mass		76 kg
Environmental conditions		0° to 40°C, relative humidity 30% to 85%, non-condensing
Protection class		IP66 compliance
Exterior		Indicator and detector head: stainless steel (SUS304) Conveyor frame and stand AHF type: metal (coating) / AHW type: stainless steel (SUS304)
Data output		USB port as an option (USB2.0), Ethernet interface as an option (10BASE-T, 100BASE-TX)

1: Detection sensitivity for actual use may vary depending the type of contaminants, the physical property of product (temperature of goods, content, and shape).
2: Sum total of product weight on the conveyor.
3: Specify one of these power supplies for use when ordering.
4: Please use the rated voltage for the power supply voltage.
A rise of a temperature in the motor may occur when the variation width of the power supply voltage is large.
Conveyor torque may deteriorate when the power supply voltage is low.。
