For Pharmaceutical Industries

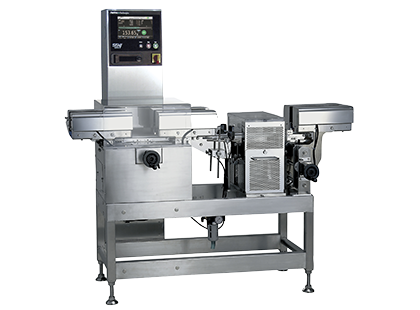

Small Bottle Checkweigher

This checkweigher enables stable conveyance and high‑precision weighing of products in small-diameter, slim bottles—such as eye drops, nasal drops, and cosmetics—that are prone to tipping over.

Achieving both stable conveyance and high-precision weight inspection.

This checkweigher enables stable conveyance and high‑precision weighing of products in small-diameter, slim bottles—such as eye drops, nasal drops, and cosmetics—that are prone to tipping over.

Stable transfer with side belt conveyor

A motor-driven side belt conveyor with a soft sponge belt supports smooth and stable transfer between conveyors.This ensures reliable conveyance of products in various shapes—square, round, or oval—that are difficult to transport while standing.The passage width can also be easily adjusted using the indicator.In the unlikely event that a product falls over, a sensor-based length detection function (optional) automatically detects the abnormality and force‑rejects the product.

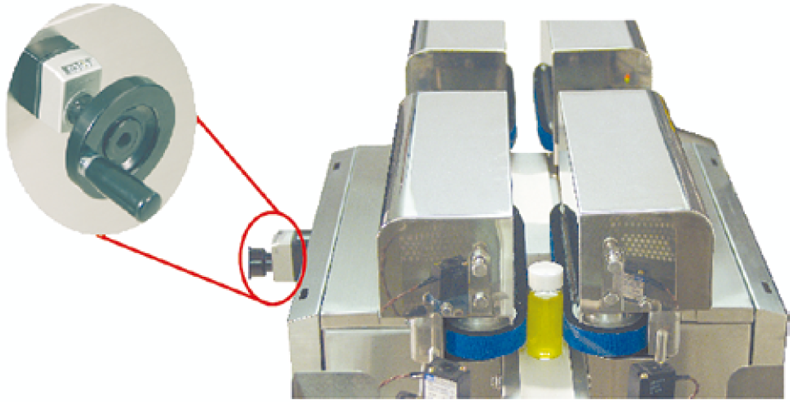

Fall prevention with side belt conveyor with indicator

Supports FDA 21 CFR Part 11 (Optional)

Audit trail

Operations history, production-related actions, and operation check results are recorded internally. These records can be used to monitor unauthorized or incorrect operations and analyze their causes.

Eligibility authentication (User management)

Access levels can be set individually for each user to prevent unauthorized operations and operator errors.

Data encryption and decryption

Various data—including statistical data and parameter data compliant with data-integrity requirements—can be securely exported.

Watch the video from the link below.

Video: Checkweigher for small diameter bottles

download brochure contact us

Checkweigher Product Page >

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

This checkweigher achieves stable transfer and high-accuracy measurement of products in small-diameter bottles such as eye drops, nasal drops, and cosmetics that fall over easily.

Proprietary developed force-balance load cell
Stable transfer with side belt conveyor
Easy-to-use control panel

External Dimensions

Related Links

Specifications

Model		KWS9223BPHB	KWS9223BPHB (Belt width 100 mm option)	KWS9223BPHC
Weighing range¹		1.2 to 600 g
Scale interval		0.01 g
Throughput²		Maximum 200 products/min /min
Accuracy (3σ) ²		Maximum ±0.02 g
Display		8.5-inch wide color TFT LCD
Operation method		Touch panel (Start, Stop, and Home are direct push buttons)
Indication range		600.9 g
Preset memory		Maximum 200
Classification		2 or 3
Product size³	Width	20 to 40 mm	20 to 100 mm (Optional)	20 to 40 mm
	Length	20 to 40 mm	20 to 100 mm (Optional)	20 to 40 mm
	Height	50 to 150 mm
Belt speed		15 to 60 m/min
Power requirements		100 Vac to 120 Vac +10% –15% or 200 Vac to 240 Vac +10% –15%, single phase, 50/60 Hz, rush current 40 A (typ.) (40 ms or less)
Power consumption		700 VA		550 VA
Air requirements		0.5 MPa to 0.9 MPa, 16ℓ/min [A.N.R.] for air jet rejector		Air supply not required (Air jet rejector not mounted)
Mass		135 kg		90 kg
Environmental conditions		0°C to 40°C (variation not to exceed 5°C/h to maintain accuracy), Relative humidity 30% to 85%, non-condensing
Protection class		IP30
Exterior		Stainless steel (SUS304)

1: Maximum weight capacity for KWS9223BPHB air jet rejector is 200 g. For heavier products, a flipper type rejector is recommended.
2: Accuracy and throughput depends on the application and the rejector.
3: Varies according to the rejector. Consult us when the product is transparent or semi-transparent.
Note: The noise level of this system does not exceed 70 dB(A). Note: Optional compliance with FCC Part 15 available.
