Checkweigher

Specific Application: Built-In Multi-Lane Weighing System

Anritsu's Built-In Multi-Lane Weighing Systems integrate high-precision weighing into existing production processes using a 30 mm load cell, achieving accuracy up to ±0.002 g.

High accuracy and stability

With its accumulated expertise in checkweighers, Anritsu has developed a new load cell that ensures high accuracy and repeatability with 30-mm-wide compact body.

30 mm slim design
±0.002 g weighing accuracy
Overload protection

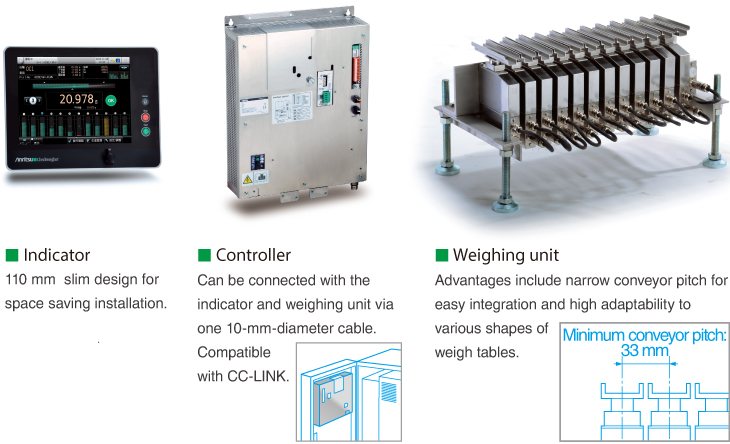

Compact design and simplified connection

The indicator, controller, and weighing unit come in compact design, which saves a valuable installation space.

All units can be connected via one cable, ensuring the ease of installation.

Compact design and simplified connection

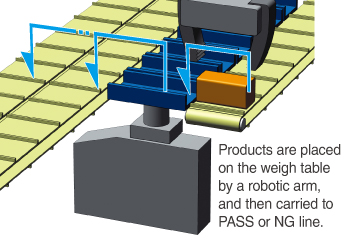

Robotic Arm Conveyor

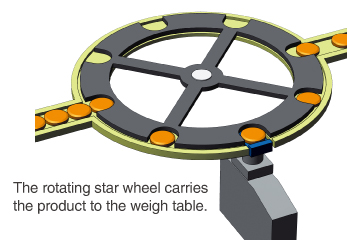

Star Wheel Conveyor

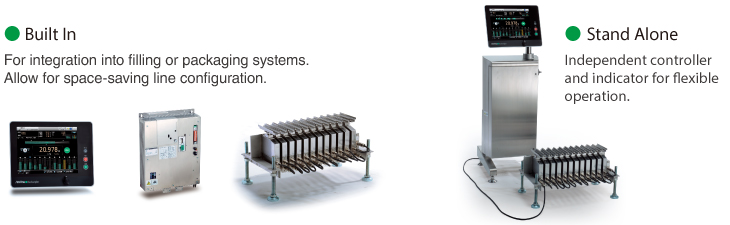

Product Range

DOWNLOAD BROCHURE CONTACT US

Solutions for pharmaceutical industries >

Checkweigher Product Page >

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

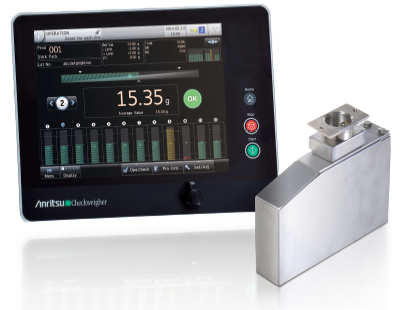

Anritsu's Built-In Multi-Lane Weighing Systems allow integration of high precision weighing capabilities into an existing production process with a 30mm-wide load cell which achieves a maximum accuracy of +/- 0.002 g.

Maximize production capacity
High accuracy and stability
Help fill level adjustment
Compact design and simplified connection

External Dimensions

Related Links

Specifications

＊ MID (Measuring Instruments Directive, 2014/32/EU) not complied.

Model ¹	KWS9006AN□□	KWS9006AP□□	KWS9005AN□□	KWS9005AP□□
Weighing range	0.1 to 50 g		0.2 to 100 g
Scale interval	0.001 g		0.01 g
Throughput ²	100 products/min per lane
Accuracy (3σ) ²	Maximum ±0.002 g		Maximum ±0.05 g
Display	15-inch color TFT LCD
Operation method	Touch panel (Start, Stop, Home are direct push bottons)
Indication range	50.090 g		100.90 g
Preset memory	Up to 50
Lane	Up to 12
Power requirements	100 Vac to 120 Vac +10% –15% or 200 Vac to 240 Vac +10% –15%, single phase, 50/60 Hz, rush current 12 A (typ.) (20 ms or less)
Power consumption	50 to 130 VA		30 to 80 VA
Mass	Indicator: 4 kg; Controller: 6 kg; Weighing unit: 1.5 kg; Controller chassis: 40 kg
Environmental conditions	0°C to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
Protection class	Indicator: IP50; Weighing unit: IP50
	Controller: IP20	Controller chassis: IP50	Controller: IP20	Controller chassis: IP50
Exterior	Indicator: SUS; Weighing unit: SUS
	Controller: aluminum	Controller chassis: SUS	Controller: aluminum	Controller chassis: SUS
Data output	USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)
External I/F	I/O contact or CC-Link, serial

1: □ indicates the number of lane.
2: Depends on the product to be weighed.
Note: The device complies with part 15 of the FCC Rules.

CC-Link is a registered trademark of CC-Link Partner Association (CLPA).
