For Pharmaceutical Industries

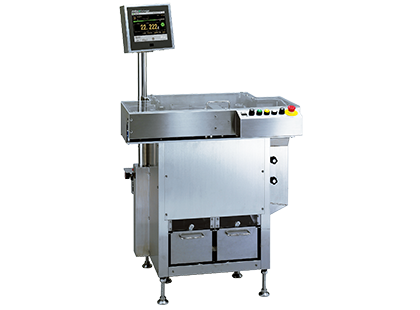

Inhalation Aerosol Checkweigher

A star wheel feeds inhalation aerosol to the weigh table at a constant speed and with a uniform spacing, achieving high speed weighing with a maximum accuracy of ±0.01 g.

100% In-line Inspection for Inhalation Aerosols

This checkweigher is designed for full in-line inspection of inhalation aerosol products. It supports inspection of gas-filled and powder-filled products, delivering high-speed, high-accuracy weighing with a sorting precision of ±0.01 g.

Stable Conveyance with Star Wheel System

The star wheel conveying system provides stable transport even for containers that are prone to tipping. Adjustments can be made from the top, making maintenance simple and efficient.

FDA 21 CFR Part 11 Compliance (Optional)

Supports the requirements of FDA 21 CFR Part 11, including user authentication, audit trails, and data encryption and decryption.

Watch the video from the link below.

Video: Checkweigher for Inhalation Aerosol

DOWNLOAD BROCHURE CONTACT US

Solutions for pharmaceutical industries >

Checkweigher Product Page >

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

A star wheel feeds inhalation aerosol to the weigh table at a constant speed and with a uniform spacing, achieving high speed weighing with a maximum accuracy of ±0.01 g.

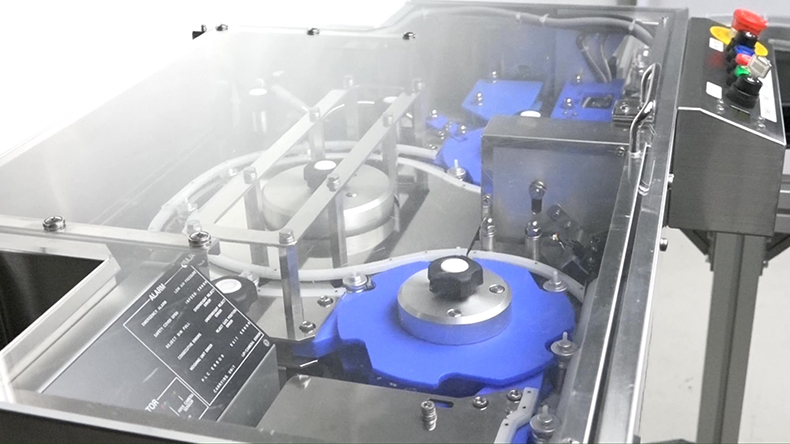

Stable Handling for High Accuracy
Validation Support Functions
Simple Interface and Reliable Operation Checks

External Dimensions

Related Links

Specifications

Model		KW9627AP00
Weighing range		0.5 g to 60 g
Maximum accuracy (3σ) ^{Note 1}		±0.01 g
Maximum speed		Maximum speed
Display		10.4-inch color TFT LCD
Operation method		Touch panel
Indication range		60.450 g
Scale interval		0.002 g
Preset memory		Maximum 100
Classification		3
Product size	Can size	21.5 mm dia./ 22.0 mm dia./ 23.5 mm dia./ 25.0 mm dia. ^{Note 3}
	Height	40 mm to 80 mm
Belt speed		14 m/min
Power requirements ^{Note 2}		100 Vac to 115 Vac +10% –15%, single phase, 50/60 Hz, 400 VA
Air requirements		0.4 MPa, 20ℓ/min [A.N.R.] (Use dry air.)
Mass		150 kg
Environmental conditions		0°C to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
Protection class		IP30 compliance
Exterior		Stainless steel (SUS304) (excluding some parts)

Note 1 : The accuracy varies according to the products to be weighed.
Note 2 : 200 Vac to 240 Vac (Optional).
Note 3 : Fixed by size, and cannot be shared. Contact our sales representatives for other sizes.
