X-ray Inspection System

Side View

This product has been discontinued

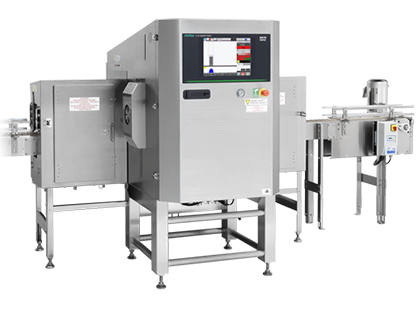

Anritsu Side View X-ray Inspection System is designed for the inspection of tall, rigid products such as pet bottles, gable top cartons, standing pouches, and cups.

contact-us

Tall Packaged Product Inspection

Anritsu's Side View applies the XR75's renowned detection to rigid and tall products.

Anritsu HD imaging technology is now available for upright products like cartons, foil-lined pouches, aseptic boxes, and PET bottles. HD imaging comes standard with all XR75 machines, providing outstanding detection of both high and low density contaminants as small as 0.5 mm*.
* Actual sensitivity depends on the physical properties of products (contents and shape) and on the conditions.

Installation example

The Side View X-Ray system with leakage prevention covers mounts over the existing conveyor.
*Leakage prevention covers on right and left sides of the side view x-ray system will be customized according to the shape of the existing conveyor.

Detection Examples

Juice in PET bottle

Potato chips in composite can

Ketchup in PET bottles

X-ray Product Top Page

Overview
Detection Areas
External Dimensions
Specifications
Library

Overview

Features
Description

The Side View X-ray Inspection System is designed for the inspection of tall, upright products including plastic bottles and milk cartons. It is a touchless (no curtains) system and mounts over your existing production line, eliminating jams and product handling issues.

For dry/wet products
Protection class ：IP66
X-ray output ： max.150W

Detection Areas

For details of detection areas, please submit an online inquiry form.

Model	Detection area
KXE7514BWELE

Related Links

Specifications

Model	KXE7514BWELE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 5.0 mA, output 12 to 150 W
Safety	Maximum 1.0 μSv/h or less, prevention of X-ray leakage by safety device
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Detection area¹	Maximum width: 150 mm, maximum height: 250 mm (290 mm is available as an option)
Preset memory	200
Corresponding belt speed²	10 to 120 m/min
Power requirements³	100 Vac to 240 Vac, single phase, 50/60 Hz, 700 VA or less
Mass⁴	540 kg
Environmental conditions	Temperature: 0°C to 35°C, relative humidity: 30% to 85%, non-condensing
Protection class	Inspection area: IP66 / Other parts: IP40
Casing material	Stainless steel (SUS304)

1: The product size should be within the detection area.
2: Since this model does not have the conveyor unit, it can be used with the existing conveyor at the above belt speed.
3: Allowable power fluctuation range is ±10%.
4: Mass without option (when using the system with straight extension covers. See the above external dimensions).
