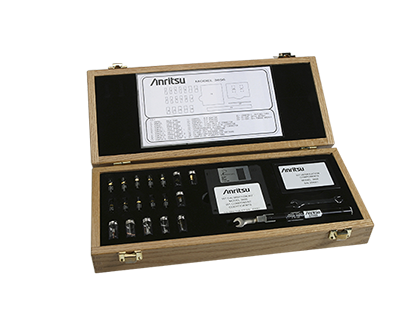

3656 Series W1 Calibration kit

W1 校準套件

3656

概述
資料庫

Overview

描述
功能

Anritsu 校準套件中包含校準 VNA 或 VNMS 所需的所有精密元件和工具，能夠對您所選的接頭類型進行 12 項誤差校正測量。如果需要，其中還包括校準陽性和陰性測試埠所需的組件。這些套件支援開路、短路和寬頻負載校準。

Model Number	Description	Details
3656	W1 Calibration Kit	23W50-1 Male Offset Short (2.02 mm) 23W50-2 Male Offset Short (2.65 mm) 23W50-3 Male Offset Short (3.180 mm) 23WF50-1 Female Offset Short (2.02 mm) 23FW50-2 Female Offset Short (2.65 mm) 23WF50-3 Female Offset Short (3.180 mm) 24W50 Male Open (1.510 mm) 24WF50 Female Open (1.930 mm) 28W50 Male Broadband Termination 28WF50 Female Broadband Termination 33WSC50 Fixed Male SC Connector 33WFSC50 Fixed Female SC Connector Interchangeable Slider, SC Connectors Locking Keys, SC Connectors 33WW50 Male-Male Adapter 33WWF50 Male-Female Adapter 33WFWF50 Female-Female Adapter 18WWF50-1B Stepped Impedance Thruline (Verification Device) 18WWF50-1 50 Ohms Matched Thruline (Verification Device) 01-504 6 mm Torque Wrench 01-505 6-7 mm End Wrench Calibration coefficients diskette
3656-3	W1 Connector, Calibration and Verification Kit, s1p data-based	Same as the 3656. s1p data included on the USB memory

Supports SOLT Calibration with Open, Shorts and Broadband Loads
Option 3 adds data-based calibrations

資料庫

資料表

資料表	發行日期
Calibration Kit Declaration of Conformity	2021/7/6

目錄

目錄	發行日期
Precision RF & Microwave Components Catalog	2022/2/22

使用者手冊

使用者手冊	發行日期
3656C W1 Calibration/Verification Kit and System Performance Verification Software User Guide	2021/10/1
3656B W1 Calibration/Verification Kit and 2300-584-R System Performance Verification Software User Guide	2019/8/29
