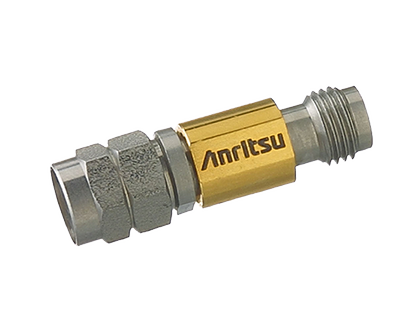

V265 DC Block

直流阻隔器

V265
Overview

The V265 and W265 DC Blocks have been designed and optimized for optical communications and other high speed pulse, data or microwave applications. Based on the coaxial resilient connection – which is the same as on our V255/W255xx Gen II Bias Tees – it provides excellent low frequency response with very low losses and flat group delay over the temperature of operation. Designed to apply AC drive signals to a device while eliminating any DC voltage or current components. Both the V265 and W265 DC Blocks can be used in isolating DC leakage between two electrical components. The blocks have precision V and W1 connectors for 65 GHz and 110 GHz operability assures excellent impedance match across the wide bandwidth available. A one-year warranty is provided.

  • 适用于光通信应用
  • 低插入损耗
  • 上升时间为 3 ps(典型值)
规格

V265 DC Block

频率范围

50 KHz ~ 65 GHz
30 KHz ~ 65 GHz(典型值)

插入损耗 1 dB — 65 GHz(典型值)
回损 13 dB — 65 GHz(典型值)
上升时间 3 ps(典型值)
组延时 84 ±2 ps(典型值)
最大直流电压 16 VDC
最大射频功率 1 W
接头

射频输入: V(f)
射频输出: V(m)

工作温度 0°C 到 80°C
