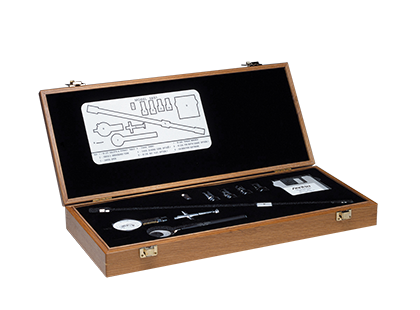

GPC-7 校准套件

3651 系列

概述
资料库

Overview

特征
描述

支持开路校准
支持短路校准
支持宽带负载校准
可选滑动终端

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads. Option 1 adds sliding terminations and a pin depth gauge where required.

Model Number

Description

Details

3651

GPC-7 Calibration Kit

28A50-2 Broadband Termination (2)
24A50 Open
23A50 Short
01-200 Torque Wrench
01-221 Collet Extractor Tool and 4 Collets
Calibration coefficients diskette

3651-1

GPC-7 Calibration Kit with sliding terminations

Adds:

17A50 Sliding Termination
01-210 Reference Flat
01-220 Pin Depth Gauge

资料库

综合产品手册

综合产品手册	发布日期
Precision RF & Microwave Components Catalog	2019/4/16

快速参考指南

快速参考指南	发布日期
365xx-x Mechanical Calibration Kits Reference Manual	2018/3/27

操作手册

操作手册	发布日期
VNA Calibration and Verification Kits 36xx Operation & Maintenance Manual	2003/8/4
