OSL Series Precision Open/Short/Load

Precision Open/Short/Load

OSL Series
Overview
  • Single Component providing full open, short and load reflection standards for accurate measurements
  • DC to 18 GHz frequency coverage
  • Type N(M) and N(F) connector configuration
  • 50 ohm Impedance
  • For use with:
    • Site Master
    • LMR Master
    • VNA Master
    • BTS Master
    • Cell Master
    • ShockLine VNAs

OSL Series Precision Open/Short/Load Calibration Components

Model

Description

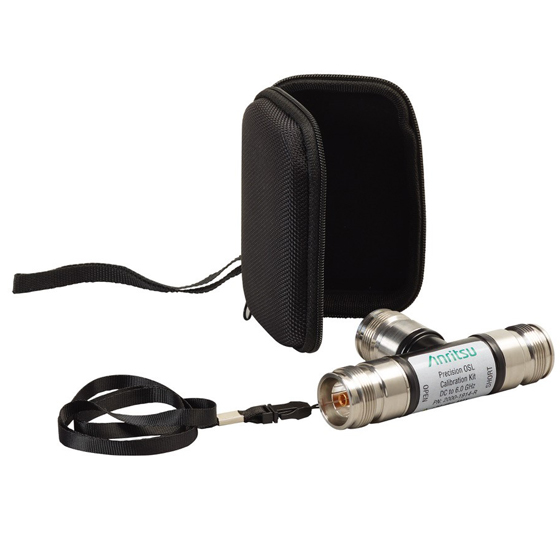

OSLN50-1

Precision N(m) Open/Short/Load, 42dB, 6.0 GHz, 50 Ω

OSLNF50-1

Precision N(f) Open/Short/Load, 42dB, 6.0 GHz, 50 Ω

OSLN50

Precision Open/Short/Load, DC to 18 GHz, N(m), 50 Ω

OSLNF50

Precision Open/Short/Load, DC to 18 GHz, N(f), 50 Ω

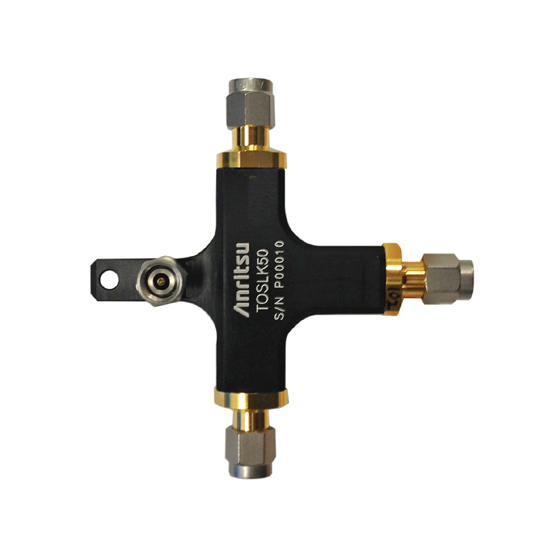

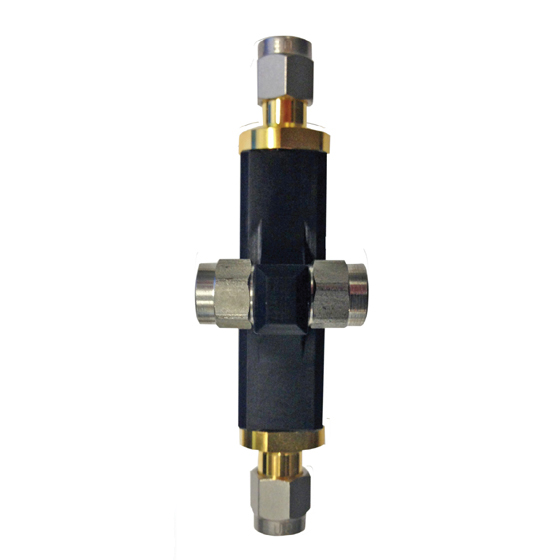

OSLK50

Precision Open/Short/Load, DC to 20 GHz, K(m), 50 Ω

OSLKF50

Precision Open/Short/Load, DC to 20 GHz, K(f), 50 Ω

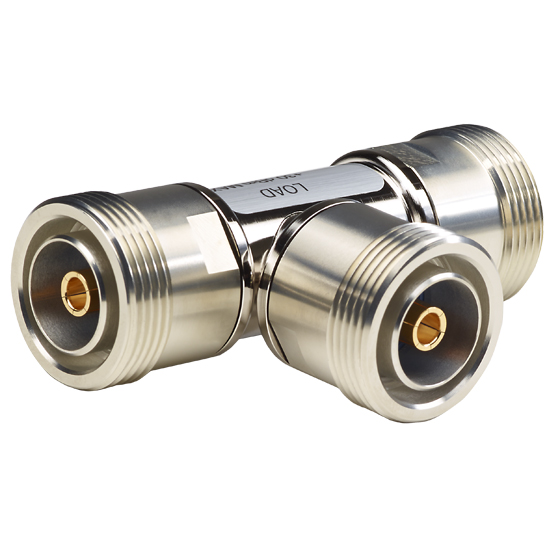

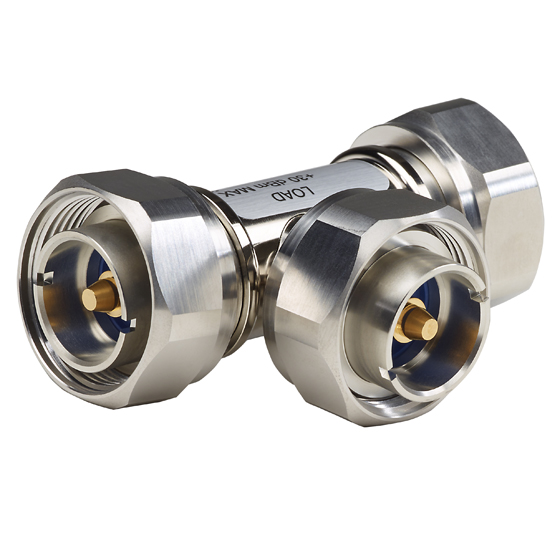

The OSL series open/short/load are used on the test port of both handheld and benchtop Vector Network Analyzers to establish a reference for accurate measurement. OSL series open/short/load come in both N(Male) and N(Female) connector configuration and consists of an open on one end, short on the other and load on the tee section.

OSL Cal Kits

High performance, full temperature Coaxial Calibration Kits

Model

Frequency Range

Connector

Through

RL Specification (load)

OSLN50A-8

DC — 8 GHz

N(m)

No

6/8 GHz ≥ 42/37 dB

OSLNF50A-8

DC — 8 GHz

N(f)

No

6/8 GHz ≥ 42/37 dB

OSLN50A-18

DC — 18 GHz

N(m)

No

6/9/18 GHz ≥ 42/37/33 dB

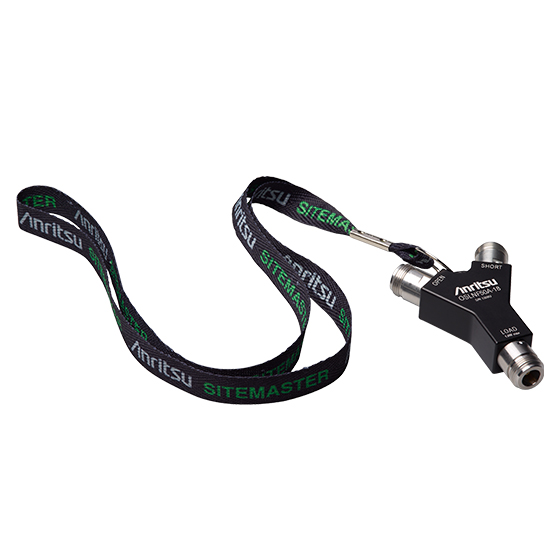

OSLNF50A-18

DC — 18 GHz

N(f)

No

6/9/18 GHz ≥ 42/37/33 dB

Discontinued Kits

Discontinued OSL Series Precision Open/Short/Load Calibration Components

Model

Description

OSLN50-1

Precision N(m) Open/Short/Load, 42dB, 6.0 GHz, 50 Ω

OSLNF50-1

Precision N(f) Open/Short/Load, 42dB, 6.0 GHz, 50 Ω

OSLN50

Precision Open/Short/Load, DC to 18 GHz, N(m), 50 Ω

OSLNF50

Precision Open/Short/Load, DC to 18 GHz, N(f), 50 Ω

OSLK50

Precision Open/Short/Load, DC to 20 GHz, K(m), 50 Ω

OSLKF50

Precision Open/Short/Load, DC to 20 GHz, K(f), 50 Ω
