3654D verification kit

V Connector Calibration Kit

3654D Series
Overview
  • Supports SOLT Calibration with Open, Shorts and Broadband Loads
  • Option 1 adds sliding loads
  • Option 2 removes the pin depth gauge
  • Option 3 adds data-based calibrations
  • Option 4 includes data-based calibrations and removes the pin depth gauge
  • A2LA accredited calibrations available

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads.

Model Number

Description

Details

3654D

V (1.85 mm) Calibration Kit


3654D cal kit provides 50 ohms calibrations for V devices.

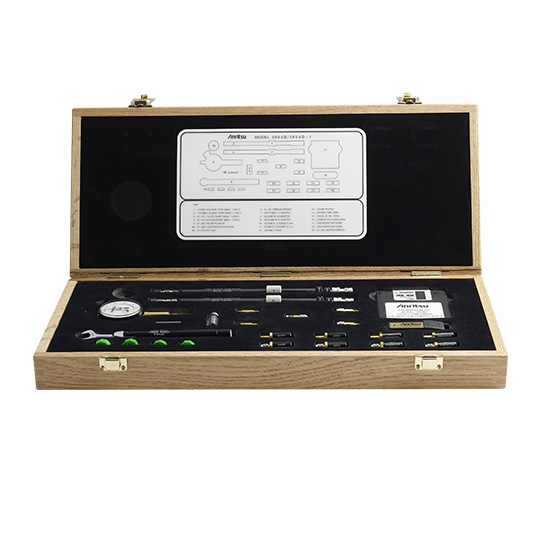

3654D Cal Kit contains:

  • 28V50D Termination V (male) (2)
  • 28VF50D Termination V (female) (2)
  • 24V50C Open V (male) (1)
  • 24VF50C Open V (female) (1)
  • 23V50C Short V (male) (1)
  • 23VF50C Short V (female) (1)
  • 33VV50C Adapter, V (male) to V (male) (1)
  • 33VFVF50C Adapter, V (female) to V (female) (2)
  • 33VVF50C Adapter, V (male) to V (female) (2)
  • 01-201 Torque Wrench 8 mm (5/16 in), (1)
  • 01-204 Wrench, Universal For SMA, 3.5 mm, 2.4 mm, K, and V Connectors (1)
  • 01-322 Pin Depth Gauge (1)
  • 01-323 Adapter (female) for Pin Gauge (1)
  • 01-210 Reference Flat (1)
  • A18311 Connector Thumb Wheel (4)
  • Coefficients for standards Provided on a USB memory device and 3.5 in floppy disk

3654D-1

V (1.85 mm) Calibration Kit
with Sliding Loads


3654D-1 cal kit includes Sliding Loads.

3654D-1 Cal Kit adds:

  • Sliding Termination V (male) (1) 17V50C
  • Sliding Termination V (female) (1) 17VF50C
  • Flush Short (male) (1) 01-312
  • Flush Short (female) (1) 01-311


3654D-2 V Connector (1.85 mm) Calibration Kit, no pin depth gauge Same as the 3654D but without the 01-322 pin depth gauge
3654D-3 V Connector (1.85 mm) Calibration Kit, with pin depth gauge, s1p data-based Same as the 3654D. s1p data included on the USB memory
3654D-4 V Connector (1.85 mm) Calibration Kit, no pin depth gauge, s1p data-based Same as the 3654D. s1p data included on the USB memory. No 01-322 pin depth gauge.
