3656 Series W1 Calibration kit

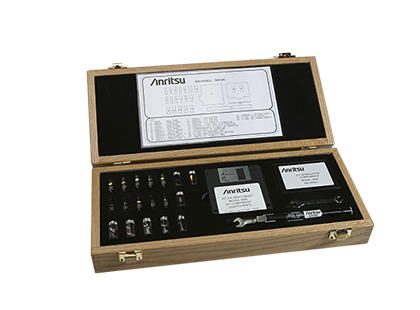

W1 Calibration kit

3656
Overview

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads.

Model Number Description Details
3656 W1 Calibration Kit 23W50-1 Male Offset Short (2.02 mm)
23W50-2 Male Offset Short (2.65 mm)
23W50-3 Male Offset Short (3.180 mm)
23WF50-1 Female Offset Short (2.02 mm)
23FW50-2 Female Offset Short (2.65 mm)
23WF50-3 Female Offset Short (3.180 mm)
24W50 Male Open (1.510 mm)
24WF50 Female Open (1.930 mm)
28W50 Male Broadband Termination
28WF50 Female Broadband Termination
33WSC50 Fixed Male SC Connector
33WFSC50 Fixed Female SC Connector
Interchangeable Slider, SC Connectors
Locking Keys, SC Connectors
33WW50 Male-Male Adapter
33WWF50 Male-Female Adapter
33WFWF50 Female-Female Adapter
18WWF50-1B Stepped Impedance Thruline (Verification Device)
18WWF50-1 50 Ohms Matched Thruline (Verification Device)
01-504 6 mm Torque Wrench
01-505 6-7 mm End Wrench
Calibration coefficients diskette
3656-3 W1 Connector, Calibration and
Verification Kit, s1p data-based
Same as the 3656.
s1p data included on the USB memory
  • Supports SOLT Calibration with Open, Shorts and Broadband Loads
  • Option 3 adds data-based calibrations
