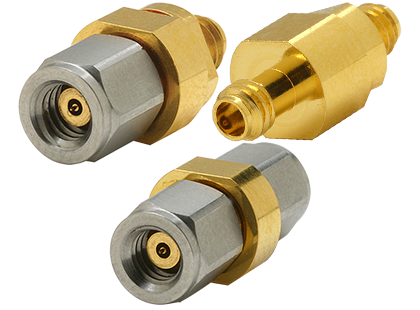

The 33 series precision W1 adapters enable accurate measurements with the Anritsu W1 Connector (1.0 mm connector) at a broad frequency range of up to 125 GHz. The 33 series W1-W1 adapters are available in three connector configurations: Male-Male, Male-Female, and Female-Female. W1 adapters have an air dielectric interface and a center conductor that is supported by a low loss PPO® plastic bead. When used as connector savers with test ports in test systems, these adapters protect the test port by reducing the number of connections.
| Model |
Description |
|
33WW50A
|
W1 Male to Male Adapter (1 millimeter to 1 millimeter)
|
|
33WWF50A
|
W1 Male to Female Adapter (1 millimeter to 1 millimeter)
|
|
33WFWF50A
|
W1 Female to Female Adapter (1 millimeter to 1 millimeter)
|
