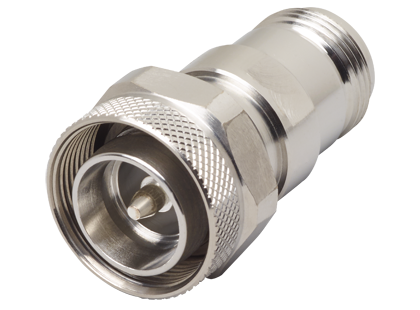

Adapter, DC to 6 GHz, 4.3-10(m) to N(f), 50 Ohm

1091-467-R
overview

Male to female adapter, usable from DC to 6 GHz. Robust design with exceptional PIM performance across cellular or wireless frequency ranges. They support applications in cellular or wireless, tower or in-building as well as production or laboratory measurements using many of the Anritsu handheld instruments.

Frequency (GHz) VSWR Return Loss (dB) Insertion Loss (dB)
DC – 4 GHz 1.15 Max 23 0.10 Max
4 GHz – 6 GHz 1.20 Max 21 0.15 Max

Great for use in the following application:

  • Cellular or Wireless
  • Tower or in-building
  • Production or laboratory
Operational from DC – 6 GHz
Robust design for long product life
Low Insertion Loss
Exceptional PIM performance across cellular or wireless frequency range
