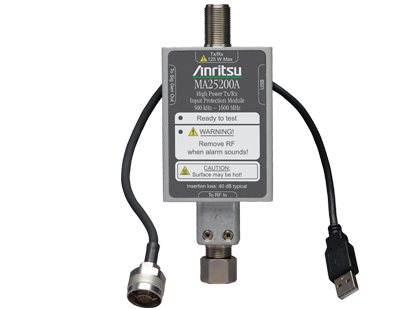

The MA25200A high power protection module safeguards the S412E ports from high power portable, mobile, or base station transmitters. It can accept 125 watt base station transmitters for up to one minute and 25 watt mobile transmitters for indefinite periods. It combines the signal generator port into the test port to support receiver sensitivity testing.
- Protects your investment
- MA25200A safeguards the S412E ports from high power portable, mobile, or base station transmitters
- Combines signal generator and RF input port into a single connection
- Attenuates RF power levels up to +51 dBm (125 W) by 40 dB
- Maximum continuous power +44 dBm (25 W)
- Alerts user of over power conditions
- Audible alarm at 90 °C, nominal
- Red LED when internal temperature exceeds 90 °C, nominal
- Optional carrying case enables module to be stored when not needed
