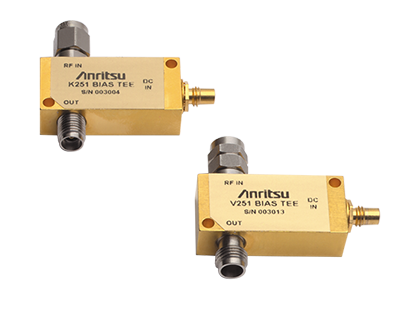

| Model | K251 | V251 |
| Frequency Range 3dB BW | 50 KHz to 40 GHz | 100 KHz to 65 GHz |
| Insertion Loss | <2 dB typical | <2.5 dB typical |
| Rise Time | < 7 ps typical | < 5 ps typical |
| Group Delay | 110 ± 2 ps typical | 113 ± 2 ps typical |
| Max DC Current | 100 mA | 100 mA |
| Max DC Voltage | 16VDC | 16VDC |
| Max RF Power | 1 W | 1 W |
| Connectors | RF In: K(m)
RF Out: K(f)
Bias: SMC (m) | RF In: V(m)
RF Out: V(f)
Bias: SMC(m) |
Specifications apply over the full DC Bias range and over the temperature range of 0°C to +70°C.
