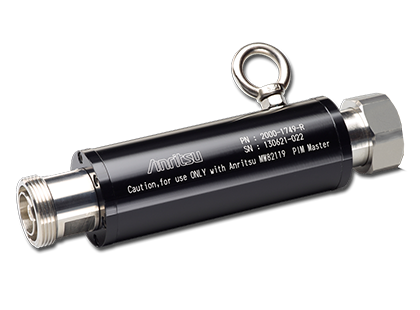

Low PIM Termination 2000-1749-R

2000-1749-R
Overview

Specifications

Frequency 690 MHz — 2800 MHz
PIM –160 dBc max with 2 x 20 W tones @ 25 °C
Impedance 50 ohm nominal
Return Loss 16 dB min
Power Rating 10 W average
Operating Temperature –10 °C to 55 °C

Physical Characteristics

Dimensions 163 mm long x 40 mm diameter
Weight 0.5 kg
Body Black anodized aluminum
Connectors 7/16 dual gender (male and female), 32.0 mm hex tri-alloy plated brass body Silver plated brass center pin; Silver plated beryllium copper socket

Warranty Information

Warranty 90 Days

This termination contains a 7-16 DIN male connector on one end and a 7-16 DIN female connector on the other end to eliminate the need for RF adapters while testing at the top of a tower. Comes with a brass cap that can be installed on either end to prevent external interference from entering the termination while testing.
