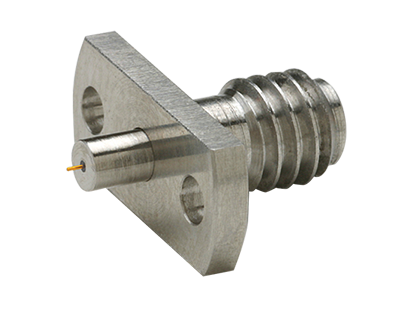

W1 Female Mounting Connector, Flange Mount

W1-103F

Overview
Library

Overview

Description
Features

The W1 two-hole Flange female W1 connector center conductor is supported by a PPO® bead on the front end and by a Teflon bead on the back end. The center conductor extends outside the connector, allowing for a direct pin overlap connection to the microwave circuit.

Excellent RF Performance DC to 110 GHz

50 ohm Impedance

Low VSWR

Standard 1 mm Interface

Accurate Testing Capability

Library

Datasheet

Datasheet	Release Date
RF & Microwave Connectors Declaration of Conformity	9/06/2017
W1 Connector, W1 Adapter, W1 Termination Technical Data Sheet	17/04/2004

Catalog

Catalog	Release Date
Precision RF & Microwave Components Catalog	16/12/2019

Instruction Sheet

Instruction Sheet	Release Date
Connector Care Instruction Sheet	8/10/2019
W1-103F Connector Instruction Sheet	1/05/2018
W1 Connector Instruction Sheet	28/01/2010
W Connector Launches UT-47 Assembly Instructions	8/11/2002

Drawings

Drawings	Release Date
W1-103F Outline Drawing	9/11/2005
