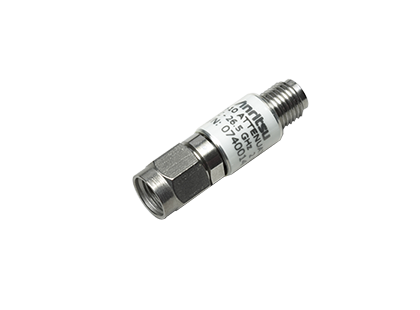

43KB-10 fixed attenuator

Fixed Attenuators

43KB-10

Overview
Specifications
Library

Overview

Description
Features

Silver Line Series fixed Attenuators for use in systems and OEM equipment covering DC to 26.5 GHz.

Low SWR
SMA and 3.5 mm compatibility
Rugged and reliable

Specifications

Model	Attenuation (dB)	Attenuation Accuracy		SWR
Model	Attenuation (dB)	DC-18 GHz	18-26.5 GHz	DC-12 GHz	12-18 GHz	18-26.5 GHz
43KB-3	3	±0.5	±0.6	1.15	1.20	1.30
43KB-6	6	±0.5	±0.6	1.15	1.20	1.30
43KB-10	10	±0.5	±0.6	1.15	1.20	1.30
43KB-20	20	±0.5	±0.6	1.15	1.20	1.30
