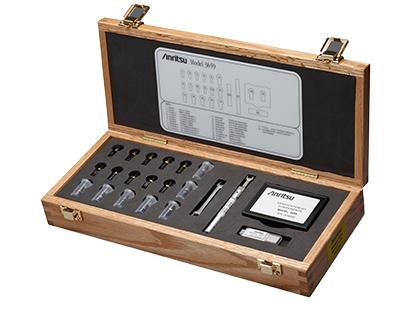

0.8 mm DC to 145 GHz Calibration/Verification Kit

3659
Overview

The Anritsu Calibration kits contain all the precision components and tools required to calibrate your VNA or VNMS for 12-term error-corrected measurements in the connector style of your choice. Components are included for calibrating male and female test ports as required. The kits support calibration with opens, shorts, and broadband loads.

  • 23.8F50-1 Female Short (1.20 mm)
  • 23.8F50-2 Female Short (1.63 mm)
  • 23.8F50-3 Female Short (2.06 mm)
  • 23.850-1 Male Short (1.20 mm)
  • 23.850-2 Male Short (1.63 mm)
  • 23.850-3 Male Short (2.06 mm)
  • 24.850 Male Open
  • 24.8F50 Female Open
  • 28.850 Male Termination
  • 28.8F50 Female Termination
  • 33.8.850 0.8 Male-Male Adapter
  • 33.8.8F50 0.8 Male-Female Adapter
  • 33.8F.8F50 0.8 Female-Female Adapter
  • 33W.850 W1 Male to 0.8 Male Adapter
  • 33W.8F50 W1 Male to 0.8 Female Adapter
  • 33WF.850 W1 Female to 0.8 Male Adapter
  • 33WF.8F50 W1 Female to 0.8 Female Adapter
  • 18.8.8F50-1 0.8 Matched Thruline
  • 18.8.8F50-1B 0.8 Beatty Standard
  • 01-525 6X7 mm End Wrench
  • 01-524 0.8 mm-6 mm Torque Wrench
  • USB MEMORY DRIVE with 0.8mm VNA Calibration/Verification Software and Documentation
