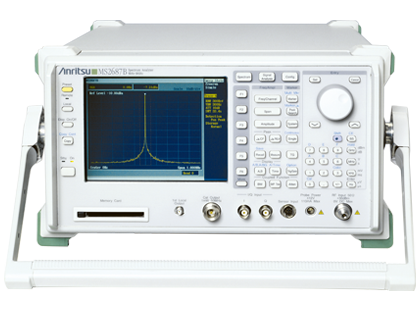

Spectrum Analyzer MS2687B | Anritsu Taiwan

Overview

描述
功能

The MS2687B Microwave Spectrum Analyzer covers a frequency range up to 30 GHz and can measure up to 5th-order harmonics on 5 GHz Wireless LANs.

With a maximum RBW of 20 MHz, the MS2687B is ideal for measuring the burst power of wideband signals used by Wireless LANs. When the WLAN Measurement Software is installed, the modulation accuracy of each sub-carrier of the OFDM signal can be measured at high speed with high accuracy.

Frequency Range
- 9 kHz to 30 GHz
- Extend range to 18 - 110 GHz with external mixers
Resolution Bandwidth
- Up to 20 MHz
- Optional narrow resolution bandwidth from 1 Hz
Optional Power Meter
Frequency Counter with 1 Hz resolution
Superior RF performance specifications

Applications

R&D and Manufacturing of WLAN equipment
Installation and Maintenance of base stations
Installation and Maintenance of Microwave backhauls
Manufacturing of radio components

相關連結

Options

Communication System	Applicable Software
W-CDMA	W-CDMA Measurement Software
GSM	GSM Measurement Software
cdmaOne, CDMA2000 1X	CDMA Measurement Software
CDMA2000 1xEV-DO	CDMA2000 1xEV-DO Measurement Software
PDC/PHS/NADC (IS-136), STD-39/T79, STD-T61	π/4DQPSK Measurement Software
IEEE802.11a/11b/11g, HiSWANa, HiperLAN2	Wireless LAN Measurement Software
TD-SCDMA	TD-SCDMA Measurement Software

Precision frequency reference	Aging rate: ±5 × 10^–10/day
Narrow resolution bandwidth (FFT)	1 Hz to 1 KHz
Digital resolution bandwidth (RMS detection)	Adds RMS detection and expands resolution bandwidth to 10 Hz to 1 MHz.
Ethernet interface	Allows external control via 10BASE-T.
I/Q unbalanced input	- Mounts 2 connectors for I/Q synch inputs and operating inputs (BNC type) to the front panel. - Measurement software corresponding to I/Q input is required for actual measurement.
Power Meter	- With upper frequency of 32 GHz, measure from -20 to +20 dBm. - Add range expansion option to measure from -30 to +20 dBm.
4 GHz LO output.	Outputs internal 2nd local signal through rear connector.
Auto power recovery	- Disables the power switch on the front panel. - Power is automatically reset after the line is restored.
Rack mount (IEC) without handles	- Mounts an IEC standard rack mount. - Eliminates the standard tilt handle.
Rack mount (JIS) without handles	- Mounts a JIS standard rack mount. - Eliminates the standard tilt handle.
