VNA Master + 頻譜分析儀 MS2035B

VNA Master + 頻譜分析儀

MS2035B
Handheld vector network analyzer with spectrum analyzer from 9 kHz to 6 GHz combined into a single measurement solution for the harsh RF and physical environments of field test
Overview

Touch Screen Convenience in the Race for Affordable S-Parameters

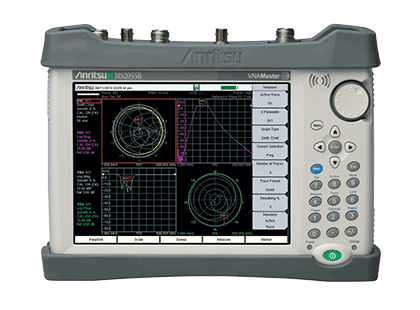

The VNA Master MS2035B with added Spectrum Analyzer is compact in size and high in performance field rugged Vector Network Analyzer. Providing true vector error corrected S-parameter data, this analyzer is easy to use with large, high resolution (800 x 600) touch screen display, and depending on the model and options, capable of much more than just VNA measurements. Industry leading DANL and Phase Noise performance. Standard capability includes 1-Path, 2-Port VNA measurements, with a standard, user selectable GUI mode which allows the user to choose between the standard VNA S-parameter format or a more simplified Cable and Antenna analyzer format known as “Field Mode”. Both modes deliver the same high level of measurement precision and accuracy which the VNA Master products are well known for. Additional options extend functionality even further, making the VNA Master much more versatile in the field and eliminating the need to carry multiple instruments.

現場射頻工程師和技師可為全球航空航天、國防和常規應用通信系統提供現場安裝和維護支援。 這些應用通常包括海軍艦船上的雷達、軍用車輛上的通信以及空軍和民用飛機的航線測試等。 他們為全球無線電導航系統中的甚高頻全向信標 (VOR) 天線提供支援。 他們在工作過程中經常遇到可能導致整個系統出現故障的多種系統元件:天線、電纜、濾波器、多路器、放大器、隔離器、循環器、開關以及其他精密元件。 VNA Master 新增觸控螢幕功能,能夠在現場診斷條件下提供最直觀的量測控制。

VNA Master 還可應用于新興高科技應用領域,諸如對艙壁和艙室內蜿蜒纏繞的機載和船載線纜束進行故障點定位之類的問題,該故障點定位問題由來已久,如今利用 VNA Master 可有效解決。

+ 頻譜分析儀 (9 kHz ~ 6 GHz)

在測試現場,測試系統中含有技術尖端的發射器和接收器,這些設備需要具有複雜的發射器和接收器 (LO) 訊號所對應的特性,以便有正常的發射和接收性能。 除了必需的 VNA 測試外,這些綜合性訊號測試進一步提高了維護技師的工作複雜程度。 而適於執行現場作業的頻譜分析儀則大大簡化了此工作。 頻譜分析資料對於諸如雷達、電子防務和通訊系統等頻率高達 6 GHz 的微波系統而言尤為重要。

MS2035B VNA Master + 頻譜分析儀在已經很強大的 VNA Master 基礎上,又增加了強大的現場頻譜診斷功能! 不要被該設備的小尺寸所蒙蔽;這個功能強大的儀器組合所具備的性能和功能可與同類的臺式設備相媲美,能夠大大地簡化現場頻譜監控、干擾分析以及其他通用訊號量測操作。

這種組合式頻譜分析儀新增諸如內部常式等重要功能,在以盡可能快的速度優化掃瞄的同時,顯示最準確的資料。 此外,該設備還具有寬廣的頻譜分析頻率覆蓋範圍、令人滿意的動態範圍以及優異的相位雜訊性能,所涉及的頻率在 9 kHz 到 6 GHz 之間。

VNA Master + 頻譜分析包含多種標準量測序列,其中包括場強、佔用頻寬、通道功率、相鄰通道功率比和載幹比 (C/I)。 此外,內置 AM/FM/SSB 解調器還簡化了對干擾訊號的識別操作。 選件 0509,AM/FM/PM 解調分析選件,具有強大的運算功能,正確顯示射頻調變頻譜和音訊特性。 選件 0025,干擾分析儀,對於有效揭示協同定位訊號問題具有尤為重要的意義。 總的來說,VNA Master + 頻譜分析儀是一種可隨時隨地進行通用頻譜分析的有力便攜式工具。

VNA Master(500 kHz ~ 6 GHz)
  • 雙埠、單路徑向量網路分析儀 (VNA)
  • 直觀的圖形用戶介面 (GUI),配有便捷的觸控螢幕
  • 卓越的抗射頻干擾能力
  • 100 dB 傳輸動態範圍
  • 向量電壓計選件,能夠精確匹配電纜相位
+ 頻譜分析儀 (9 kHz ~ 6 GHz)
  • 動態範圍: > 95 dB in 10 Hz RBW
  • DANL: –162 dBm (1 Hz)
  • 雜訊強度: 最大為 -100 dBc/Hz,10 kHz 偏移,1 GHz 下
  • 頻率精度: < ±50 ppb with GPS On
  • 探測器: 峰值檢波、負峰值檢波、準峰值檢波和真有效值檢波
  • 標準 3 年保固 (電池 1 年保固)

Line Sweep Tools (LST)
Anritsu Line Sweep Tools (LST) is the latest generation of Handheld Software Tools, an industry standard. This PC based post-processing software efficiently manipulates line sweep and PIM traces for reporting purposes.

easyMap Tools (EMT)
easyMap Tools provides maps in formats that Anritsu's handheld spectrum analyzers can use for either coverage mapping or interference hunting. It helps users find and prepare geo-referenced maps and building floor plans for use by Anritsu handheld Spectrum Analyzers.

Wireless Remote Tools
Wireless Remote Tools™ is Anritsu's remote control software, available as a free download. It works with many of our Handheld RF Instruments. The Wireless Remote Tools software allows users to wirelessly monitor and control a wide range of Anritsu handheld RF instruments. Wireless Remote Tools provides a solution for the times when it is not practical to be close to the instrument.

Master Software Tools (MST)
Master Software Tools (MST) allows Anritsu handheld Spectrum Analyzer users to Capture, Analyze, and Document traces and measurements taken with a wide variety of Anritsu handheld spectrum analyzers.

選件
選件 說明 選件訂購號
選件 10 內置可變電壓偏壓器 MS2034B-0010
選件 15 向量電壓計MS2034B-0015
選件 19 高精度功率計(需要 USB 感測器,單獨銷售) MS2034B-0019
選件 25 幹擾分析 MS2034B-0025
選件 27 通道掃瞄儀 MS2034B-0027
選件 31 GPS 接收器(需要 GPS 天線,單獨銷售) MS2034B-0031
選件 98 Z-540 校準 MS2035B-0098
選件 99 高階校準 MS2035B-0099
選件 411 乙太網連接 MS2035B-0411
選件 431 覆蓋映射
(需要選件 31 GPS)
MS2035B-0431
選件 509 AM/FM/PM 解調分析儀 MS2035B-0509
資料庫
圖片
影片
MA8100A Tutorial – Generating 3D Building Maps

MA8100A Tutorial – Generating 3D Building Maps
Step by step instructions for creating and generating 3D building maps with floorplans

MA8100A Installation Tutorial

MA8100A Tutorial
Step by step installation instructions. NEON Signal Mapper, a 3D in-building solution.

NEON Indoor Mapping with Anritsu LMR Master

NEON Indoor Mapping
TRX NEON Signal Mapper and command software shows mapping in real time

Anritsu MA8100A TRX NEON Signal Mapper

TRX NEON Signal Mapper
Test when GPS is not available, deliver real-time 3D location, for indoor measurement applications

easyMap Tools – Obtaining Registration Key for MapQuest Sourced Maps

easyMap Tools - REG Key
This tutorial will show you how to obtain a MapQuest API key.

Anritsu Handheld Instrument Firmware Update Method

Firmware Update Method
Download firmware for use with your handheld devices quickly and easily (not for S331L)

Anritsu Wireless Remote Tools Tutorial Video

Wireless Remote Tools
Tutorial explaining how to access, monitor, and control devices remotely
