High Speed PAM4 BER 측정 솔루션

One box over 400G Testing

【Video】Signal Quality Analyzer-R MP1900A PAM4 Solution Duration: 00:03:18
Anritsu has implemented more accurate signal integrity tests, such as bit error rate (BER) measurements, crosstalk tests, Jitter Tolerance tests, etc., in its MP1900A test solution for 32G/64G NRZ/PAM4.

Three Features Supporting PAM Measurement

High-Quality

Expandability

All In One

All Instruments for PAM Measurement in One Unit
Efficient Measurement with High-Quality Output Waveforms

PAM4 Test Solution

High-Quality

High-Quality Data Output with High-Speed Tr/Tf and Low Intrinsic Jitter

The PAM4 PPG MU196020A supports output of low-noise and low-distortion high-quality data signals with a high Tr/Tf speed (20 to 80%) of 8.5 ps, a low intrinsic jitter of 170 fs rms, and a high analog bandwidth for generating wide open Eye PAM4 waveforms and high-reproducibility measurements.

NRZ waveform

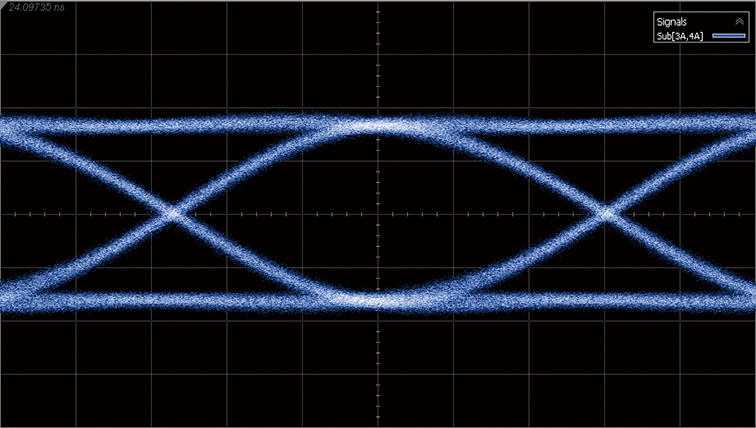

Typical 58-Gbit/s PRBS15 Output Waveform
(J1789A 40 cm Cable and 1400 mV Differential)
PAM4 waveform

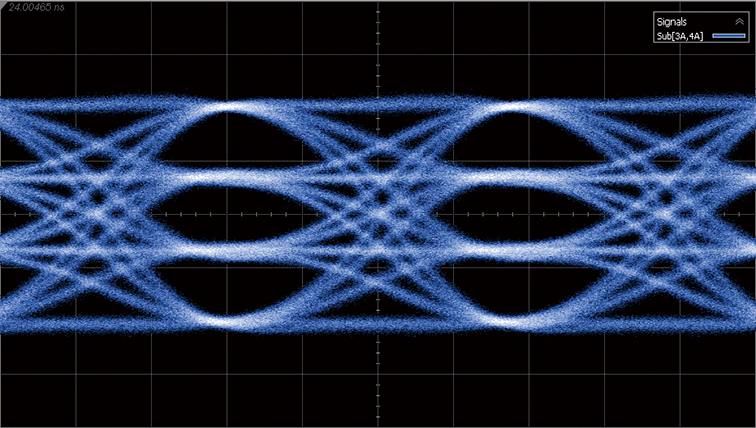

53.125-Gbaud PRBS15 Output Waveform
(J1789A 40 cm Cable and Differential)

4Tap Emphasis Output at 20 dB max

The optional 4Tap Emphasis function built into the MU196020A can generate the Pre-Emphasis and De-Emphasis signals required by each standard for maximum rates of 64.2G. Since each tap can be changed independently up to 20 dB, corrected waveforms for various transmission paths can be output with good reproducibility.

PAM4 Emphasis

116-Gbit/s PAM4 Signal Error-Free BER Measurement using High Input Sensitivity Function

Combining the PAM4 ED MU196040B with the PAM4 PPG supports BER measurements of 116-Gbit/s (58 Gbaud) PAM4 signals. Error-free BER measurement is achieved by the industry-best high sensitivity performance of 23 mV @ 26 Gbaud and 36 mV @ 53 Gbaud. The resulting high-accuracy BER measurements make it easy to troubleshoot previously difficult-to-analyze PAM4 devices. In addition, true DUT performance can be verified because even CEI-112G-VSR-defined worst-case stressed signals can be received at low-error rates (<E-8), exceeding the specifications.

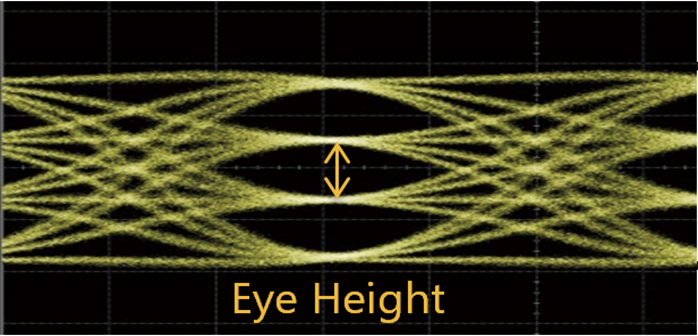

Error-Free Measurement of PAM3 Signals at 23 mV @ 26 Gbaud, and 36 mV @ 53Gbaud
Error-Free Measurement of PAM3 Signals at 23 mV @ 26 Gbaud, and 36 mV @ 53Gbaud

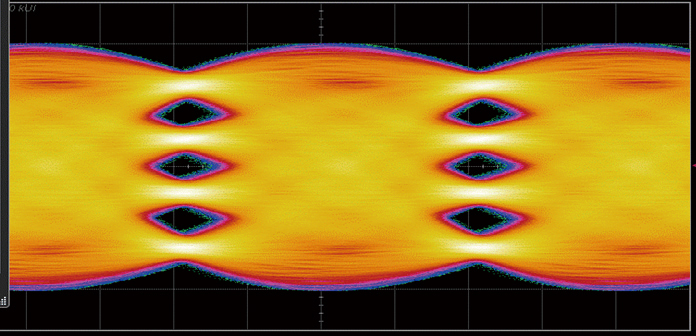

CEI-112G-VSR-defined Worst-Case Stressed PAM4 Signal
CEI-112G-VSR-defined Worst-Case Stressed PAM4 Signal

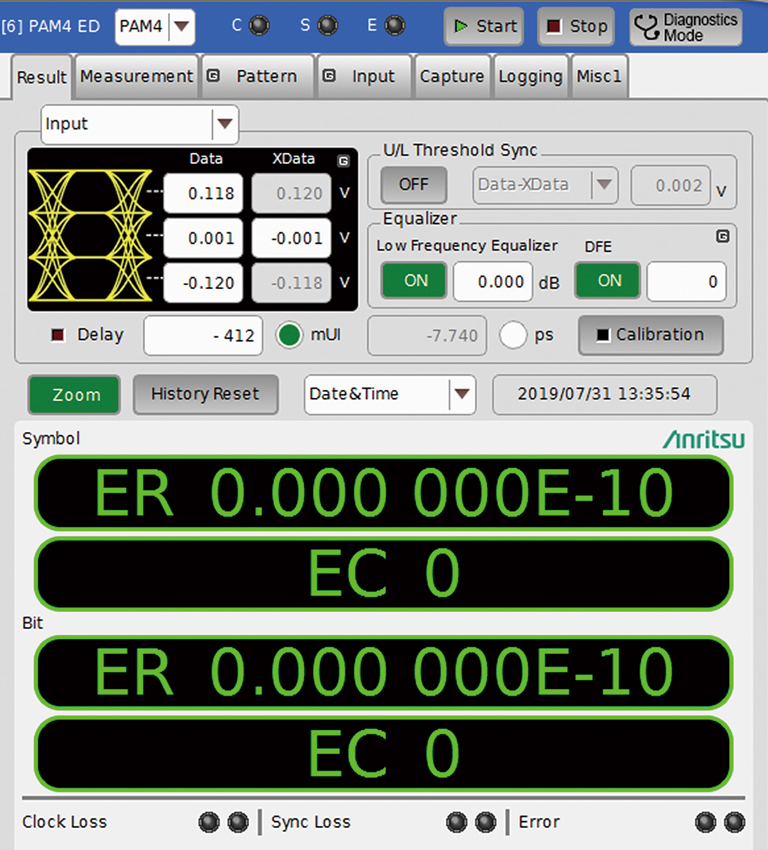

PAM4 BER Measurement Screen
PAM4 BER Measurement Screen

Auto-Search Function  UPDATED

Upper, Middle 및 Lower Eye 측정 지점(전압 임계값 및 위상) 외에도 최적의 Equalizer 설정을 자동으로 감지하여 최상의 BER 결과에 필요한 조건을 자동으로 감지합니다. 또한 PAM4 Symbolic Logic 및 Gray Coding 조건의 자동 검출은 입력 PAM4 Symbolic Coding에 대한 패턴 조건의 자동 평가를 지원하여 보다 효율적인 측정 환경을 제공합니다.

MP1900A_ Auto-Search Function

Expandability

The MP1900A series is an 8-slot, modular, high-performance BERT.
Installing multiple 64G PAM4 PPG module boards in the slots provides the performance for measuring not only 400GbE systems but also future 800GbE systems as well. This flexible expandability helps customers maximize product development-cost efficiencies and bring products to market early.

NRZ Solution
PAM4 Solution
PAM3 Solution


All In One

All-in-One 64Gbaud BER Measurement Solution

The 8-slot main chassis can accommodate various module combinations, such as PPG/ED, existing synthesizer, jitter modulation source, noise generator, etc. A compact, high cost-performance, next-generation, all-in-one measurement solution can be configured without other external instruments.

All-in-One 64Gbaud BER Measurement Solution

PAM4 Signal Jitter Tolerance Test using One MP1900A

PAM4 Jitter Tolerance Test

Supports detection and analysis of FEC Symbol Errors

The input data is captured when the number of FEC symbol errors exceeds the threshold setting. The causes of FEC-uncorrectable errors can be analyzed from the captured data.

Supports detection and analysis of FEC Symbol Errors

Supports Eye Contour Margin test  UPDATED

입력 신호 Eye-opening은 Bathtub 추정치를 기반으로 고속으로 측정됩니다. NRZ 외에도 PAM4 Symbol Upper, Middle 및 Lower Eye opening이 측정되어 최대 E-20까지 BER 추정에서 Eye Margin 특성을보다 정확하게 평가할 수 있습니다.

MP1900A_ Eye Contour Margin test

All-in-One Ethernet/PCIe Measurement  UPDATED

PAM4와 점점 더 빨라지는 PCIe 1.0 - 5.0 인터페이스 모두 이 일체형 테스트 솔루션을 사용하여 측정할 수 있습니다. 프로토콜 인식 링크 교육*1은 차세대 PCIe 6.0 표준 및 Jitter Tolerance 테스트에 정의된 PAM4 기호 오류 측정과 함께 PCIe 5.0까지 지원되므로 1단계 PCIe 인증*2에서 핵심적인 역할을 수행할 수 있습니다.

MP1900A_ All-in-One Ethernet/PCIe Measurement

*1: For details, refer to the Selection Guide (MP1900A-E-Z-1)
*2: Contact our business section for details related to PCIe 6.0 Link training.

Jitter/Noise Types*      *: The upper noise addition rate is 32.1G.

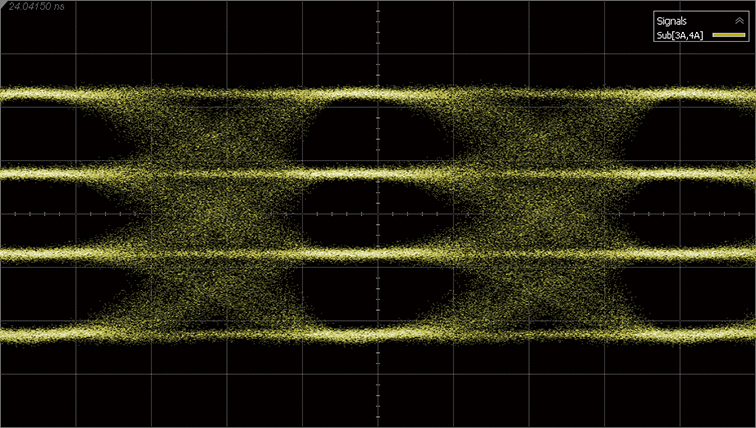

Sine Wave Jitter (SJ)
Sine Wave Jitter (SJ)

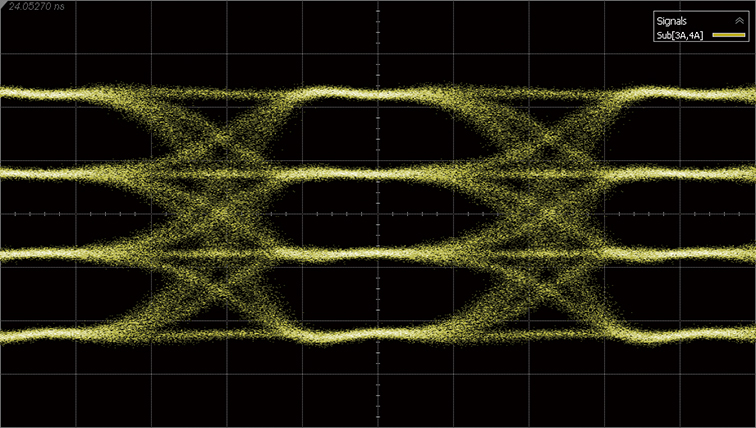

Random Jitter (RJ)
Random Jitter (RJ)
CM/DM Noise
CM/DM Noise

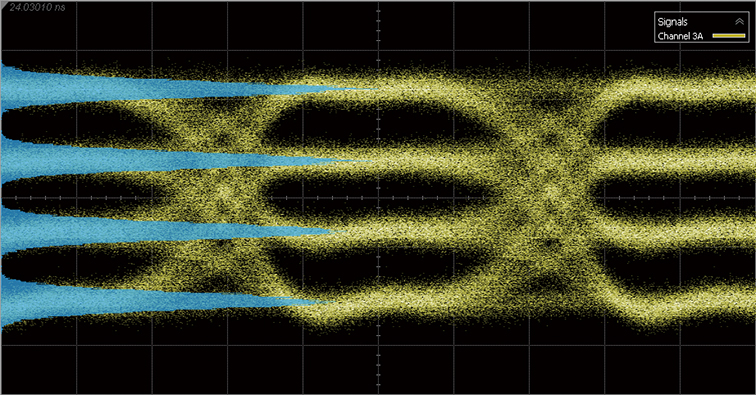

White Noise
White Noise

Jitter Tolerance Test Function (MX183000A-PL001)

  • Easy Jitter Tolerance measurement
  • PHY device Jitter Tolerance test with impressed SJ/RJ/BUJ
  • Mask measurements supporting various standards
  • Shorter measurement times using low error rate (1E-12, 1E-15, etc.) estimation function
  • Tolerance measurement for device characteristics using four Binary, Upward, Downward, and Binary + Linear measurement methods
  • Built-in Jitter Tolerance Mask standards for 200/400G including IEEE 802.3, CEI, etc.
  • Support for both user-defined masks and new standards

More details about Signal Quality Analyzer-R MP1900A
