High Return Loss Connectors and Cables


안리쓰는 고주파수 커넥터 기술의 선두기업으로서 고객들의 니즈를 뛰어넘을 수 있도록 끊임 없이 노력해 나가고 있습니다.

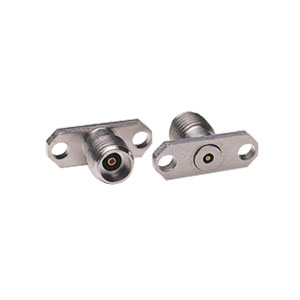

K Connectors
Anritsu created and trademarked the K Connector® with coverage to 40 GHz, along with a complete family of 40 GHz test equipment. it was an immediate success and today is used on many commercial componets, test fixtures, and military systems.

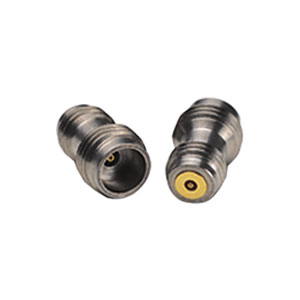

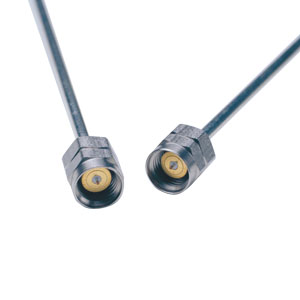

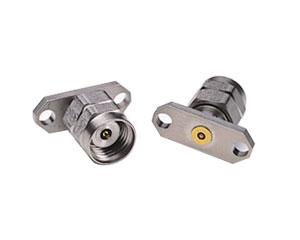

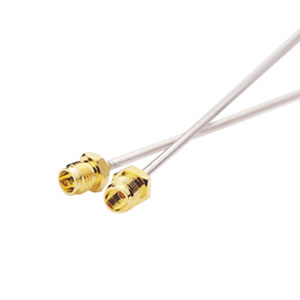

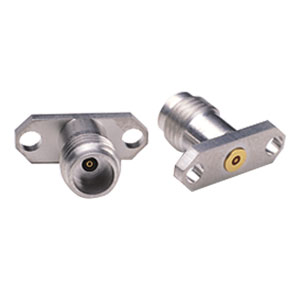

V Connectors
The V Connector® offers coaxial coverage to 65 GHz and uses a 1.85 mm geometry endorsed by International Electrotechnical Commission (ICE). It mates with commercially available 2.4 mm connectors.

W1 Connectors
The W1 Connector® Family is a complete coaxial connecotr system with mode-free performance to 110 GHz.

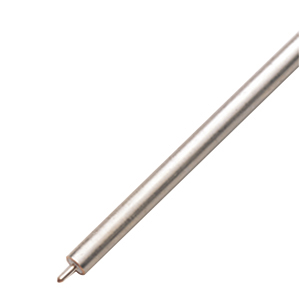

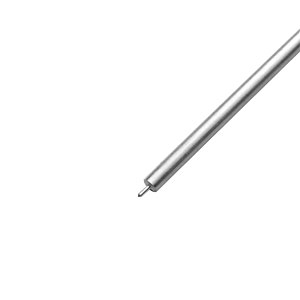

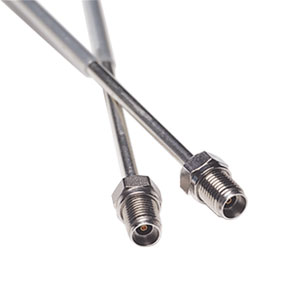

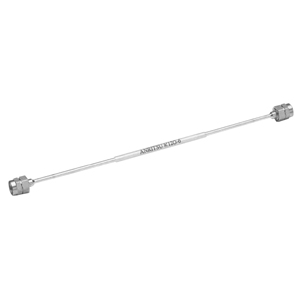

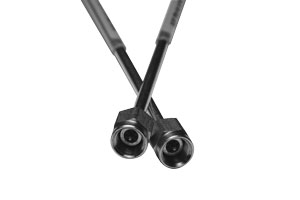

Semi-rigid RF Cables

  • Up to 65 GHz frequency ranges
  • Type N, K Connector and V Connector
  • K Connector compatibility with SMA and 3.5 mm
  • V Connector compatibility with 2.4 mm

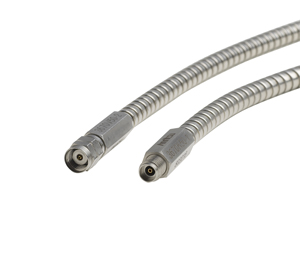

Armored Semi-rigid Test Port Cables
The 3670 series cable are laboratory quality cable that contain General Precision Connectors

제품

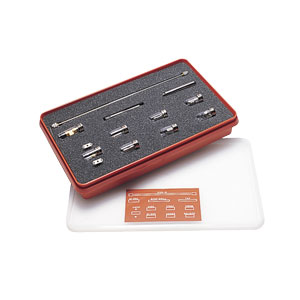

01-101A

K Connector 평가 키트

Contains the parts and fixtures required to evaluate K connectors without sliding contacts

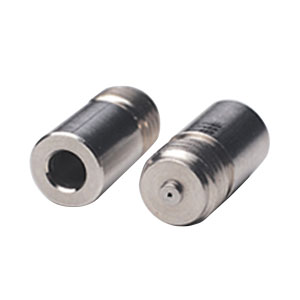

01-103

솔더링 비품

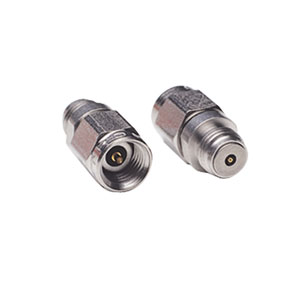

Glass Bead Soldering Fixture for K102M-R and K102F-R Sparkplug Connectors

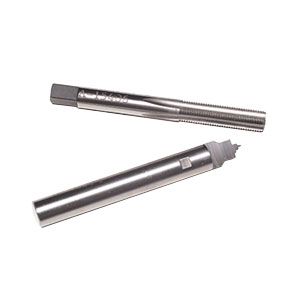

01-104

드릴 및 탭 세트

K Connector Drill and Tap Set for Non Sliding Relief Contacts

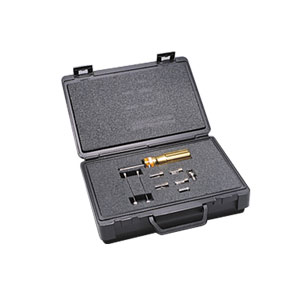

01-105A

스파크 플러그 토크 키트

Includes all adapters needed to attach to female connector threads

01-107F

K101F Cable Sleeve Soldering Fixture

Helps to maintain the connector alignment while soldering

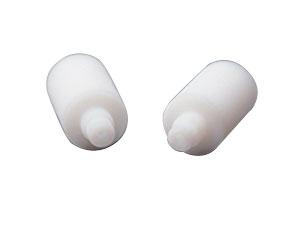

01-107M

K101M and K101M-85 Cable Sleeve Soldering Fixture

Helps to maintain the connector alignment while soldering

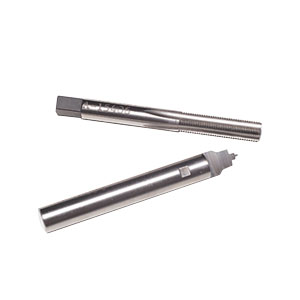

01-108

드릴 및 탭 세트

K Connector Drill and Tap Set with Sliding Relief Contacts Use

01-201

토크 렌치

Fixed Break-Over Torque Wrench with 5/16" opening for V (1.85 mm), K (2.92 mm), 3.5 mm and SMA connectors

01-204

스테인리스강 커넥터 렌치

For fastening V, K, 3.5 mm and SMA connectors and components

01-504

W1-6mm 토크 렌치

Fixed Break-Over Torque Wrench with 6mm Opening for W1 (1.0 mm) Connectors

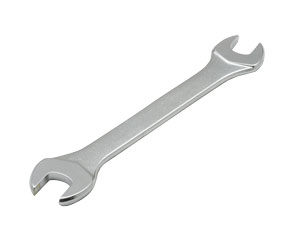

01-505

W1-6-7mm 오픈 엔드 렌치

Handy for holding the W1 Female connector and disconnecting the W1 Male coupling nut

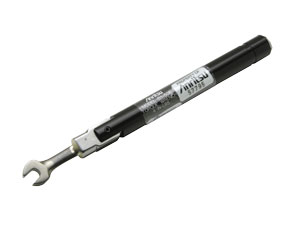

01-506

W1-7mm 토크 렌치

Fixed Break-Over Torque Wrench with 7mm opening for W1-102X Sparkplug installation
