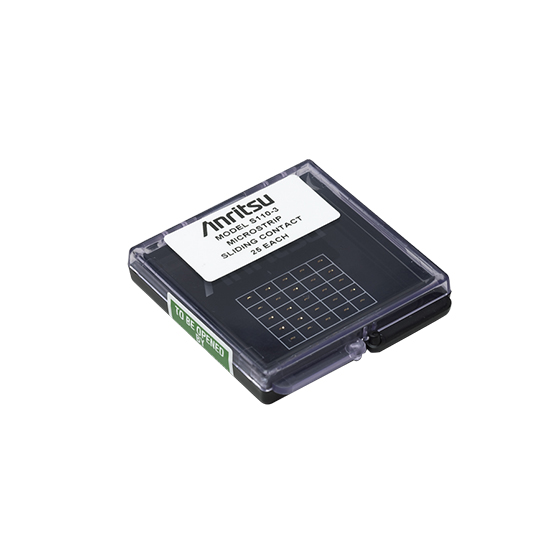

S110-3 Microstrip Sliding Contact

ストレスリリーフ コンタクト

S110-3-R
Provides stress relief to protect circuits from temperature variations, shock and vibration, with excellent quality microwave connection to a 0.38 mm pin without the need for soldering
概要

Stress relief contacts (also known as sliding contacts) are designed to simplify connection to the bead pins. In use, the installer slides the contact over the bead pin and then attaches the tab to the circuit trace.  The S110-3-R is a Microstrip and Coplaner Waveguide stress relief contact for 0.38 mm glass feedthru center conductor. Similar to the S110-1-R in construction, the S110-3-R has a larger tab width. The tab width for the S110-3-R is 0.41 mm.

  • 温度変化、衝撃、振動時に回路を保護する圧力緩和を提供
  • はんだ付けを必要とせず、0.38mm ピンへ優れた品質のマイクロ波接続を提供
