Today’s 4G base stations integrate multiple technologies that range from traditional RF cables and fiber optic lines to small cells and macro cells. This integration is part of a decade-long evolution that has also seen radios ascend from the base station on the ground to atop the tower, with a baseband unit (BBU) installed in the equipment room. While this progression has helped reduce operating expenses (OpEX), new test challenges have arisen.

Placing remote radio heads (RRHs) atop network towers has changed base station deployment. The RRH is installed with the fiber optic cable, antennas and other elements, followed by the commissioning of the BBU. This process has led to more time and expense being associated with network deployment. BBU emulation addresses this problem by providing the following benefits:

  1. Faster turn up time. This means revenue can be collected faster by mobile operators and contractors enjoy higher profits.
  2. Lower OpEx. This advantage relates to existing sites and new deployments.

Research has shown that 3-6 truck rolls are typically necessary to fully install a new site. One crew installs the RRH and associated elements while a second team commissions the BBU. When that is finished, testing begins and if there is a failure, the original crew must return to make the repair. The BBU crew will then come back a second time to verify the base station.  

BBU emulation streamlines the process because it permits technicians to test the RRH infrastructure without a commissioned BBU. Tests are made with the construction equipment still at the site. If repairs are necessary, the crew is there to perform them.

BBU emulation can also be used to monitor and test existing base stations. The current approach is to replace the BBU once there is an issue. The RRH is replaced if the same problem continues. BBU emulation makes this approach obsolete, thereby eliminating any associated “No Trouble Found” (NTF) costs.

The benefits of BBU emulation can be realized using an appropriately configured handheld analyzer, such as the Anritsu BTS Master™ MT8220T, and Network Master™ Pro MT100A.

You can learn more about BBU emulation by downloading this infographic:

Download

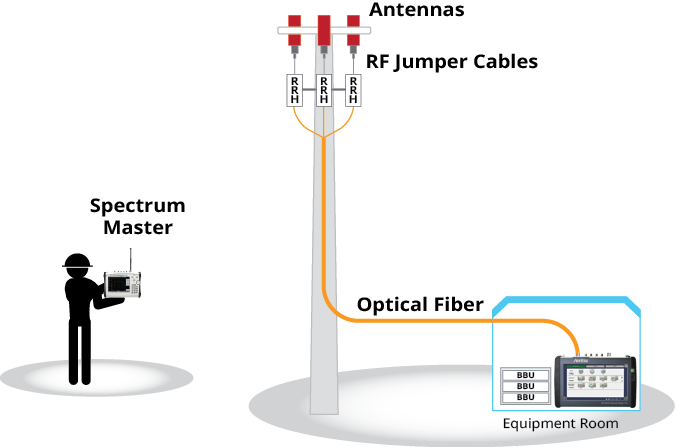

Image of BBU Use Case diagram
