X-ray Inspection System

DualX HR [Dual Energy]
This product has been discontinued
Equipped with a new High Resolution Dual Energy Sensor for enhanced detection performance such as minute bones and metals

Overview
  • High-resolution imaging enables improved detection sensitivity for fine bones and metals.
  • Outstanding detection performance even for thick products with irregular surface thanks to the new Dual Energy Sensor and the dedicated detection algorithms.
  • The new dual energy sensor greatly extends the life of the sensor. Since the deterioration of the element is very small, it contributes to the reduction of TCO.

Equipped with newly developed dual energy sensor and the dedicated detection algorithms, Anritsu's DualX HR type is capable of acquiring high-resolution images, which enhances the detection performance of minute metals and small bones even for thick products with irregular surface.

External Dimensions

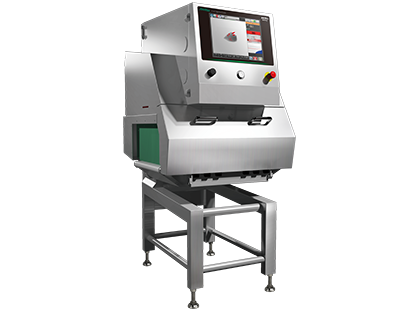

EXTERNAL DIMENSIONS KXH7534ASGCD
Specifications
Model KXH7534ASGCD
X-ray output Tube voltage 30 to 80 kV, Tube current 0.4 to 10.0 mA, Maximum output 300 W
Safety X-ray leakage maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Display 15-inch color TFT LCD
Operation method Touch panel (with touch buzzer)
Detection area1, 2 Maximum width 370 mm, Maximum height 220 mm
Belt width 420 mm
Preset memory 200
Belt speed3 / Maximum product weight4 10 to 45 m/min, maximum 5 kg
Power requirements5 200 Vac to 240 Vac, Single phase, 47 Hz to 63 Hz, 1800 VA or less
Mass 350 kg
Environmental conditions Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class IP66 (air conditioner: IP54)
Exterior Stainless steel (SUS304)

1 : The product size should fall below the detection area.
2 : The entrance and exit may require covers depending on the length of a product.
3 : Variable depending on Product No.
4 : Sum total of product weight on the conveyor.
5 : Allowable power fluctuation range is ±10%.

Library

New Dual Energy Sensor breaks through the limits of conventional detection performance

The standard dual energy model could not fully utilize its superiority of the dual energy inspection when it comes to thicker products or products with highly uneven surfaces. By introducing a new dual energy sensor, we have succeeded in making X-ray transmission images significantly sharper. It is now possible to clearly display the shadows of contaminants on these targets. In addition, the dedicated detection algorithms have improved the sensitivity to detect fine metals and small bones, which had been hard to detect.

Evolution with the new dual energy sensor

DualX HR is equipped with a high-resolution sensor to improve the sharpness of transmitted images. This makes it possible to detect foreign bodies that are even smaller in size and thinner in shape such as small bones, fine metal fragments, etc.).

Image showing improvement with the new dual energy sensor

Improved detection performance even for thick and unevenly shaped products

By applying the dual energy inspection method to the high-quality X-ray transmission images, it is not easily affected by the uneven shape and thickness of the product. Moreover, various type of products can be inspected thanks to the newly developed detection algorithms.

Image showing improved detection sensitivity with the new detection algorithms

Product Test Examples

Product test examples with comparison with the standard model
