Pod 1: 5G Installation & Maintenance

Field Master Pro™ MS2090A

Discover more about the Anritsu Field Master Pro MS2090A real-time spectrum analyzer. With continuous frequency coverage from 9 kHz to 54 GHz, the Field Master Pro MS2090A is the ideal solution designed to meet the test challenges of a full range of wireless technologies including: 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar. Delivering the highest level of RF performance available in a handheld, touchscreen spectrum analyzer, all versions provide a comprehensive range of features to speed and simplify measurements:

• Continuous, gap-free coverage supports FR1 and FR2 frequency radio test, including spurious and harmonic testing of FR1 radios to 12.75 GHz
• Full span swept-tuned spectrum analyzer and amplitude, as well as a spectrogram display
• Integrated channel power and occupied bandwidth measurements
• Built-in adjacent channel power measurements
• Built-in RTS with spans up to 110 MHz of bandwidth

Keyword: 5GNR gNBfield measurements, 5G base station installation and maintenance

Presentation

Related Presentation

Pod 2: 5G Device Application Test

Radio Communication Test Station MT8000A
Signalling Tester (Base Station Simulator) MD8475B

Anritsu provides SmartStudio NR for functional, application and regression testing for commercial release of 5G devices. SmartStudio NR is based on the MT8000A network simulator hardware. The interactive state-machine based GUI enables IMS/SMS testing and Internet connection to be easily performed without the need for scenario development. In addition, by switching from SmartStudio NR to other control software, a single MT8000A can be used for protocol testing and RF measurement applications. All control software supports Sub-6 GHz, mmW, NSA and SA.

Keyword: 5G, mmWave, Sub-6, NSA, SA, Application Test

Related Presentation

Pod 3: 5G Industry Verticals Test Bed

Radio Communication Test Station MT8000A

Network Master Pro (Ethernet/CPRI/OTDR Test Equipment) MT1000A

New industry verticals will be a key part of 5G future growth, with many new markets and applications being addressed by Release 16 features. Anritsu’s MT8000A network simulator test bed provides a platform to evaluate device and application performance (e.g. throughput, latency, signaling) using MEC, URLLC, 5G RAN with Network Slicing emulation and flexible user configurations. The Anritsu Network Master™ Pro MT1000A is another measurement solution for 5G field testing of timing/latency and PTP which is critical in some URLLC use cases.

Keyword: 5G, Mobile Edge Compute, URLLC, Network Slicing, Applications test

Anritsu collaborated with InterDigital for a demonstration (see video below). InterDigital contributed an immersive (360 degrees) media streaming service leveraging their mobile edge computing platform, which has been integrated with the Anritsu MT8000A 5G standalone platform.

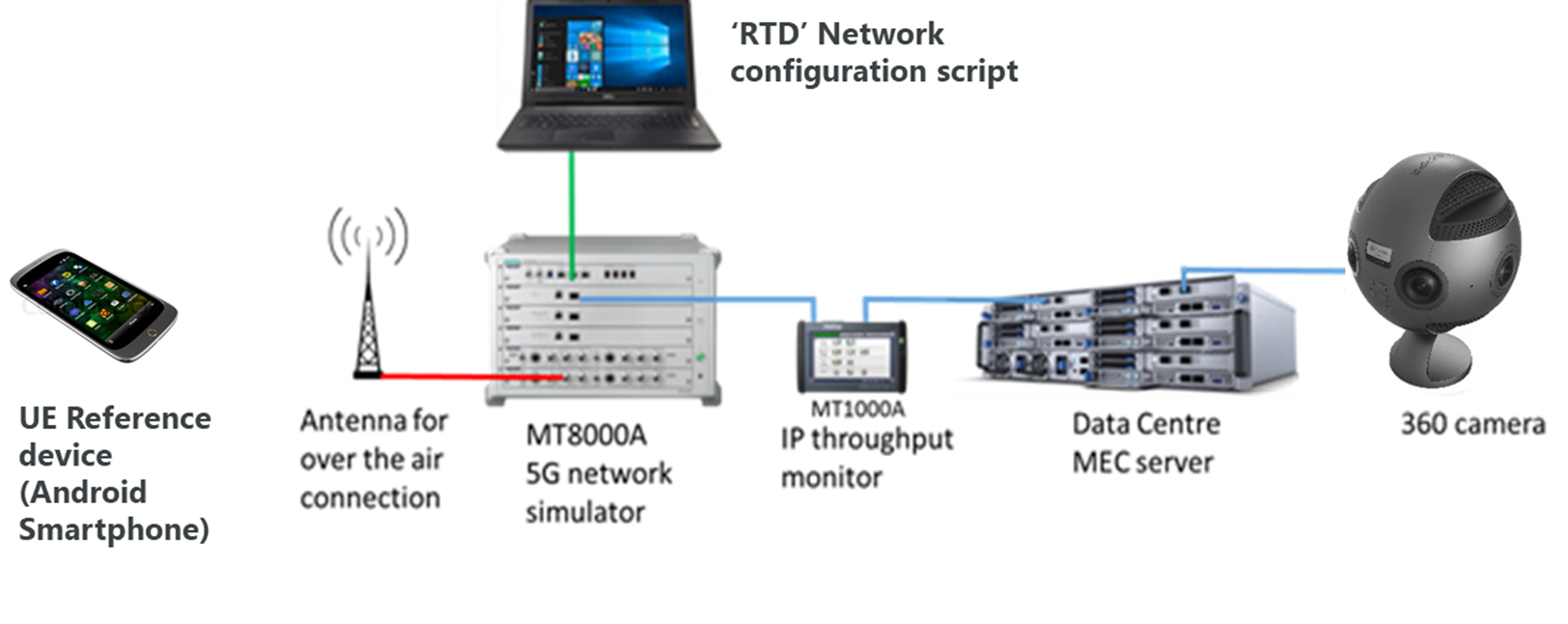

Demo configuration using Interdigital MEC server and application

Our Partner：InterDigital

1) Introduce Interdigital:

InterDigital unites two main communication technologies – wireless communication and video communication – into one of the world’s largest pure research, innovation and licensing companies. We solve many of the industry’s most critical and complex technical challenges, inventing solutions for more efficient broadband networks, better video delivery, and richer multimedia experiences years ahead of market deployment. With more than 300 engineers around the world, our focus is on research and development with pervasive impact: mobile technologies that underpin smartphones, networks and services via global standards, and video technologies that are the foundation for today’s most popular products and services. InterDigital has licenses and strategic relationships with many of the world’s leading technology companies, and our inventions help improve every product in the markets we participate in, from the most basic to the most advanced, to transform industries and improve the products and services that are part of our daily lives.

2) Website:

www.interdigital.com

3) InterDigital’s statement:

“We are delighted with this first showcase of InterDigital’s video and edge technology over a 5G standalone platform from our partner Anritsu,” said Dr Alain Mourad, Director Engineering R&D at InterDigital. “Over the next 12 months, we will be extending our collaboration with Anritsu to showcase InterDigital’s beyond 5G hybrid network slicing technology for Industry 4.0 use cases.”

Pod 4: Smarter Operations

Smarter Operations with Augmented Analytics

With the arrival of 5G networks, Anritsu sees increasing complexity in Operations with network slicing, IOT and private networks. Augmented analytics is required to achieve smarter operations. Smart closed-loop automation reduces the troubleshooting burden on Operations teams freeing resources to address higher order issues.
Anritsu’s solution portfolio, which includes eoMind, delivers augmented analytics and machine learning anomaly detection. Using this approach Anritsu finds problems on the network that traditional tools can’t find and it does it in real time. Cases are raised and priority is based on the impact to subscribers, VIPs, and Corporates. Next best actions are enriched with likely root causes transforming complex troubleshooting investigations to closed cases.
Anritsu uses artificial intelligence and machine learning techniques, natural language processing and real-time streaming analytics to deliver award-winning, market-changing insights and closed-loop actions that impact customer satisfaction and reduces MTTR for smarter operations.

Keyword: Artificial Intelligence, Machine Learning, Augmented Analytics, Next Best Action, 5G Ready

Related Presentation

Pod 5: 5G Automated Assurance

5G Automated Assurance

Network Slicing on 5G networks represents a huge shift in how Operators can offer and monetize services for customers. When offering premium levels of service on dedicated logically-separated networks it is even more important to automate assurance for network slices, to highlight in real time issues and anomalies, and to take automated smart closed-loop decisions.
5G will allow Operators to offer tailored networks customized for specific applications like autonomous cars, VR/AR and smart city initiatives. M2M/IOT and Industry 4.0 will bring orders more devices onto the networks, bringing new patterns of use, new scalability issues and new fraud opportunities.
Anritsu is 5G-ready for both SA and NSA meaning Operators can assure all slices, all industry vertical and scales up for massive device density. Enterprise customers can plan their business supported by deterministic SLAs while Operators can assure those services, having a view of each slice and all slices to optimize their network resources.
Anritsu’s NFV closed-loop automation enables virtualized infrastructures adjust automatically to dynamic network conditions and triggers actions to reduce troubleshooting costs and time. Increasing complexity in networks should not hinder Operators in offering exciting new slices of services to their customers.priority is based on the impact to subscribers, VIPs, and Corporates. Next best actions are enriched with likely root causes transforming complex troubleshooting investigations to closed cases.
Anritsu uses artificial intelligence and machine learning techniques, natural language processing and real-time streaming analytics to deliver award-winning, market-changing insights and closed-loop actions that impact customer satisfaction and reduces MTTR for smarter operations.

Keyword: 5G NSA and SA Ready, Network Slicing Assurance, Closed-Loop Automation, Cloud-Native, Local Networks
