All-in-one Solution for Fast, High Sensitivity, Low Jitter Evaluation of Optical Modules

Reduce cost. Increase productivity. A new single box solution to evaluate 100G optical modules

A new single box solution for evaluation of optical modules using high sensitivity, fast sampling oscilloscope, high quality output waveform PPG, and high-input-sensitivity ED



All In OneAll-in-one max. 4ch 28.2 Gbit/s BERT max. 2ch optical sampling oscilloscope
Low CostIntegrated BERT and sampling oscilloscope to reduce instrument capital costs
250 ksamples/sCaptures 1 million samples in approx. 5 seconds
-15 dBm SensitivityMeasures optical signals attenuated by peripherals such as optical switches

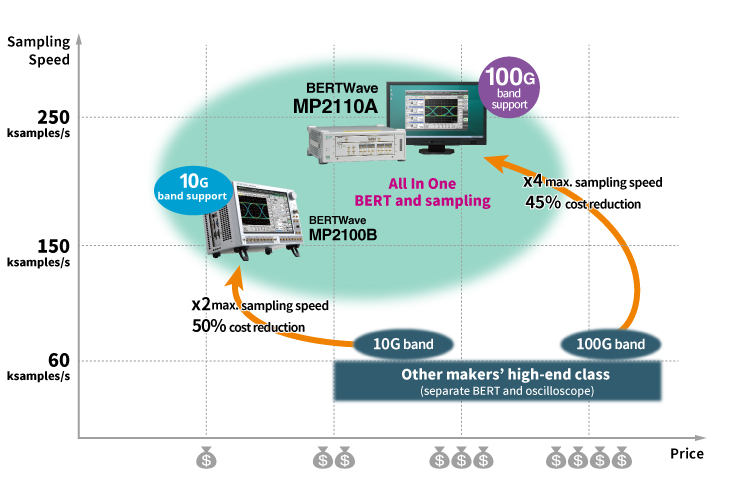

Sampling Speed Positioning

Position of Sampling Speed and Cost.

The MP2110A/MP2100B BERTWave series –All-in-one instruments for measuring BER and analyzing eye patterns of optical modules and devices. Unlike conventional instruments, the fast All-in-one measurements help reduce infrastructure and production costs,save installation space for toverall cost reduction. Check them out for every stage from development to setting up new production lines.

All-in-one BERT and Sampling Oscilloscope

Simultaneous display of BER measurementsand eye patternanalysis of all measurement results for evaluating multi-channel optical modules. Devices can be seen at a glance.

  • All-in-one: BERT and sampling Oscilloscope in one box
  • Freely customized BERT and oscilloscope options and retrofit options

Measurement result screen for BER and Eye Pattern

Easy Optical Module Evaluation

Easy optical module evaluation using simple intuitive GUI settings and at-a-glance total measurement results

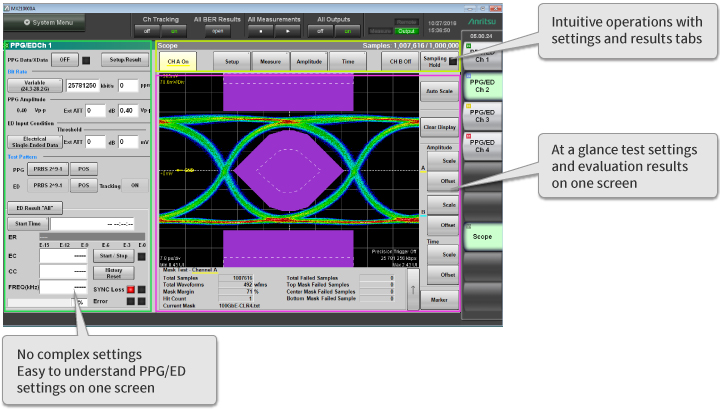

Setting operation of GUI and evaluation result screen

High-Speed Sampling and Mask Margin Measurement

The BERTWave MP2110A supports high sampling speeds of up to 250 ksamples/s for 2ch simultaneously to capture 1 million samples in just 5 seconds, reducing eye pattern analysis times by 65% compared to conventional instruments. In addition, an automatic mask margin test function is built-in as standard.

Reducing Eye Pattern

Comparison of Sampling Speeds

Comparison of Sampling Speed

Sampling Oscilloscope Performance

The BERTWave MP2110A sampling oscilloscope has all the performance needed for measuring optical modules and optical devices used in optical modules such as 100GbE and OTU4.

  • Wide bandwidth
    Optical: 35 GHz (SMF), 25 GHz (MMF);
    Electrical 40 GHz
  • Sensitivity: -15 dBm (typ., SMF)
  • O/E Noise: 3.4 μW (typ. SMF)
  • Intrinsic Jitter: 200 fs rms (typ., with Precision Trigger Option On)

Sampling Speed functions

The wideband O/E assures more accurate drawing of the characteristics of directly modulated optical signals and optical modules for long distance applications.

Accurate drawing due to Optical Module characteristics

In addition, the high sensitivity of –15 dBm (typ., SMF) and low noise of 3.4 µW (typ.) support accurate eye pattern and mask margin measurements even for measurement systems in which signals are attenuated by optical switches, etc. The jitter of just 200 fs rms (typ.) of Precision Trigger Option can be installed too. These excellent performance specifications support more accurate measurements to increase production line yields.

Mask Sensitivity

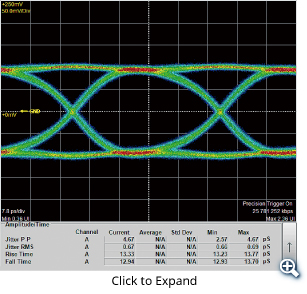

Typical Optical Signal Waveform

Typical Optical Signal Waveform

25.78125 Gbit/s Optical (LN Modulator)(at PRBS 31 with Precision Trigger Option On)

BERT Performance

Wideband Operating Frequency

The BERTWave MP2110A BERT operates at bit rates of 24.3 Gbit/s to 28.2 Gbit/s that can be extended optionally to add bit rates of 9.5 Gbit/s to 14.2 Gbit/s for various applications, including 10 GbE and 100 GbE.

  • Operating Frequency: 24.3 Gbit/s to 28.2 Gbit/s and 9.5 Gbit/s to 14.2 Gbit/s (option)
  • ED with high sensitivity of 25 mV (typ.) for BER measurement of low amplitude signals after passage through DUT
  • Selection of required channel option from 1ch/2ch/4ch
  • Low Jitter PPG (600 fs rms (typ.)) for more accurate DUT performance measurements

PPG/ED Supported Bit Rates and Application Example

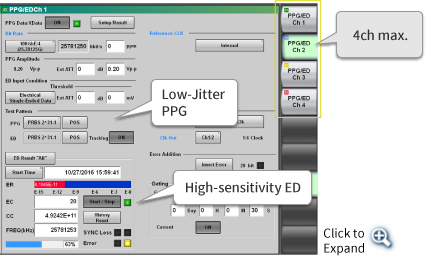

Evaluation screen of Low-jitter and High-sensitivity ED

Additionally, the PPG with a low data Jitter of 600 fs rms (typ.) assures high accuracy measurement of DUT characteristics, including optical modules and devices. With an input sensitivity of 25 mV (typ.), the ED can measure the BER of low amplitude signals after passage through the transmission path to help increase DUT yields.

PPG Typical Waveform

PPG Typical Waveform

25.78125 Gbit/s Electrical Loopback Waveform (PRBS 31, 200 mV Amplitude, Precision Trigger Option On)
