eCall/ERA-GLONASS Solutions: eCall Tester MX703330E
The eCall Tester MX703330E software runs with the MD8475B to simulate the eCall service PSAP. The software emulates eCall communications (MSD communication to Voice call) between the IVS and the PSAP at a traffic accident.
In addition, adding the MSD ERA GLONASS Option MX703330E-031 supports ERA-GLONASS system tests of MSD data communications using SMS.
eCall: Automatic Emergency Call System
IVS: In-vehicle System
MSD: Minimum Set of Data (location, number of passengers etc.)
PSAP: Public Safety Answering Point
■ Test Environment and Target
Test Communications Sequence
The communications sequence between the IVS and PSAP is tested.
Display Communications Status
The status of communications between the IVS and PSAP is displayed.
eCall communications status (MSD call to Voice call)
MSD communications status (In-band modem)
Display and Save Test Results
The eCall execution result is displayed on-screen and saved to a file.
In-band modem sequence
MSD decode data
Compare MSD Decode Data
The set expected reference MSD data is compared with the received MSD data and the results are displayed.

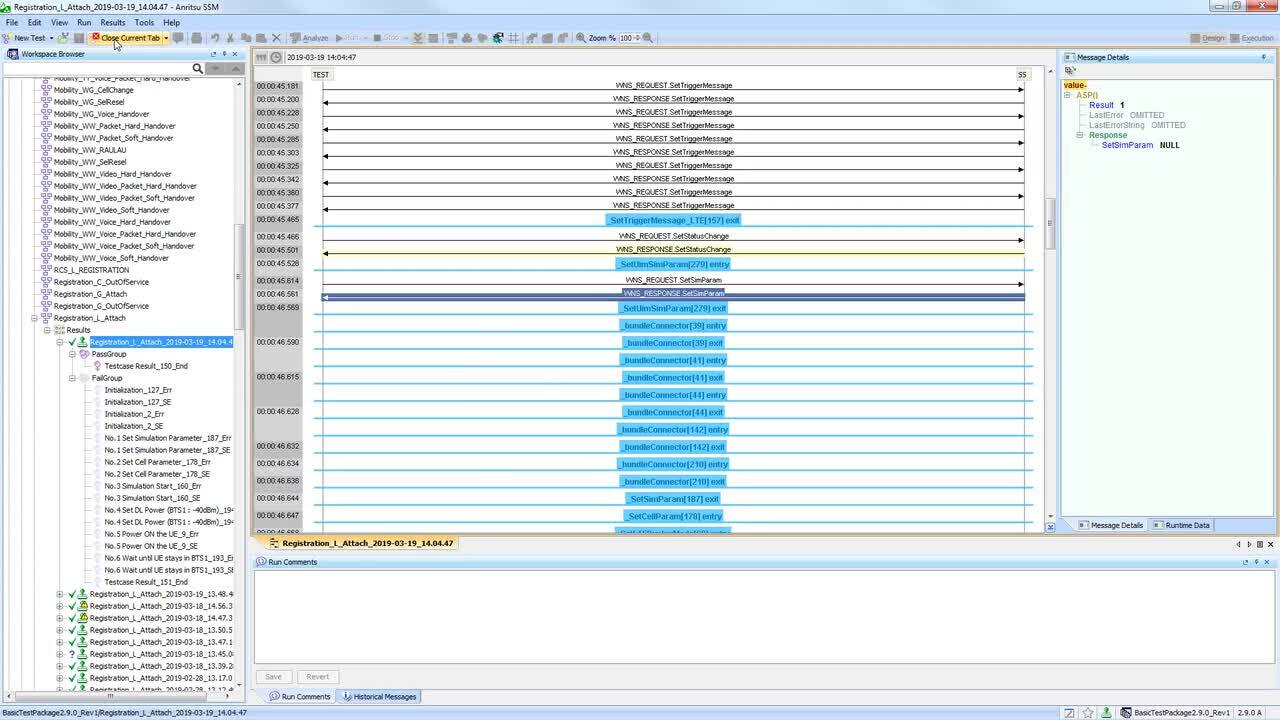

■ User Interface
