32G Signal Integrity Test - Jitter/BERT/Emphasis

Anritsu Test solutions for the most demanding applications

Welcome to a 32 Gbit/s World







    - Infiniband EDR (26G)
- 32G Fibre Channel
- High Speed Back Plane
- Active Optical Cable (AOC)
- Optical Interconnect
  - 100GbE (25Gx4)
- OTU4 (28Gx4)
- 32G DP-QPSK for Long Haul
- CEI-25G, CEI-28G-VSR
- CFP/CFP2, QSFP/QSFP2 Module

See the MP1800A Signal Quality Analyzer with the 32Gbit/s Multi Channel PPG Module



Module Configurations for Multi-Channel BER and Jitter Measurements

MP1800A SQA is a modular BERT with plug-in modules;

  • Pulse Pattern Generator (PPG) supporting high quality output and high amplitude signals
  • Error Detector (ED) with high input sensitivity supporting signal analysis, such as Bathtub and Eye Diagram measurements
  • Jitter Modulation Source (JMS) for generating various types of jitter, such as SJ/RJ/BUJ/SSC, and supporting Jitter Tolerance tests

Wideband bit rates from
up to 32.1 Gbit/s
Multi-channel synchronized
pattern generation and
simultaneous BER analysis
Selection of
channels per
PPG/ED Module

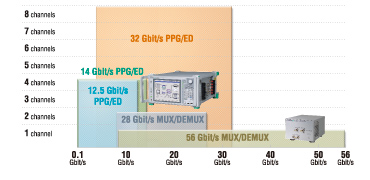

Anritsu Signal Integrity Test Solutions for Every Need

Adding the 32 Gbit/s module to the MP1800A Signal Quality Analyzer supports evaluation of the physical layer for optical modules and high-speed interconnects up to 32.1 Gbit/s. Combined installation with the synthesizer and Jitter modules supports a test environment without external signal generator. Moreover, powerful signal integrity tests at up to 28.1 Gbit/s are supported by linked operation with the MP1825B 4Tap Emphasis. In addition, bit rates are supported down to 0.1 Gbit/s by changing modules as well as up to 56 Gbit/s by connecting an external MUX/DEMUX (MP1821A/MP1822A).



Versatile signal integrity
measurement function
     Excellent signal quality
and Rx sensitivity
     Data patterns
for various application

TJ/DJ/RJ/Bathtub Jitter, Eye Diagram, Eye Margin auto-measurements
32.1 Gbit/s Jitter Tolerance tests
 (using MU181500B supports SJ/RJ/BUJ/SSC generation)
4-tap Emphasis signal generation up to 28.1 Gbit/s (using MP1825B)
Crosstalk testing with independent variable data skew per channel

Low-jitter, High-quality waveforms
Up to 3.5 Vp-p output amplitude enables direct-drive EML
50 mVp-p high input sensitivity Error Detector (ED)

DQPSK, DP-QPSK Pre-coding
Burst Signal tests
Programmable data patterns up to 256 Mbit/channel - CJTPAT, CJPAT, K28.5 etc…



Supports up to 8 channels in 32 Gbit/s Band


Tech Tour   The 4ch PPG and 4ch ED synthesizer configuration supports all-in-one valuation of 4ch TRx devices, cutting total costs and saving space.

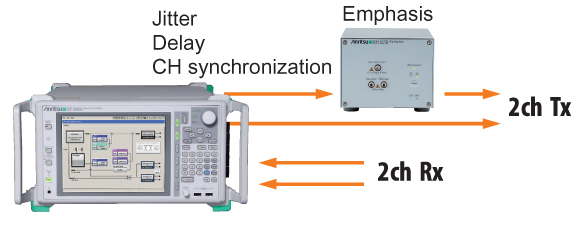

Signal Integrity Analysis using Jitter, Data Delay and 4 Tap Emphasis


Tech Tour Jitter generation, Crosstalk tests using Data Delay, and Emphasis generation are essential tools at signal integrity analysis of high-speed interconnects. As the ideal solution, the all-in-one MP1800A supports a 2ch PPG and 2ch ED configuration with Jitter modulator, synthesizer, and indvidual variable delay functions, while linked operation with the compact MP1825B 4Tap Emphasis gets as close as possible to the DUT.
