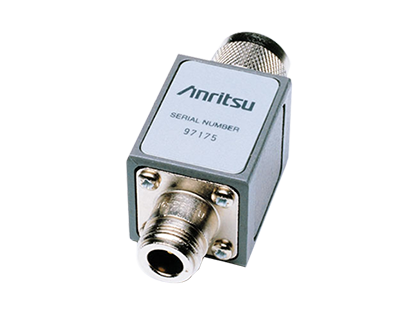

The 12N50-75B matching pad is a two-resistor design that matches 50 ohms to 75 ohms or 75 ohms to 50 ohms circuits.
Model
Frequency Range (MHz)
SWR
Insertion Loss (dB)
Connectors
12N50-75B
DC to 3000
1.25
7.5 max.
N(m) 50 ohms to N(f) 75 ohms
Temperature Range: 0 °C to +70 °CDimensions: 3.8 x 2.5 x 2.5 cm
