All-in-one Solution for Fast, High Sensitivity, Low Jitter Evaluation of Optical Modules
A new single box solution for evaluation of optical modules using high sensitivity, fast sampling oscilloscope, high quality output waveform PPG, and high-input-sensitivity ED
All-in-one max. 4ch 28.2 Gbit/s BERT max. 2ch optical sampling oscilloscope
Integrated BERT and sampling oscilloscope to reduce instrument capital costs
Captures 1 million samples in approx. 5 seconds
Measures optical signals attenuated by peripherals such as optical switches
Sampling Speed Positioning
The MP2110A/MP2100B BERTWave series –All-in-one instruments for measuring BER and analyzing eye patterns of optical modules and devices. Unlike conventional instruments, the fast All-in-one measurements help reduce infrastructure and production costs,save installation space for toverall cost reduction. Check them out for every stage from development to setting up new production lines.
All-in-one BERT and Sampling Oscilloscope
Simultaneous display of BER measurementsand eye patternanalysis of all measurement results for evaluating multi-channel optical modules. Devices can be seen at a glance.
- All-in-one: BERT and sampling Oscilloscope in one box
- Freely customized BERT and oscilloscope options and retrofit options
Easy Optical Module Evaluation

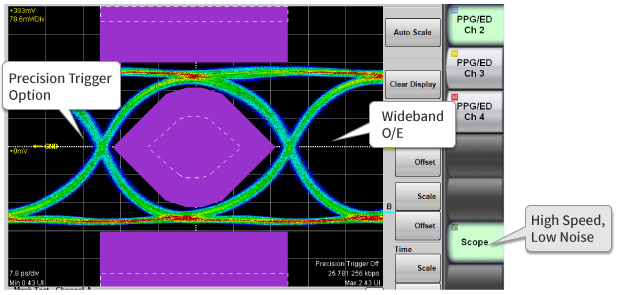

Easy optical module evaluation using simple intuitive GUI settings and at-a-glance total measurement results
High-Speed Sampling and Mask Margin Measurement
The BERTWave MP2110A supports high sampling speeds of up to 250 ksamples/s for 2ch simultaneously to capture 1 million samples in just 5 seconds, reducing eye pattern analysis times by 65% compared to conventional instruments. In addition, an automatic mask margin test function is built-in as standard.
Comparison of Sampling Speeds
Sampling Oscilloscope Performance
The BERTWave MP2110A sampling oscilloscope has all the performance needed for measuring optical modules and optical devices used in optical modules such as 100GbE and OTU4.
- Wide bandwidth
Optical: 35 GHz (SMF), 25 GHz (MMF);
Electrical 40 GHz
- Sensitivity: -15 dBm (typ., SMF)
- O/E Noise: 3.4 μW (typ. SMF)
- Intrinsic Jitter: 200 fs rms (typ., with Precision Trigger Option On)
The wideband O/E assures more accurate drawing of the characteristics of directly modulated optical signals and optical modules for long distance applications.

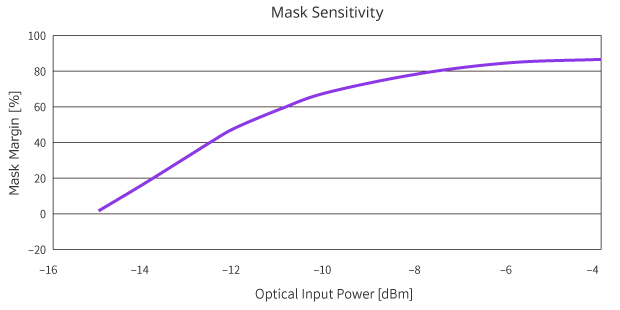

In addition, the high sensitivity of –15 dBm (typ., SMF) and low noise of 3.4 µW (typ.) support accurate eye pattern and mask margin measurements even for measurement systems in which signals are attenuated by optical switches, etc. The jitter of just 200 fs rms (typ.) of Precision Trigger Option can be installed too. These excellent performance specifications support more accurate measurements to increase production line yields.

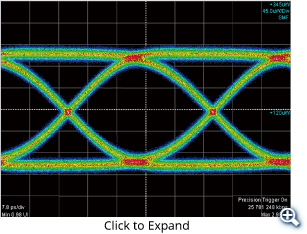

Typical Optical Signal Waveform
25.78125 Gbit/s Optical (LN Modulator)(at PRBS 31 with Precision Trigger Option On)
Wideband Operating Frequency
The BERTWave MP2110A BERT operates at bit rates of 24.3 Gbit/s to 28.2 Gbit/s that can be extended optionally to add bit rates of 9.5 Gbit/s to 14.2 Gbit/s for various applications, including 10 GbE and 100 GbE.
- Operating Frequency: 24.3 Gbit/s to 28.2 Gbit/s and 9.5 Gbit/s to 14.2 Gbit/s (option)
- ED with high sensitivity of 25 mV (typ.) for BER measurement of low amplitude signals after passage through DUT
- Selection of required channel option from 1ch/2ch/4ch
- Low Jitter PPG (600 fs rms (typ.)) for more accurate DUT performance measurements
Additionally, the PPG with a low data Jitter of 600 fs rms (typ.) assures high accuracy measurement of DUT characteristics, including optical modules and devices. With an input sensitivity of 25 mV (typ.), the ED can measure the BER of low amplitude signals after passage through the transmission path to help increase DUT yields.
PPG Typical Waveform
25.78125 Gbit/s Electrical Loopback Waveform (PRBS 31, 200 mV Amplitude, Precision Trigger Option On）
