Thunderbolt Device Evaluation Setup
| Measurement Item |
Supported Software |
| Stressed Signal Calibration |
GRL-TBT3-RXA (Thunderbolt 3) |
| Jitter Tolerance Test |
GRL-TBT3-RXA (Pass/Fail) Evaluation |
Supported Standards: Thunderbolt (2/3)
| DUT |
Jitter Tolerance Test |
Host
Device |
Supported |
Auto-calibration using GRL-TBT3-RXA Software
- One-touch device Jitter Tolerance tests supporting Thunderbolt standard
- Calibration of high-reproducibility test signal and Rx tests
- Auto-control of variable ISI channel and Eye opening calibration
- GUI screen for easy setting of test conditions and test execution
- Built-in PDF format reporting function
Anritsu MP1800A is recognized to recommended test equipment for Thunderbolt Compliance Test.
 |
|
 |
|
 |

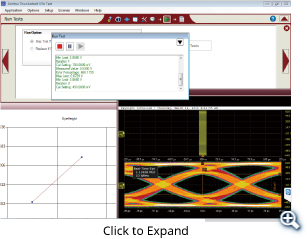

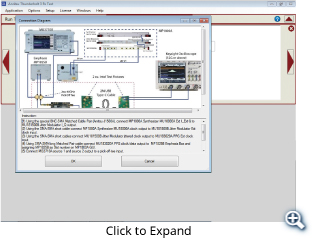

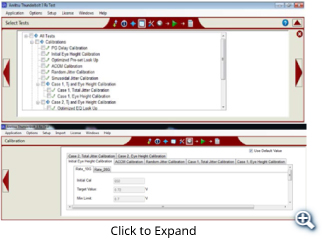

| Calibration Setting and Measurement Screens |
