DC Block

V265

Overview
Specifications
Library

Overview

Description
Features

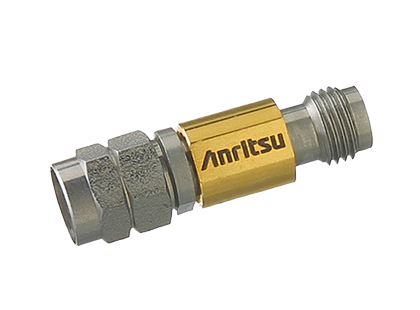

The V265 DC Block has been designed and optimized for optical communications and other high speed pulse, data or microwave applications. Based on the coaxial resilient connection – which is the same as on our V255 Gen II Bias Tee – it provides excellent low frequency response with very low losses and flat group delay over the temperature of operation. Designed to apply AC drive signals to a device while eliminating any DC voltage or current components. The V265 DC Block can be used in isolating DC leakage between two electrical components. The DC block comes with a standard V Connector® and assures excellent impedance match across the wide bandwidth available. A one-year warranty is provided.

Ideal for Optical Communication applications
Low Insertion Loss
Rise Time 3 ps typical

Specifications

Frequency Range	50 KHz — 65 GHz 30 KHz — 65 GHz typical
Insertion Loss	1 dB — 65 GHz typical
Return Loss	13 dB — 65 GHz typical
Rise Time	3 ps typical
Group Delay	84 ±2 ps typical
Max DC Voltage	16 VDC
Max RF Power	1 W
Connectors	RF In: V(f) RF Out: V(m)
Operating Temperature	0 °C — 80 °C
