Passive Intermodulation Analyzers

Passive Intermodulation
PIM is a growing issue for cellular network operators that can exist in existing equipment or in collocated sites. The PIM Master solution is able to fully certify cable and antenna systems performance, measuring PIM, distance-to-PIM, return loss, VSWR, cable loss, and distance-to-fault with a single instrument. Typical applications include: RF components, antenna, macro site cable system, remote radio head site, and distributed antenna systems testing.
Model Number
Output Level

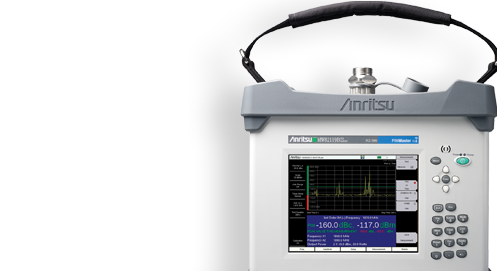

Anritsu PIM Master MW82119B
PIM Master™
600 MHz
700 MHz
800 MHz
850 MHz
900 MHz
1800 MHz
1900/2100 MHz
2100 MHz
2600 MHz
+20 dBm — +46 dBm, adjustable
MT2780A IQ Fiber Master
IQ Fiber Master
Universal (works on all frequency bands) Measurement derived from CPRI IQ data
