X-ray Inspection System

Side View
This product has been discontinued

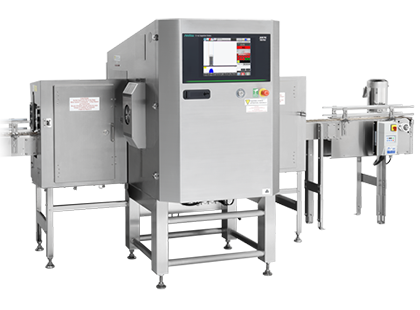

Anritsu Side View X-ray Inspection System is designed for the inspection of tall, rigid products such as pet bottles, gable top cartons, standing pouches, and cups.

Tall Packaged Product Inspection

Anritsu's Side View applies the XR75's renowned detection to rigid and tall products.

Anritsu HD imaging technology is now available for upright products like cartons, foil-lined pouches, aseptic boxes, and PET bottles. HD imaging comes standard with all XR75 machines, providing outstanding detection of both high and low density contaminants as small as 0.5 mm*.
* Actual sensitivity depends on the physical properties of products (contents and shape) and on the conditions.

Tall Packaged Product Inspection

Installation example

Installation example

The Side View X-Ray system with leakage prevention covers mounts over the existing conveyor.
*Leakage prevention covers on right and left sides of the side view x-ray system will be customized according to the shape of the existing conveyor.

Detection Examples

Juice in PET bottle

Juice in PET bottle

Potato chips in composite can

Potato chips in composite can

Ketchup in PET bottles

Ketchup in PET bottles
X-ray Product Top Page X-ray Product Top Page
Overview

The Side View X-ray Inspection System is designed for the inspection of tall, upright products  including plastic bottles and milk cartons. It is a touchless (no curtains) system and mounts over your existing production line, eliminating  jams and product handling issues.


  • For dry/wet products
  • Protection class :IP66
  • X-ray output : max.150W
Detection Areas

For details of detection areas, please submit an online inquiry form.

Model
Detection area
KXE7514BWELE
KXE7514BWELE Detection Areas
External Dimensions

[Example model] Maximum width 150 mm, maximum height 250 mm (KXE7514BWELE)

Side View X-ray Inspection external dimensions

* The above external dimensions are for reference only. The side view x-ray system does not have the conveyor unit. The shape of leakage prevention covers will be changed according to the customer's existing production line.

Specifications
Model
KXE7514BWELE
X-ray output
Tube voltage 30 to 80 kV, tube current 0.4 to 5.0 mA, output 12 to 150 W
Safety
Maximum 1.0 μSv/h or less, prevention of X-ray leakage by safety device
Display
15-inch color TFT LCD
Operation method
Touch panel (with touch buzzer)
Detection area1
Maximum width: 150 mm, maximum height: 250 mm (290 mm is available as an option)
Preset memory
200
Corresponding belt speed2
10 to 120 m/min
Power requirements3
100 Vac to 240 Vac, single phase, 50/60 Hz, 700 VA or less
Mass4
540 kg
Environmental conditions
Temperature: 0°C to 35°C, relative humidity: 30% to 85%, non-condensing
Protection class
Inspection area: IP66 / Other parts: IP40
Casing material
Stainless steel (SUS304)
1: The product size should be within the detection area.
2: Since this model does not have the conveyor unit, it can be used with the existing conveyor at the above belt speed.
3: Allowable power fluctuation range is ±10%.
4: Mass without option (when using the system with straight extension covers. See the above external dimensions).
