Checkweigher

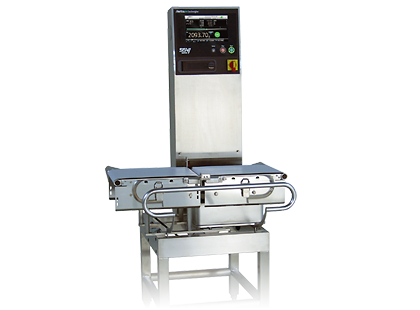

Washdown [SSV-i series]

This product has been discontinued

A waterproof and dustproof stainless exterior is suitable for food production lines that require stringent sanitary control.

Overview
Detection Areas
External Dimensions
Specifications
Library

Overview

Features
Description

Features waterproof and dust-proof cabinet and components. Its hygienic design is perfect for unpackaged and fresh foods which require stringent sanitary control.

Protection class: IP66
Maximum speed: 330 products/min
Maximum accuracy: ±0.1 g

Control panel exterior	Stainless steel	Painted
Conveyor	Waterpoof	Non waterproof
Balance	Force balance	Strain gauge
Frame	Stainless steel	Painted

Detection Areas

The SSV series is available in a variety of models to suit a wide range of products. For details of detection areas, please submit an online inquiry form.

Model	Weighing range （g）	Maximum accuracy（g）	Maximum speed （products/min）	Belt speed （m/min）	Product size
Model	Weighing range （g）	Maximum accuracy（g）	Maximum speed （products/min）	Belt speed （m/min）	Width （mm）	Length （mm）	Height （mm）
KWS6265BW65	6 to 600	+/- 0.1	330	9to 97	20 to 160	60 to 200	5 to 200
KWS6366BW66	12 to 1200 ［12 to 600］	+/- 0.2	220 ［270］	9 to 82 ［9 to 97］	20 to 230	60 to 320	5t to 320
KWS6472BW72	30 to 3000 ［30 to 1200］	+/- 0.1	160 ［220］	7 to 60 ［9 to 82］	20 to 230	76 to 320	5 to 320
KWS5265BW65	6 to 600	+/- 0.2	330	9 to 97	20 to 160	60 to 200	5 to 200
KWS5366BW66	12 to 1200 ［12 to 600］	+/- 0.2	220 ［270］	9 to 82 ［9 to 97］	20 to 230	60 to 320	5 to 320
KWS5472BW72	30 to 3000 ［30 to 1200］	+/- 0.5	160 ［220］	7 to 60 ［9 to 82］	20 to 230	76 to 320	5 to 320
KWS5476BW76	30 to3000 ［30 to 1200］	+/- 0.5	120 ［155］	7 to 65 ［9 to 83］	20 to 350	76 to 450	5 to 450
KWS5677BW77	60 to 15000	+/- 2	70	5 to 38	20 to 350	76 to 450	5 to 450
KWS5678BW77	60 to 15000 ［60 to 3000］	+/- 2	50 ［90］	5 to 36 ［7 to 64］	20 to 350	76 to 600	5 to 600

The speed and accuracy vary according to the products to be weighed and the rejector.

Related Links

Specifications

Model		KWS5366BW66
Weighing range		12 to 1200 g [12 to 600 g] ³
Scale interval		0.05 g
Maximum speed¹		220 [270] products/min
Maximum accuracy（3σ）¹		+/- 0.2 g
Display		8.5-inch color TFT LCD
Operation method		Touch panel (Start, Stop, and Home are direct push buttons)
Indication range		1204.5 g
Preset memory		Maximum 200
Classification		2 or 3
Product size 2²	Width　 W	20 to 230 mm
	Length　L	60 to 320 mm
	Height　H	5 to 320 mm
Belt speed		9 to 82 [9 to 97] m/min
Power requirements		100 to 120 Vac +10% ?15% or 200 to 240 Vac +10% ?15%, single phase, 50/60 Hz, 300 VA, rush current 30 A (typ.) (20 ms or less)
Mass		64 kg
Environmental conditions		0° to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
Protection class		IP66 compliance
Exterior		Stainless steel (SUS304)
Data output		USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)

1: The speed and accuracy vary according to the products to be weighed and the rejector.
3 : [ ] are optional. The maximum weighing range varies according to the operating environment.
Note: The noise level of the checkweighers does not exceed 70 dB (A).
