Frequently Asked Questions


Q) What is the role of Anritsu inspection systems?

A) Delivering safety and security by quality inspection.

There is an increasing demand worldwide that food products should be processed and delivered to the consumers through safe and assured processes. In order to assure food product quality, a series of quality inspections must be performed in food manufacturing lines including the inspection of contaminants, product integrity, and the checkweighing of packaged items. The role of quality inspection systems are to ensure these inspections and to support the quality management.

Making invisible to visible—Anritsu quality inspection systems contribute to consumers' safety and fulfill a role appropriate to the needs of the times.

Delivering safety and security by quality inspection


Q) Where are the inspection systems used?

A) Anritsu inspection systems are mainly used in food and pharmaceutical factories.

Anritsu inspection systems are mainly used in food and pharmaceutical factories ranging from large mass production plants to small and medium size factories and family-run businesses with only a few production lines. Anritsu systems are installed for inspection or weighing processes in those lines.

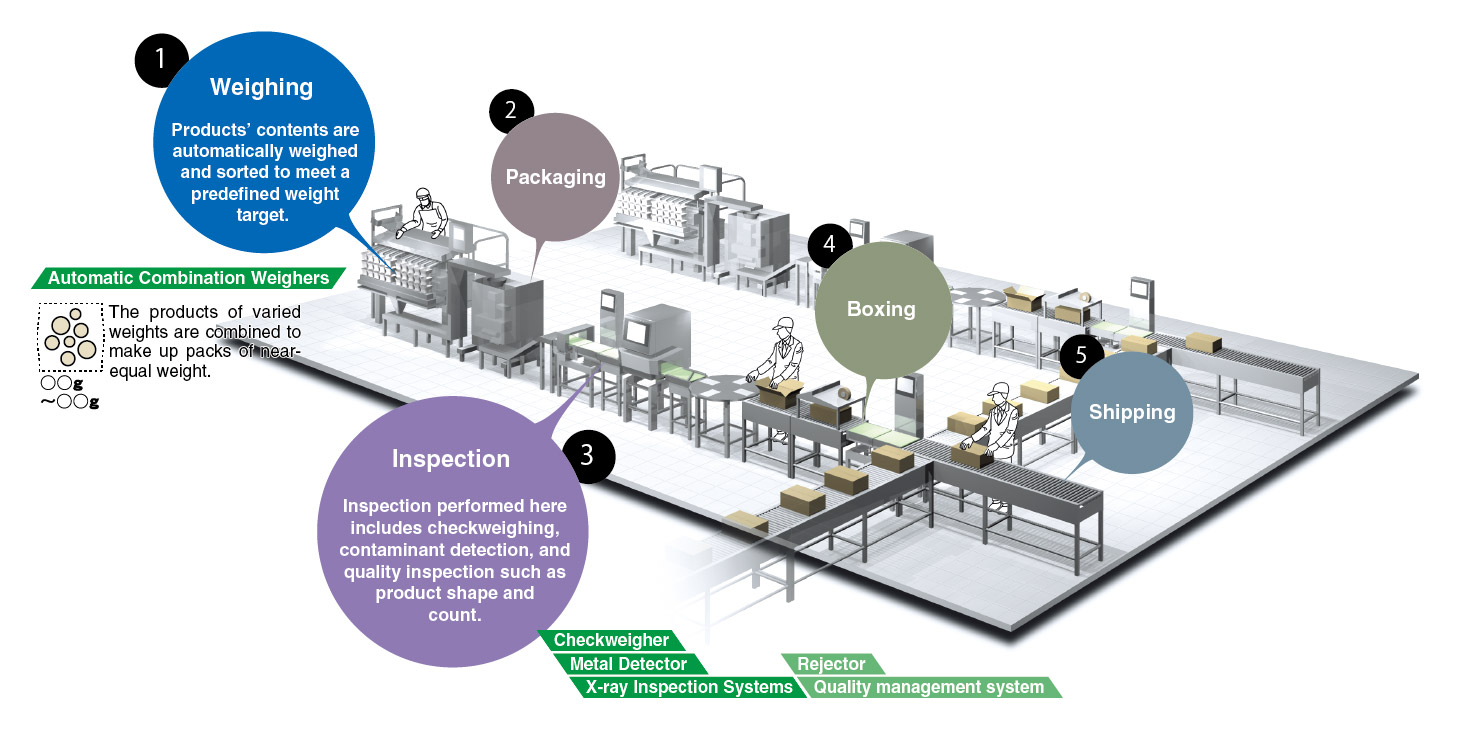

Example of production line

Example of production line

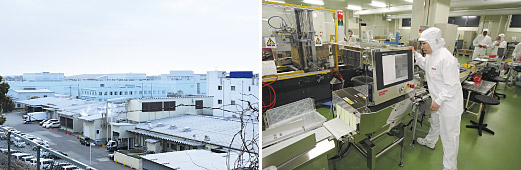

Example of a food factory


Q) What are the inspection systems all about?

A) The brief videos below will help you get an overview of the inspection systems.

X-ray inspection system

X-ray inspection system
Video Play > (No sound, 1 min 40 sec)

Metal detector

Metal detector
Video Play > (No sound, 1 min 30 sec)

Checkweigher

Checkweigher
Video Play > (No sound, 2 min)


Q) How do the inspection systems work?

A) Unlike household appliances, the inspection systems work at production line speeds.

Anritsu's major products are X-ray inspection systems, metal detectors, and checkweighers. Their working principles are similar to household appliances but these industrial inspection systems have a distinctive feature: As installed in manufacturing lines, they perform inspections at production line speeds as high as hundreds of items per minute. Furthermore, the systems identify and reject defective items automtaically.

1. X-ray inspection system

Just like hospital X-rays and airport luggage X-ray machines do, X-ray inspection systems analyze an X-ray image that is obtained by radiating X-rays to an object. However, X-ray inspection systems differ from others in the following points:

  • Automatically performs in-line inspection and rejection at production line speeds
  • Inspection results vary depending on the object to be inspected and contaminants because X-ray absorption depends on the physical properties of the object and contaminants.

2. Metal detector

Metal detectors create magnetic fields and measure the disturbance of the fields when metals enter. Mine detectors and airport metal detectors also work on this principle. However, industrial metal detectors differ from others in the following points:

  • Automatically performs in-line inspection and rejection at production line speeds
  • Capable of detecting minute metal particles as small as less than 1 mm in diameter.

3. Checkweigher

Just like kitchen scales, checkweighers measure the weight of an object but differ from household scales in the following points:

  • Automatically performs in-line weight measurement and rejection at production line speeds
  • Measure the weights of in-motion products in high-speed running production lines.

[For more information]

Glossary (X-ray Inspection System) >

Unlike household appliances, the inspection systems work at production line speeds


Q) In what kind of production lines are the Anritsu inspection systems used?

A) In a range of production lines in the food, pharmaceuticals, and other diverse industries.

Inspection solutions are used mostly for food and pharmaceutical products to ensure the quality and safety of the products we consume. Many industrial and chemical products are also inspected by Anritsu inspection solutions.

Category
Target products
Food
Meat
Block meat
Minced meat Hamburg Sausage Nuggets
Seafoods
Saury Mackerel
Salmon Sardine Mussel Prawn
Octopus
Scallop Oyster Clam Shrimp
Confectionaries
Chocolate
Cookie Gum Ice cream Pudding
Bread
Bread
Sweet bread Dough
Fruits and vegetables
Cut vegetables
Soybean sprout Potato Mushroom Canned food
Jam
Pickles
Seasoning
Powder
Liquid Paste (tube)
Beverage
Bottle
Jar Carton
Dairy products
Milk
Yogurt Cheese Powder milk
Pharmaceuticals
Tablets
Capsule Granules Poultice Ampule
Vial
Infusion bottle Shot set Aerosol can
Industrial products
Car component
Bicycle component Battery Bearing Gum
Wire

Chemical products
Plastic
Powder chemicals Liquid chemicals
Cosmetics
Skin lotion
Face powder Soap
Papers
Diaper
Sanitary goods Non-woven fabric   Book
Fabric goods
Under wear
Towel Curtain Clothe Hat
Others
Toy
Bill Ice

Q) Are there any installation examples available?

A) Anritsu solutions are closely tailored to meet every client's needs. The followings are some examples.

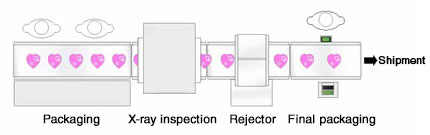

Example 1: X-ray inspection system for chocolate packaging line

Example 1: X-ray inspection system for chocolate packaging line

The Anritsu X-ray inspection system is installed at the chocolate packaging line to identify:

1. Contamination
2. Missing pieces
3. Damaged pieces

The X-ray inspection system inspects 1. to 3. simultaneously. Defective packs are removed by the rejector which handles the packs gently, so that package waste can be minimized.

Missing piece is detected.
Missing piece is detected.

Incomplete pack is gently discharged from line.
Incomplete pack is gently discharged from line.

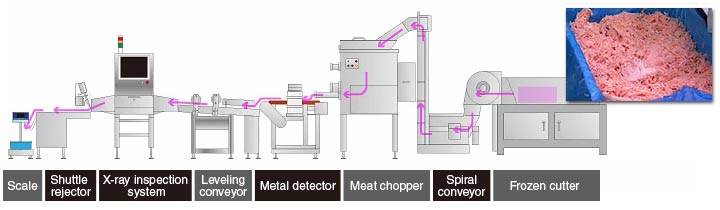

Example 2: X-ray inspection system for minced meat processing line

Example 2: X-ray inspection system for minced meat processing line

This company's minced meat line uses the Anritsu X-ray inspection system to check for metal contaminants and remaining bone fragments in meat. When contaminants are detected, the X-ray inspection system instructs the rejector to remove the meat. The rejector cuts the meat immediately to remove the contaminated part.

Detects a contaminant
Detects a contaminant

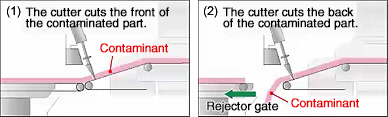

How the rejector works?:The cutter cuts the front of the contaminated area and then the shuttle rejector opens to cut the back of the contaminated area. This minimizes material waste.

How the rejector works?
