PIM Master™


PIM Master™ MW82119B Battery-operated, High Power Portable, Passive Intermodulation Analyzer with optional Cable & Antenna Analyzer


  • Passive Intermodulation (PIM) Analyzer
  • PIM vs. Time, Swept PIM, Distance-to-PIM, Noise Floor
  • Battery Operated: >3 hour
  • 20 dBm (0.1 Watt) to 46 dBm (40 Watt)
  • Field-proven design: Rugged, compact, daylight viewable display
  • Compatible with SweepMasters SkyBridge Tools cloud-based trace management tool
  • Standard three-year warranty (battery one-year warranty)


  • Site Master™ Cable and Antenna Analyzer
    • 2 MHz – 3 GHz
    • Return Loss, VSWR, Cable Loss, Distance-to-Fault, Smith Chart, 1-Port Phase
  • GPS, High Accuracy Power Meter

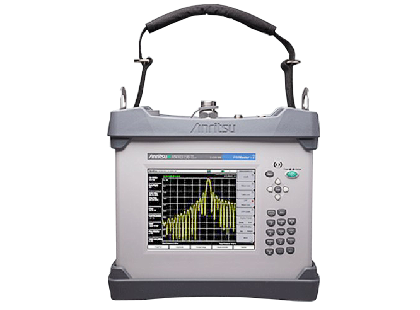

PIM Master™ B-series is a 40 Watt, battery-operated PIM analyzer featuring Site Master™ line sweep capability. With the Site Master option included, the PIM Master is able to fully certify cable and antenna system performance, measuring PIM, Distance-to-PIM, Return Loss, VSWR, Cable Loss and Distance-to-Fault with a single test instrument.PIM Master includes a large, outdoor viewable display and intuitive user interface that is optimized for field conditions. PIM Master’s rugged design and enhanced portability enables both PIM and line sweep testing at the “top-of-the-tower,” helping operators to achieve maximize RF performance from their LTE Remote Radio Head (RRH) installations.

PIM Analyzer frequency options:

  • LTE 700 MHz (North America, Upper & Lower)
  • APT 700 MHz
  • LTE 800 MHz
  • Cellular 850 MHz
  • E-GSM 900 MHz
  • E-GSM 900 MHz with IM 2 (China)
  • DCS 1800 MHz
  • PCS/AWS 1900/2100 MHz
  • UMTS 2100 MHz
  • LTE 2600 MHz

PIM Analyzer measurements:

  • PIM vs. Time
  • Swept PIM
  • Distance-to-PIM (DTP)
  • Noise Floor

Cable and Antenna Analyzer measurements: (Option 331)

  • Return Loss
  • VSWR
  • Cable Loss
  • Distance-to-Fault (DTF)
  • Smith Chart
  • 1-Port Phase

Line Sweep Tools (LST)
Anritsu Line Sweep Tools (LST) is the latest generation of Handheld Software Tools, an industry standard. This PC based post-processing software efficiently manipulates line sweep and PIM traces for reporting purposes.

Wireless Remote Tools
Wireless Remote Tools™ is Anritsu's remote control software, available as a free download. It works with many of our Handheld RF Instruments. The Wireless Remote Tools software allows users to wirelessly monitor and control a wide range of Anritsu handheld RF instruments. Wireless Remote Tools provides a solution for the times when it is not practical to be close to the instrument.


Cable and antenna systems are a critical link in any wireless communications network. The quality of the components deployed and the care in which they are installed has a significant impact on network performance, site reliability and ultimately, customer satisfaction. To operate at maximum potential, the cable and antenna system must pass RF signals between mobile subscribers and the BTS as efficiently as possible (minimum loss, minimum reflections),and without generating unwanted noise (Passive Intermodulation.)

Typical applications include:

  • RF Component testing
  • Antenna testing
  • Macro site cable system testing
  • Remote Radio Head (RRH) site testing
  • Distributed Antenna System (DAS) testing
   Option Description
MW82119B-0700 LTE 700 MHz (North America)
MW82119B-0701 APT 700 MHz
MW82119B-0800 LTE 800 MHz
MW82119B-0850 Cellular 850 MHz
MW82119B-0900 E-GSM 900 MHz
MW82119B-0902 E-GSM 900 MHz w/ IM 2
MW82119B-0180 DCS 1800 MHz
MW82119B-0194 PCS/AWS 1900/2100 MHz
MW82119B-0210 UMTS 2100 MHz
MW82119B-0260 LTE 2600 MHz
MW82119B-0331 Site Master Cable and Antenna Analyzer option
MW82119B-0019 High Accuracy Power Meter (requires USB power sensor)
MW82119B-0031 GPS Receiver (requires GPS antenna)
MW82119B-0098 Standard Calibration to ISO 17025 and Z540.1
MW82119B-0099 Premium Calibration to ISO 17025 and Z540.1 plus test data
