T-PAD

Z-164A
此產品已停產
Overview

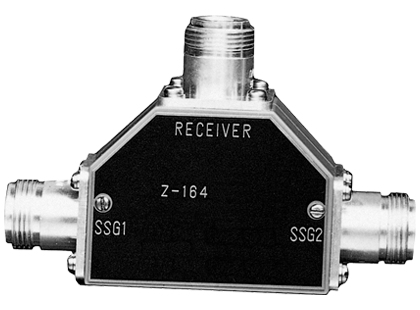

The Z-164A is used as a matching pad for applying the mixed output of two signal generators to the input terminal of a receiver for measuring two-signal characteristics (such as the blocking and intermodulation characteristic) of the receiver.
  • Frequency Range: DC to 1 GHz
  • Impedance: 50 Ω
  • Connector: N-J
  • Insertion Loss: 6 ±0.5 dB
