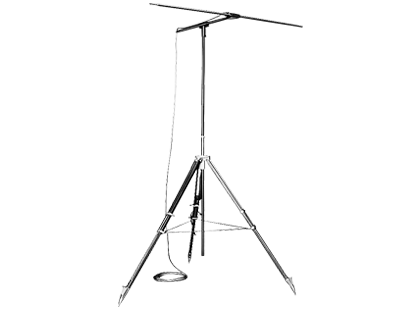

Dipole Antennas

MP534A/B MP651A/B MP663A
此產品已停產
Overview

Model

MP534A/B

MP651A/B

MP663A

Maximum Input Power

1 W (25 to 520 MHz)

10 W (250 to 500 MHz)

10 W

Frequency range

25 to 520 MHz

470 to 1700 MHz

300 to 1000 MHz

Dimensions

200 x 370 x 1300 mm

50 x 70 x 500 mm

80 x 120 x 640 measurement

Weight

≤11 kg

≤2.5 kg

≤8 kg

  • Half-wave dipoles
  • Input impedance
    • 50 Ω
    • N-type connector
  • VSWR
    • ≤2
  • Average relative gain
    • 0 dB
  • Front-to-back ratio
    • 0 dB
