Area Scanner

ML8741B
此產品已停產
Overview
  • Features two simultaneous measurement and frequency diversity
  • Sample analysis by high-speed high-precision Area
  • BCH by demodulator alarm information check
  • 5 hours battery operation

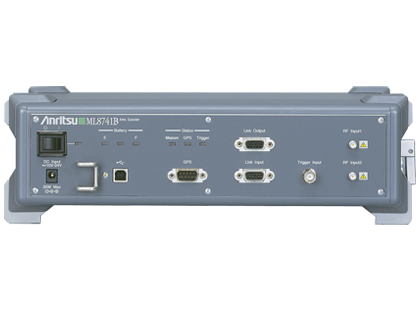

ML8741B Area Scanner is the scanner for a test drive is done during the optimization of base station area.  The high hardware performance, measured in high-interference environments, so you can get a reliable radio propagation characteristics, can be optimized without wasting area.
Frequency measurements by two options, two different frequencies is W-CDMA base stations can be measured simultaneously.  You can dramatically improve the efficiency of drive test data collection.
In addition, BCH by demodulator software, be sure to set the value of the cell base station and traffic information, and discovery of base stations can not afford to traffic can be configured to prevent leakage.

Frequency range RF input connector:
2110 ~ 2170 MHz * 1 (CW, spectrum monitor, and W-CDMA Measurement)
1805 ~ 1880 MHz * 2 (CW, spectrum monitor, and W-CDMA Measurement)

Two RF input connector:
2110 ~ 2170 MHz * 1 (ML8741B-002 in with W-CDMA Measurement)
1805 ~ 1880 MHz * 2 (ML8741B-002 in with W-CDMA Measurement)
Impedance  50Ω  (SMA connector)
Frequency setting  W-CDMA measurement: 100 kHz
Spectrum monitor: 1 kHz
CW measurements: 100 kHz
Received signal  W-CDMA measurement: P-CPICH, S-CPICH, P-SCH, S-SCH, P-CCPCH (BCH during demodulation)
Power Measurement

Range
W-CDMA measurement: -117 ~ -33 dBm (RF input connector 1, RF input connector end 2)
Spectrum monitor: -123 ~ -33 dBm (RF input connector on one end)
CW measurement mode: -117 ~ -33 dBm (RF input connector on one end)
Resolution: 0.1 dB
Display units: dBm, dBμV, dBμV / m (CW-time spectrum monitoring and measuring instruments)

W-CDMA measurement accuracy
CPICH_RSCP ± 1 dB (Typ.) (23 ℃ ± 5 ℃)
CPICH_SIR ± 2 dB (Typ.) (23 ℃ ± 5 ℃)
SCH_RSCP ± 2 dB (Typ.) (23 ℃ ± 5 ℃)

Spectrum monitor
Accuracy ± 1 dB (Typ.) (23 ℃ ± 5 ℃)
Noise level -127 dBm (RBW 4kHz)
CW angle measurements ± 1 dB (Typ.) (23 ℃ ± 5 ℃)
Dynamics 0 ~ 100 km / h when driving CPICH_RSCP, CPICH_SIR accuracy (average distance of 50 m)

Measurement items  Specify measuring base stations, base station non-specific measurement, spectrum monitor, CW measurement

* 1: MX874100B only function when installed
* 2: MX874103B only function when installed
