Test Port Cables 3671 Series

Test Port Cables

3671 Series
이 제품은 생산 중단되었습니다
Overview
Description Frequency Range Impedance Insertion Loss
(dB)
Typical
Return
Loss
(dB)
Typical
Phase Stability
(± degrees)
Typical
Length Part Number
K (f) — 3.5 mm (m)

K (f) — 3.5 mm (f)
DC —
20 GHz
50 Ω ≤ 1.8 ≥ 18  ≤ ± 4.0 (1 coil) 60 cm
(23.6 in)
3671KFS50-60

3671KFSF50-60
K (f) — K (m)

K (f) — K (f)
DC —
40 GHz
50 Ω ≤ 3.4 ≥ 16 ≤ ± 3.7 (½ coil) 60 cm
(23.6 in)
3671KFK50-60

3671KFKF50-60
K (f) — K (m) DC —
40 GHz
50 Ω ≤ 5.0 ≥ 16 ≤ ± 7.3 (1 coil) 100 cm
(39.4 in)
3671KFK50-100
V (f) — V (m)

V (f) — V (f)
DC —
70 GHz
50 Ω ≤ 5.95 ≥ 14 ≤ ± 8.5 (½ coil) 60 cm
(23.6 in)
3671VFV50-60

3671VFVF50-60
K (f) — K (m) DC —
70 GHz
50 Ω ≤ 9.3 ≥ 14 ≤ ± 10.5 (1 coil) 100 cm
(39.4 in)
3671VFV50-100

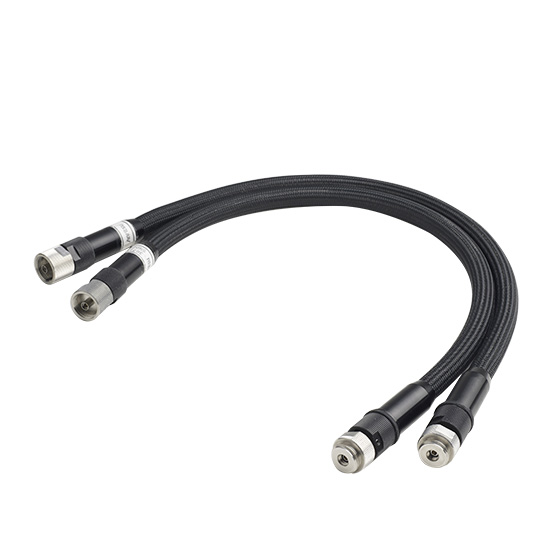

3671-Series Test Port Cables, Flexible, Phase Stable, up to 70 GHz
