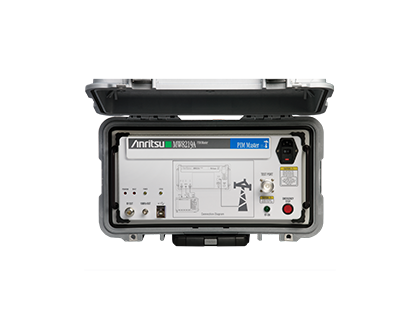

MW8219A

PIM Master™

MW8219A
This product has been discontinued Replacement Model(s) : MW82119A
Overview

PIM Master MW8219A for the 1900/2100 MHz PCS/AWS frequency bands

Anritsu Company introduces its first generation high performance PIM testing solution, the MW8219A, for the 1900/2100 MHz PCS/AWS frequency bands. Anritsu has developed the PIM Master to verify if receiver interference at a cell site is due to an intermodulation product of two or more transmit frequencies, also known as passive intermodulation (PIM).

The Anritsu PIM Master features patented technology – Distance-to-PIM™. In just a few seconds, Distance-to-PIM can find the distance and relative magnitude of all static PIM sources in an antenna system and beyond the antenna. Only Distance-to-PIM can find the location of:

  • Dirty connectors
  • Corroded connectors
  • Over torqued connectors
  • Microscopic arcing connectors
  • PIM outside the antenna system

PIM is power sensitive, and today there is more power than ever going up the tower. PIM Master features 2 x 40 Watts of RF power to activate the PIM, making it more visible to find the PIM that cannot be found on traditional 20 Watt PIM testers.

When you have to find PIM, and find it fast, the Anritsu PIM Master is your best solution with 40 Watts of power and patented Distance-to-PIM.
