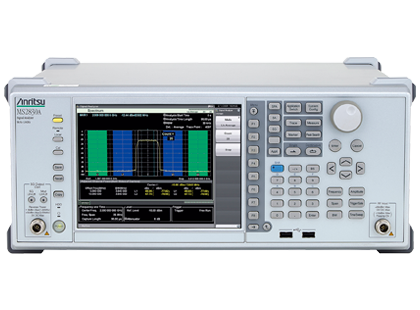

Signal Analyzer MS2830A

Spectrum Analyzer/Signal Analyzer

MS2830A
This product has been discontinued
Overview

Basic Performance

Items Specifications
 Frequency  Frequency range  9 kHz to 3.6 GHz (MS2830A-040)
 9 kHz to 6 GHz (MS2830A-041)
 9 kHz to 13.5 GHz (MS2830A-043)
*: See also MS2830A Microwave models; 9 kHz to 26.5 GHz/43 GHz (MS2830A-044/045)
 SSB phase noise
 (500 MHz)
 +18º to +28ºC
 -115 dBc/Hz (100 kHz offset)
 -133 dBc/Hz (1 MHz offset)
 -109 dBc/Hz (1 kHz offset, with opt. 066)
 -118 dBc/Hz (10 kHz offset, with opt. 066)
 -133 dBc/Hz (100 kHz offset, with opt. 066)
 SSB phase noise
 (220 MHz)
 -122 dBc/Hz (25 kHz offset, with opt. 066)
 General  Dimensions and mass  426 (W)× 177 (H)× 390 (D) mm (Exclusive of surface projection)
 ≤14.5 kg (with MS2830A-040/041, and MS2830A-020/021, excluding other options)
 ≤13.5 kg (with MS2830A-043, excluding other options)



Spectrum Analyzer

Items Specifications
  Frequency  Resolution bandwidth
 (RBW)
 Setting range: 1 Hz to 3 MHz (1-3 sequence), 50 kHz, 5 MHz, 10 MHz,
 20 MHz, 31.25 MHz
 Resolution bandwidth
 (CISPR RBW)
 with MS2830A-016
 Setting range: 200 Hz (6 dB), 9 kHz (6 dB), 120 kHz (6 dB),
                           1 MHz (Impulse)
  Amplitude  Displayed average
 noise level (DANL)
 Detector = Sample, VBW = 1 Hz (Video Average),
 Input attenuator 0 dB, +18º to +28ºC
 without MS2830A-008, or Preamp: Off
 -134 dBm/Hz (100 kHz)
 -144 dBm/Hz (1 MHz)
 -153 dBm/Hz (30 MHz ≤ f < 1 GHz)
 -151 dBm/Hz (1 GHz ≤ f < 2.4 GHz)
 -149 dBm/Hz (2.4 GHz ≤ f ≤ 3.5 GHz)
 -146 dBm/Hz (3.5 GHz < f ≤ 6 GHz), [MS2830A-041/043]
 -142 dBm/Hz (6 GHz < f ≤ 13.5 GHz), [MS2830A-043]
 Total absolute
 amplitude accuracy
 +18º to +28ºC
 ±0.5 dB (300 kHz ≤ f < 4 GHz, Frequency band mode: Normal)
                (300 kHz ≤ f < 3.5 GHz, Frequency band mode: Spurious)
 ±1.8 dB (4 GHz ≤ f ≤ 13.5 GHz, Frequency band mode: Normal)
                (3.5 GHz ≤ f ≤ 13.5 GHz, Frequency band mode: Spurious)
 Spurious
 responses
 2-tone 3rd-order
 intermodulation
 distortion
 +18º to +28ºC, ≥300 kHz separation
 without MS2830A-008, or Preamp: Off,
 Mixer input level: -15 dBm (1wave)
 TOI = +12 dBm (30 MHz ≤ f < 300 MHz)
 TOI = +15 dBm (300 MHz ≤ f < 3.5 GHz)
 TOI = +14 dBm (3.5 GHz ≤ f ≤ 6 GHz)
 TOI = +10 dBm (6 GHz < f ≤ 13.5 GHz)



Vector Signal Analysis (VSA) Function

Items Specifications
 General  Trace mode  Spectrum, Power vs. Time, Frequency vs. Time, Phase vs. Time, CCDF,
 Spectrogram, No Trace
 Analysis bandwidth  1 kHz to 10 MHz (1-2.5-5 sequence), [with MS2830A-006]
 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25MHz, [with MS2830A-005]
 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz [with MS2830A-077]
 1 kHz to 25 MHz (1-2.5-5 sequence), 31.25 MHz, 50 MHz, 62.5 MHz, 100 MHz, 125 MHz
    [with MS2830A-078]
 Note: An image response is received when setting the bandwidth to more than
           31.25 MHz.
           This can be used when not inputting a signal frequency outside the MS2830A
           analysis bandwidth (125 MHz max.).
           The MS2690A/91A/92A Signal Analyzer series is recommended for other
           measurement purposes.
 Sampling rate  2 kHz to 20 MHz (1-2-5 sequence), [with MS2830A-006]
 2 kHz to 50 MHz (1-2-5 sequence), [with MS2830A-005]
 2 kHz to 100 MHz (1-2-5 sequence) [with MS2830A-077]
 2 kHz to 200 MHz (1-2-5 sequence) [with MS2830A-078]
 Maximum capture time  0.5 s to 2000 s (determined according to analysis bandwidth)
 Spectrum
 displayed
 function
 Resolution bandwidth
 (RBW)
 Setting range: 1 Hz to 1 MHz (1-3 sequence)
                           [without MS2830A-077/078, or ≤31.25 MHz bandwidth]
 Setting range: 1 Hz to 3 MHz (1-3 sequence)
                           [with MS2830A-077, >31.25 MHz bandwidth]
 Setting range: 1 Hz to 10 MHz (1-3 sequence)
                           [with MS2830A-078, >31.25 MHz bandwidth]
 Displayed average
 noise level (DANL)
 +18º to +28ºC
 without MS2830A-008, or with MS2830A-008, Preamp: Off
 -131.5 dBm/Hz (100 kHz)
 -141.5 dBm/Hz (1 MHz)
 -150.5 dBm/Hz (30 MHz ≤ f < 1 GHz)
 -148.5 dBm/Hz (1 GHz ≤ f < 2.4 GHz)
 -146.5 dBm/Hz (2.4 GHz ≤ f ≤ 3.5 GHz)
 -143.5 dBm/Hz (3.5 GHz < f ≤ 6 GHz), [MS2830A-041/043]
 -139.5 dBm/Hz (6 GHz < f ≤ 13.5 GHz), [MS2830A-043]
 Total absolute
 amplitude accuracy
 +18º to +28ºC
 ±0.5 dB (300 kHz ≤ f < 4 GHz, Frequency band mode: Normal)
                (300 kHz ≤ f < 3.5GHz, Frequency band mode: Spurious)
 ±1.8 dB (4 GHz ≤ f ≤ 13.5 GHz, Frequency band mode: Normal)
                (3.5 GHz ≤ f ≤ 13.5 GHz, Frequency band mode: Spurious)
 Measure function  Adjacent channel power (ACP), Channel power, Occupied bandwidth (OBW)
 Digitize function  Captured waveform data (each 32 bit, Float binary type) saved to internal HDD
 or output to external devices



MS2830A-020/021 Vector Signal Generator

Items Specifications
 Frequency  Range  250 kHz to 3.6 GHz [MS2830A-020]
 250 kHz to 6 GHz [MS2830A-021]
 Resolution  0.01 Hz
 Output level  Setting range  -40 to +20 dBm (>25 MHz), -40 to +2 dBm (≤25 MHz)
   [without MS2830A-022]
 -136 to +15 dBm (>25 MHz), -136 to -3 dBm (≤25 MHz)
   [with MS2830A-022]
 Output level accuracy  +18º to +28ºC
 without MS2830A-022
    ±0.5 dB (typ., 25 MHz < f < 375 MHz)  -40 dBm ≤ p ≤ +9 dBm
    ±0.5 dB (375 MHz ≤ f ≤ 3.6 GHz)  -40 dBm ≤ p ≤ +9 dBm
    ±0.8 dB (>3.6 GHz)  -40 dBm ≤ p ≤ +4 dBm
 with MS2830A-022
    ±0.5 dB (typ., 100 MHz ≤ f < 375 MHz)  -110 dBm ≤ p ≤ +4 dBm
    ±0.5 dB (375 MHz ≤ f ≤ 3.6 GHz)  -110 dBm ≤ p ≤ +4 dBm
    ±0.8 dB (>3.6 GHz)  -110 dBm ≤ p ≤ -1 dBm
    ±1.0 dB (100 MHz ≤ f ≤ 3.6 GHz)  -120 dBm ≤ p < -110 dBm
    ±1.0 dB (typ., 100 MHz ≤ f ≤ 3.6 GHz)  -127 dBm ≤ p < -120 dBm
    ±2.5 dB (typ., >3.6 GHz)  -127 dBm ≤ p < -110 dBm
 Linearity  18º to 28ºC, CW
 without MS2830A-022, Referenced to -10 dBm output
 ±0.2 dB (typ., ≤3.6 GHz)  -40 dBm ≤ p ≤ -10 dBm
 ±0.3 dB (typ., >3.6 GHz)  -40 dBm ≤ p ≤ -10 dBm
 Arbitrary
 waveform
 generator
 Waveform resolution  14/15/16 bits
 Internal baseband
 reference clock
 Range: 20 kHz to 160 MHz, Resolution: 0.001 Hz
 Waveform memory  64 Msamples
 256 Msamples (MS2830A-027)
 RF Modulation Bandwidth  120 MHz (Pre-installed Baseband Generator)
  • Top-class spectrum analyzer measurement speed
  • Provides ±0.3dB (typ.) total level accuracy
  • Best-in-class dynamic range
  • Spectrum analyzer supporting built-in vector signal generator, analog signal generator, audio analyzer and modulation analysis (options)
  • Offers modulation analysis, such as LTE/LTE-Advanced (FDD/TDD), Mobile WiMAX, WLAN IEEE802.11a/11b/11g/11j/11n/11p/11ac and FM/ΦM/AM (with optional software)
  • Noise Figure, BER and Transmission Characteristics measurement (options)
  • Excellent eco-friendly product with low power consumption of 110 VA min.

    Related Products: 26.5 GHz/43 GHz Models

Anritsu’s MS2830A Spectrum/Signal Analyzer with optional built-in vector signal generator (VSG) is a flexible, compact one-box Tx and Rx test solution. It supports most common digital and analog technologies used in Cellular, Land Mobile Radio/Public Safety Radio and IoT/M2M wireless communications. MS2830A’s unique Capture & Playback functionality allows enables the user to capture real world signals in the field and then recreate them in the lab or on the production line.

The MS2830A offers the performance and measurement speed of a high-end test instrument for the price of a mid-range instrument. Features include:

  • Best-of-class dynamic range and total level accuracy minimize measurement uncertainty and maximize production yield
  • Wide variety of built-in measurement functions, including channel power, occupied bandwidth, adjacent channel leakage power, spurious emissions, and much more
  • Option MS2830A-066 greatly improves phase noise for signals below 3.6 GHz, enabling unmatched performance for the most challenging narrowband adjacent channel leakage power and spurious emissions tests
  • Optional wideband vector signal analysis enables frequency vs. time, phase vs. time, spectrogram, and CCDF measurements
  • Supports comprehensive vector modulation analysis of proprietary and standard wireless communications signals, including 3GPP LTE/LTE-Advanced, UMTS W-CDMA, EDGE, GSM, cdma2000, IEEE 802.11a/b/g/j/n/p/ac, Mobile WiMAX, Bluetooth, ZigBee, P25 Phase 1 & 2, DMR, NXDN and ITU-R Positive Train Control
  • Optional integrated vector signal generator produces continuous wave and I/Q modulated signals to support Tx and Rx testing
  • Option MS2830A-018 Audio Analyzer enables complete Tx and Rx testing for analog radios, eliminating the need for a dedicated instrument
  • Option MS2830A-017 Noise Figure Measurement Function and MS2830A-008 Preamplifier enable precise noise figure measurements


Brochure

■Key Performance

Frequency Range MS2830A-040: 9 kHz to 3.6 GHz
MS2830A-041: 9 kHz to 6 GHz
MS2830A-043: 9 kHz to 13.5 GHz
Total Level Accuracy ±0.3 dB typ. (include ATT switching deviation + frequency response)
*Note general "absolute" amplitude accuracy does not include ATT switching deviation and frequency response.
Dynamic Range 168 dBm*1
Third-Order Intermodulation Distortion[TOI*2]: +15 dBm
Average Noise Level[DANL*3]: -153 dBm/Hz
Adjacent Channel Leakage Power [ACLR] -78 dBc (W-CDMA: with noise cancellation function ON)
SSB Phase Noise -109 dBc/Hz (@ 500 MHz, 1 kHz offset, with MS2830A-066)
-118 dBc/Hz (@ 500 MHz, 10 kHz offset, with MS2830A-066)
-133 dBc/Hz (@ 500 MHz, 100 kHz offset, with MD2830A-066)
-122 dBc/Hz (@ 220 MHz, 25 kHz offset, with MS2830A-066)
*Important for measuring proximity spurious, phase noise, and narrowband communications

■ Signal Analyzer Function (MS2830A-005/006/077/078)

Analysis Bandwidth 10, 31.25, 62.5, 125 MHz
Note:An image response is received when setting the bandwidth to more than 31.25 MHz.
    This can be used when not inputting a signal frequency outside the MS2830A analysis bandwidth (125 MHz max.).
    The MS2690A/91A/92A is recommended for other measurement purposes.


■ Vector Signal Generator (MS2830A-020/021)

Frequency Range MS2830A-020: 250 kHz to 3.6 GHz
MS2830A-021: 250 kHz to 6 GHz
Arbitrary waveform generator RF Modulation Bandwidth: 120 MHz (Pre-installed Baseband Generator)
Internal baseband reference clock: 20 kHz to 160 MHz
Level Accuracy ±0.5 dB (typ.)
Large-capacity Memory 256 MB = 64 Msamples/channel
1 GB = 256 Msamples/channel (MS2830A-027)
Internal AWGN Generator (MS2830A-028)

■ Analog Signal Generator (MS2830A-088)

Frequency Range 100 kHz to 3 GHz

■ BER measurement function (MS2830A-026)

Input Bit Rate 100 bps to 10 Mbps
Input Level TTL 3.3 V


*1: Difference between TOI and DANL as simple reference
*2: TOI (Third Order Intercept)
*3: DANL (Displayed Average Noise Level)
solutions
 Application  Name/Functions  Model No.  Brochure  Product Introduction  Others
 Spectrum Analyzer  3.6 GHz Signal Analyzer
 6 GHz Signal Analyzer
 13.5 GHz Signal Analyzer
 MS2830A-040
 MS2830A-041
 MS2830A-043
 Download  Download
 Signal Analyzer  Analysis Bandwidth Extension to 31.25 MHz; (Requires MS2830A-006)
 Analysis Bandwidth 10 MHz
 Analysis Bandwidth Extension to 62.5 MHz
 (Requires MS2830A-006,005)
 Analysis Bandwidth Extension to 125 MHz
 (Requires MS2830A-006,005,077)
 MS2830A-005

 MS2830A-006
 MS2830A-077

 MS2830A-078

 Download
 LTE/LTE-Advanced (FDD)  LTE Downlink Measurement Software  MX269020A  Download  Download
 LTE-Advanced FDD Downlink Measurement Software  MX269020A-001
 LTE Uplink Measurement Software  MX269021A
 LTE-Advanced FDD Uplink Measurement Software  MX269021A-001
 LTE IQproducer  MX269908A  Download  Download
 LTE-Advanced FDD Option  MX269908A-001
 LTE/LTE-Advanced (TDD)  LTE TDD Downlink Measurement Software  MX269022A  Download  Download
 LTE-Advanced TDD Downlink Measurement Software  MX269022A-001
 LTE TDD Uplink Measurement Software  MX269023A
 LTE-Advanced TDD Uplink Measurement Software  MX269023A-001
 LTE TDD IQproducer  MX269910A  Download  Download
 LTE-Advanced TDD Option  MX269910A-001
 W-CDMA/HSPA/HSPA
 Evolution
 W-CDMA/HSPA Downlink Measurement
 Software
 MX269011A  Download  Download
 W-CDMA/HSPA Uplink Measurement
 Software
 MX269012A  Download  Download
 W-CDMA IQproducer  Standard function  Download
 HSDPA/HSUPA IQproducer  MX269901A  Download  Download
 W-CDMA/HSPA  W-CDMA BS Measurement Software  MX269030A  Download
 GSM/EDGE  GSM/EDGE Measurement Software  MX269013A  Download  Download
 EDGE Evolution Measurement Software  MX269013A-001
 TD-SCDMA  TD-SCDMA Measurement Software  MX269015A  Download
 TD-SCDMA IQproducer  MX269912A  Download  Download
 CDMA2000  CDMA2000 Forward Link Measurement
 Software
 MX269024A  Download  Download
 All Measure Function  MX269024A-001
 1xEV-DO  EV-DO Forward Link Measurement
 Software
 MX269026A
 All Measure Function  MX269026A-001
 Power adjustment
 for Base station
 TRX Sweep Calibration  MX283087A
 Mobile WiMAX  Mobile WiMAX Measurement Software  MX269010A  Download  Download
 Mobile WiMAX IQproducer  MX269905A  Download  Download
 WLAN (IEEE 802.11a/b/g/n/j/p/ac)  WLAN (802.11) Measurement Software  MX269028A  Download  Download
 802.11ac (80 MHz) Measurement Software  MX269028A-001
 WLAN IQproducer  MX269911A  Download  Download
 802.11ac (80 MHz) Option  MX269911A-001
 WLAN (IEEE 802.11a/b/g/n)/
Bluetooth
 WLAN Test Software  MX283027A-001  Download  Download
 Bluetooth Test Software  MX283027A-002
 TDMA type (PHS, Digital LMR etc.)
 Vector Modulation Analysis Software  MX269017A  Download  Download
 TDMA type (PHS, ETC, DSRC,
Digital LMR etc.)
 TDMA IQproducer  MX269902A  Download  Download
 Analog Measurement
(FM/ΦM/AM)
 Analog Measurement Software  MX269018A  Download  Download
 New spurious tests, such as
 F3E
 Low Phase Noise Performance  MS2830A-066  Download
 Multi-Carrier signal output  Multi-Carrier IQproducer  MX269904A  Download  Download
 AMP power calibration
 measurements
   Standard function      Download
 Noise Figure Measurement  Noise Figure Measurement Function  MS2830A-017  Download  Download
 BER Measurement  BER Measurement Function  MS2830A-026  Download  Download
 Smart Meter  IEEE802.15.4g
 MR-FSK Measurement Solution
 —    Download
 WiSUN Alliance
 - PHY Conformance Test Solution
 (WiSUN Alliance members only)
 —  Contact us
 Wi-SUN Protocol Monitor  MX705110A    Download  Download
 Wi-SUN PHY Measurement Software  MX705010A    Download  Download
Options
 Hardware  MS2830A  Main Frame
 MS2830A-040  3.6 GHz Signal Analyzer
 MS2830A-041  6 GHz Signal Analyzer
 MS2830A-043  13.5 GHz Signal Analyzer
 MS2830A-001  Rubidium Reference Oscillator
 MS2830A-002  High Stability Reference Oscillator
 MS2830A-005  Analysis Bandwidth Extension to 31.25 MHz
 MS2830A-006  Analysis Bandwidth 10 MHz
 MS2830A-077  Analysis Bandwidth Extension to 62.5 MHz (Requires MS2830A-006, 005)
 MS2830A-078  Analysis Bandwidth Extension to 125 MHz (Requires MS2830A-006, 005, 077)
 MS2830A-008  Preamplifier
 MS2830A-010  Phase Noise Measurement Function
 MS2830A-011  2ndary HDD
 MS2830A-016  Precompliance EMI Function
 MS2830A-017  Noise Figure Measurement Function
 MS2830A-018  Audio Analyzer
 MS2830A-026  BER Measurement Function
 MS2830A-066  Low Phase Noise Performance
 MS2830A-020  3.6 GHz Vector Signal Generator
 MS2830A-021  6 GHz Vector Signal Generator
 MS2830A-022  Low Power Extension for Vector Signal Generator
 MS2830A-027  ARB Memory Upgrade 256 Msa for Vector Signal Generator
 MS2830A-028  AWGN
 MS2830A-029  Analog Function Extension for Vector Signal Generator
 MS2830A-088  3.6GHz Analog Signal Generator
 Software
 (Measurement software for
 Signal Analyzer)
 MX269010A  Mobile WiMAX Measurement Software
 MX269011A  W-CDMA/HSPA Downlink Measurement Software
 MX269012A  W-CDMA/HSPA Uplink Measurement Software
 MX269013A  GSM/EDGE Measurement Software
 MX269013A-001  EDGE Evolution Measurement Software
 MX269015A  TD-SCDMA Measurement Software
 MX269017A  Vector Modulation Analysis Software
 MX269018A  Analog Measurement Software
 MX269020A  LTE Downlink Measurement Software
 MX269020A-001  LTE-Advanced FDD Downlink Measurement Software
 MX269021A  LTE Uplink Measurement Software
 MX269021A-001  LTE-Advanced FDD Uplink Measurement Software
 MX269022A  LTE TDD Downlink Measurement Software
 MX269022A-001  LTE-Advanced TDD Downlink Measurement Software
 MX269023A  LTE TDD Uplink Measurement Software
 MX269023A-001  LTE-Advanced TDD Uplink Measurement Software
 MX269024A  CDMA2000 Forward Link Measurement Software
 MX269024A-001  All Measure Function
 MX269026A  EV-DO Forward Link Measurement Software
 MX269026A-001  All Measure Function
 MX269028A  WLAN (802.11) Measurement Software
 MX269028A-001  802.11ac (80 MHz) Measurement Software
 MX269030A  W-CDMA BS Measurement Software
 MX283027A  Wireless Network Device Test Software
 MX283027A-001  WLAN Test Software
 MX283027A-002  Bluetooth Test Software
 MX283087A  TRX Sweep Calibration
 Software
 (Software for waveform pattern
 generation for vector signal
 generator)
 MX269901A  HSDPA/HSUPA IQproducer
 MX269902A  TDMA IQproducer
 MX269904A  Multi-Carrier IQproducer
 MX269905A  Mobile WiMAX IQproducer
 MX269908A  LTE IQproducer
 MX269908A-001  LTE-Advanced FDD Option
 MX269910A  LTE TDD IQproducer
 MX269910A-001  LTE-Advanced TDD Option
 MX269911A  WLAN IQproducer
 MX269911A-001  802.11ac (80 MHz) Option
 MX269912A  TD-SCDMA IQproducer
 Software
 (Waveform pattern for
  vector signal generator)
 MX269970A  1xEV-DO Reverse Receiver Test Waveform Pattern
 Warranty service  MS2830A-ES210  2 years Extended Warranty Service
 MS2830A-ES310  3 years Extended Warranty Service
 MS2830A-ES510  5 years Extended Warranty Service
Drivers / Software

Software Download
   MS269xA/MS2830A firmware
   IQproducer (for Vector Signal Generator)
   Manual



Driver
   MS2690 CVI Driver Version 3.2.0
   MS269xA/MS2830A LabVIEW Driver Version 4.06.0

Library
VIDEOS
IoT: Smart Cities

IoT Smart Cities
Smart cities require a level of interactivity that demand the highest chipset, module and device performance. Learn how Anritsu test solutions ensure these designs work in the crowded RF spectrum associated with smart cities.

MS2830A-MicroWave-E-V2

MS2830A Microwave Signal Analyzer
The MS2830A is a spectrum analyzer, signal analyzer and signal generator with top-class measurement speed at medium-class price. It has best-of-class dynamic range (average noise level [DANL]: –153 dBm, third-order intermodulation distortion [TOI]: +15 dBm) and excellent ±0.3 dB (typ.) total level accuracy using unique level calibration technology.

MS2830A-non-microwave-E-v2

MS2830A Spectrum/Signal Analyzer
The MS2830A is a spectrum analyzer/signal analyzer with top-class measurement speed at medium-class price. It has best-of-class dynamic range (average noise level [DANL]: –153 dBm, third-order intermodulation distortion [TOI]: +15 dBm) and excellent ±0.3 dB (typ.) total level accuracy using unique level calibration technology.

ACLR-E-1.01-150203

How to Measure Adjacent Channel Leakage Power Ratio (ACLR)
The MS2830A is a spectrum analyzer/signal analyzer with top-class measurement speed at medium-class price. It has best-of-class dynamic range (average noise level [DANL]: –153 dBm, third-order intermodulation distortion [TOI]: +15 dBm) and excellent ±0.3 dB (typ.) total level accuracy using unique level calibration technology.

Low-Level-Signals-E-2.00-150203

How to Measure Low-Level Signals in the Presence of High-Level Signals
The MS2830A is a spectrum analyzer/signal analyzer with top-class measurement speed at medium-class price.

Power-Measurement-E-2.00-150203

Fast, Stable Power Measurements on Modulated Signals
The MS2830A is a spectrum analyzer/signal analyzer with top-class measurement speed at medium-class price.

AMAM-Measurement-E-2.01-150302

AM/AM Conversion Measurements Using Modulated Waveforms
MS269xA Series Signal Analyzers

MS2830A Spectrum Emission Mask Measurement

Anritsu - MS2830A Spectrum Emission Mask
This video introduces the MS2830A’s Spectrum Emission Mask function and its usage benefits, as well as walks the viewer through the setup and reading measurement results processes.

MS2830A Spurious Emission Measurement

MS2830A Spurious Emission Measurement
This video introduces the MS2830A’s Spurious Emission Measurement function and its usage benefits, as well as walks the viewer through the setup and reading measurement results processes.

Anritsu IoT Connected Car

Anritsu IoT Connected Car
Connected cars are becoming the most sophisticated mobile device in the IoT world. Learn how Anritsu test solutions help verify designs to ensure operation of these advanced systems, from automotive radar to infotainment systems.

Related Product
