MS2722C

Spectrum Master

MS2722C
This product has been discontinued Replacement Model(s) : MS2720T
Overview
Spectrum and Interference Analyzer Highlights
  • Measure: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Masks
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
  • Dynamic Range: > 104 dB in 1 Hz RBW
  • DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
  • Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
  • Frequency Accuracy: ± 25 ppb with GPS On
  • 1 Hz to 10 MHz Resolution Bandwidth (RBW)
  • Traces: Normal, Max Hold, Min Hold, Average, # of Averages
  • Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
  • Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
  • Limit Lines: up to 40 segments with one-button envelope creation
  • Trace Save-on-Event: crossing limit line or sweep complete
  • Sweep Modes: Fast, Performance, No FFT, burst detect

Anritsu's latest generation of handheld spectrum analyzers includes the MS2722C Spectrum Master. This represents the company's highest performance handheld spectrum analyzer from the MS272xC family. Exciting new features and options bring more value to the user over our previous generations:

  • Frequency Coverage - 9 kHz to 9 GHz
  • Broadband preamplifiers over the whole frequency range for increased sensitivity around 20 dB
  • Three Sweep Modes – with improved Sweep Speed - up to 100 times faster
  • Resolution Bandwidths from 1 Hz to 10 MHz
  • New triggering choices including hysteresis, hold-off, and delay
  • More zero-span capabilities including 10 MHz RBW & VBW
  • Enhanced Spectrum Analyzer GUI including large marker display choice
  • Choice of display options for readability – normal, black and white, night vision, high contrast
  • On-screen Interference Mapping as part of the Interference Analysis option
  • LTE Measurements up to 20 MHz
  • 30 MHz Wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any other wideband signal
  • Burst detect captures 200μs bursts the first time, every time

The Spectrum Master MS2722C features over 30 analyzers in one to meet virtually every measurement need. In addition to spectrum analysis a user can select optional capabilities and analyzers including:

  • High Accuracy Power Meter
  • Interference Analyzer
  • Channel Scanner
  • 140 MHz Zero-Span IF Output, 30 MHz bandwidth
  • GPS Receiver
  • Increase frequency accuracy, geo-tag data collection
  • Secure data operation
  • 3GPP Signal Analyzers
  • LTE, GSM/EDGE, W-CDMA/HSPA+, TD-SCDMA/HSDPA
  • 3GPP2 Signal Analyzers
  • CDMA2000 1X, CDMA2000 1xEV-DO
  • IEEE 802.16 Signal Analyzers
  • Fixed WiMAX, Mobile WiMAX

For post processing data collected on your instrument utilize Master Software Tools – a PC program included with the instrument. It provides powerful data analysis tools for spectrum clearing and interference monitoring. And the Remote Access Tool allows the user to see and control the instrument over a LAN connection.

Weighing about 8 pounds fully loaded, including a Li-Ion battery, the fully functional Spectrum Master MS2722C family of handheld spectrum analyzers are light enough to take anywhere, including up a tower.

Continuous frequency coverage from 9 kHz to 9 GHz gives the wireless professional the performance needed for the most demanding measurements. Whether your application is spectrum monitoring, hidden signal detection, RF and microwave signal measurements, microwave backhaul testing or cellular signal measurements, the Spectrum Master MS2722C gives you the tools you need to make the job easier and more productive.

Applications

Convenient operating procedures, high sensitivity, excellent repeatability and exceptional performance enable the MS2722C to simplify measurements on wireless systems for easy verification of system compliance. Typical applications include:

  • Transmitter Spectrum Analysis - occupied bandwidth, channel power, adjacent channel power ratio and modulation
  • Received Signal Analysis - location and identification of in-band interference and out-of-band spurious signals and spectral masks
  • Signal Strength Mapping - to determine the most suitable location for antennas, base stations and repeaters
  • Field analysis of 3G signals – fast sweep speed, field-swappable battery, smart measurements and daylight-viewable display make the MS2722C an ideal choice for the challenge of rugged environments
  • Broadcast measurement AM & FM analog and IBOC proofing measurements
  • Interference mitigation in many diverse situations including wireless patient telemetry in hospitals
  • Burst detect captures 200 μs bursts the first time, every time
Library
VIDEOS
MA8100A Tutorial – Generating 3D Building Maps

MA8100A Tutorial – Generating 3D Building Maps
Step by step instructions for creating and generating 3D building maps with floorplans

MA8100A Installation Tutorial

MA8100A Tutorial
Step by step installation instructions. NEON Signal Mapper, a 3D in-building solution.

NEON Indoor Mapping with Anritsu LMR Master

NEON Indoor Mapping
TRX NEON Signal Mapper and command software shows mapping in real time

Anritsu MA8100A TRX NEON Signal Mapper

TRX NEON Signal Mapper
Test when GPS is not available, deliver real-time 3D location, for indoor measurement applications

Bug Hunting with Anritsu's Spectrum Master

Bug Hunting with Anritsu's Spectrum Master
Finding hidden transmitters and bugs can be difficult. You need the right tools for the job.

Burst Detect

Burst Detect
Watch this video to learn more about the new Burst Detect mode available on the Anritsu Spectrum Master MS272xC

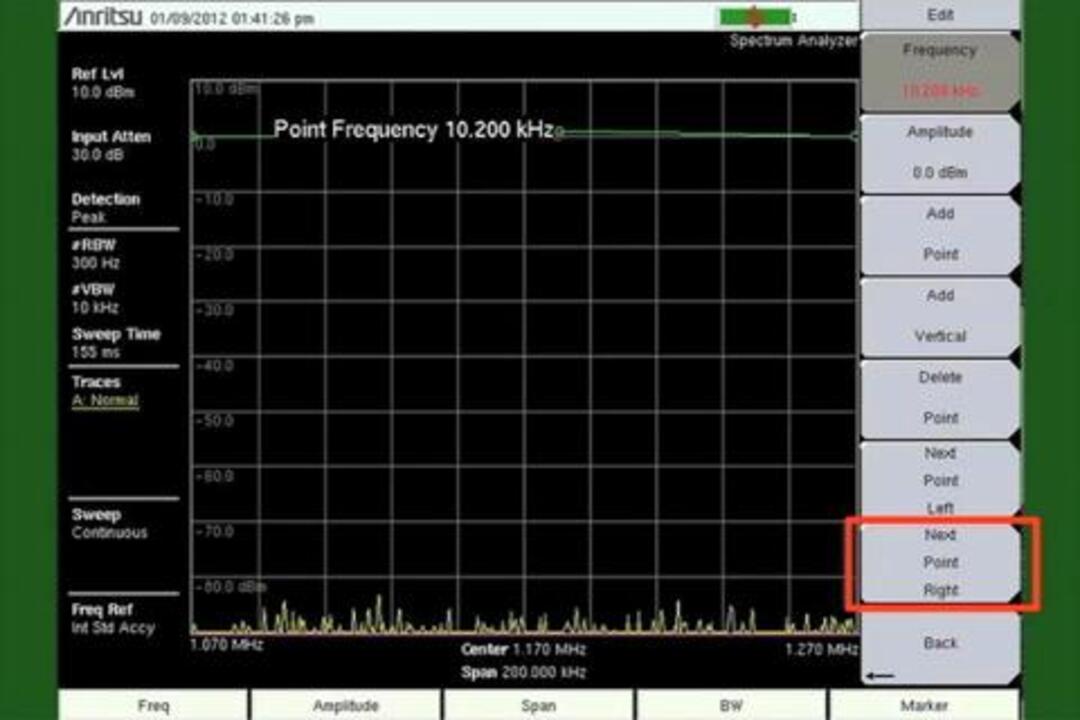

Creating Complex Limit Lines From Standards Documents
