Measurement Components and Accessories

RF & Microwave Components Catalog

Related Links::

Anritsu's high directivity bridges and autotesters set the standard for reflection measurements.

The Calibration and Verification kits contain all the precision components and tools required to calibrate your VNA and VNMS for 12-term error-corrected measurements in the connector style of your choice.

The power dividers are 3-resistor symmetrical designs with excellent amplitude and phase tracking. The power splitters are 2-resistor designs, used to accurately split signals for ratio measurements.

Also featured are broadband microwave limiters, which provide the widest frequency range available in a limiter.

Measurement Components and Accessories

Model Number / Name			Frequency
	PSN50 High Accuracy Power Sensor (Average)		50 MHz — 6 GHz
	MN4765A O/E Calibration Module		40 MHz — 65 GHz
	18/19 Series Airlines		2 GHz — 40 GHz
	97A50 SWR Autotesters		10 MHz — 18 GHz
	560-97 Series SWR Autotesters		10 MHz to 18 GHz
	560-98 Series SWR Autotesters		10 MHz to 50 GHz
	560-97N Series SWR Autotesters		10 MHz — 18 GHz
	87 Series SWR Bridges		2 — 18 GHz
	11 Series Power Dividers		DC — 3000 MHz
	1 Series Limiters		1 MHz — 26.5 GHz
	12 Series Matching Pads		DC — 3000 MHz
	22 Series Open Shorts		DC — 50 GHz

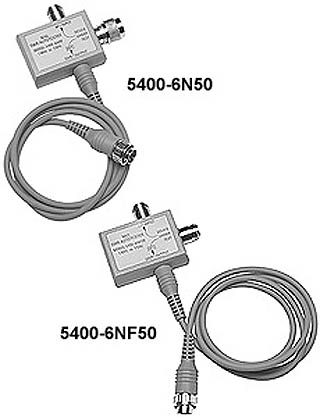

	5400-71/560-7 Series Microwave Detectors		1 MHz — 50 GHz

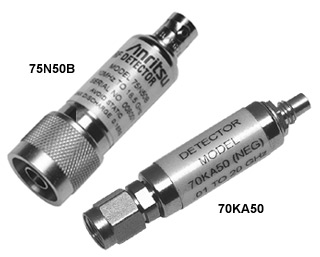

	70/75 Series Microwave Detectors		100 kHz — 50 GHz
	K240 Series Power Dividers		DC — 65 GHz
	K241 / V241 Series Power Splitters		DC — 65 GHz
	V240C Power Dividers		DC — 65 GHz

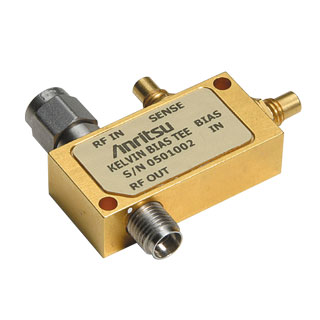

	K252/V252 Kelvin Bias Tee		DC — 65 GHz
	V255 Gen II Ultra Wideband Bias Tee		50 KHz — 65 GHz
	V265 DC Block		50 KHz — 65 GHz
	3680 Series Universal Test Fixtures		DC — 60 GHz
	3650 Series SMA/3.5 mm Calibration Kit		70 KHz — 26.5 GHz

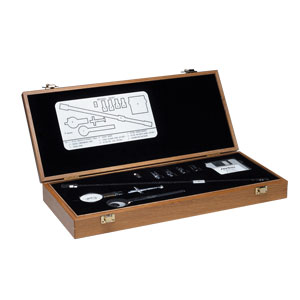

	3651 Series GPC-7 Calibration Kit		70 KHz — 18 GHz

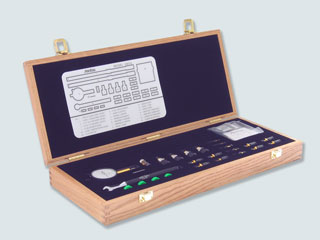

	3652 Series K Connector Calibration Kit		70 KHz — 40 GHz
	3653 Series Type N Calibration Kit		70 KHz — 18 GHz
	3654 Series V Connector Calibration Kit		70 KHz — 70 GHz
	3655 Series Waveguide Calibration Kit		60.5 GHz — 112 GHz

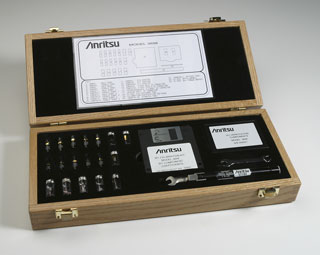

	3656 Series W1 Calibration kit		70 KHz — 110 GHz
	3658 Series 2-Port Automatic Calibrator		40 MHz — 40 GHz
	36585 Series Precision AutoCal^™		70 kHz — 70 GHz

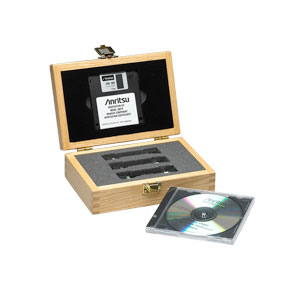

	366X Series Verification Kits		70 KHz — 70 GHz
